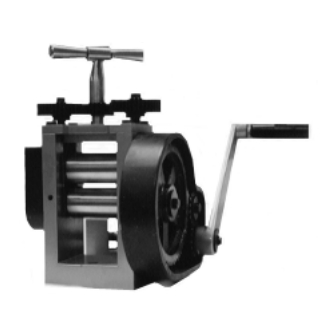

MINI ROLLING MILL
Model 2458
ASSEMBLY AND OPERATING INSTRUCTIONS
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http//www.harborfreight.com
®
Copyright
2002 by Harbor Freight Tools
. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Harbor Freight Tools CEN-TECH 2458
Summary of Contents for Harbor Freight Tools CEN-TECH 2458
- Page 1 2002 by Harbor Freight Tools . All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. For technical questions, please call 1-800-444-3353.
- Page 2 Brought To You By Augusta Flint PRODUCT SPECIFICATIONS Item Description Maimum Sheet Capacity 7/32” (5 MM) Thickness Mini Rolling Mill’s Used for rolling and forming jewelry items Application consisting of soft metals, (i.e.,gold, silver, aluminum, etc.). Overall Dimensions 13-3/4” L 9” W 12-1/4” H Roller Dimensions 1.675”...
- Page 3 REPLACEMENT PARTS AND ACCESSORIES: When servicing, use only identi- cal replacement parts. Only use accessories intended for use with this product. Approved accessories are available from Harbor Freight Tools. MAINTAIN THIS PRODUCT WITH CARE. Keep this product clean and dry for better and safer performance.
- Page 4 Brought To You By Augusta Flint WHEN MOVING THE MINI ROLLING MILL, DO NOT ATTEMPT TO LIFT THE MACHINE BY ITS GEAR HANDLE (part #7) AS THE HANDLE CAN BE PULLED OUT FROM THE ROLLING MILL, RESULTING IN PERSONAL INJURY. (See Figure B, next page.) MAKE SURE THE MINI ROLLING MILL IS SECURELY MOUNTED ON A FLAT, LEVEL, STURDY, WORKBENCH CAPABLE OF SUPPORTING THE WEIGHT OF THE MINI ROLLING MILL, TOOLS, ACCESSORIES, AND WORKPIECE.
- Page 5 When unpacking, check to make sure all the parts shown on the Parts List (page 7) are included. If any parts are missing or broken, please call Harbor Freight Tools at the number shown on the cover of this manual as soon as possible.
- Page 6 Brought To You By Augusta Flint Using a drill and 3/8” drill bit (not provided), drill the two previously marked holes completely through the top of the workbench. Place the Mini Rolling Mill back upon the workbench, and align the two 3/8” mounting holes on the Base Body (part #1) with the two previously drilled holes in the workbench.
-
Page 7: Parts List
Brought To You By Augusta Flint INSPECTION, MAINTENANCE, AND CLEANING BEFORE EACH USE, inspect the general condition of the Mini Rolling Mill. Check for loose screws, misalignment or binding of moving parts, and any other condition that may affect its safe operation. If a problem occurs, have the Mini Rolling Mill corrected before further use. - Page 8 Brought To You By Augusta Flint ASSEMBLY DIAGRAM NOTE: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. SKU 2458 PAGE 8...
