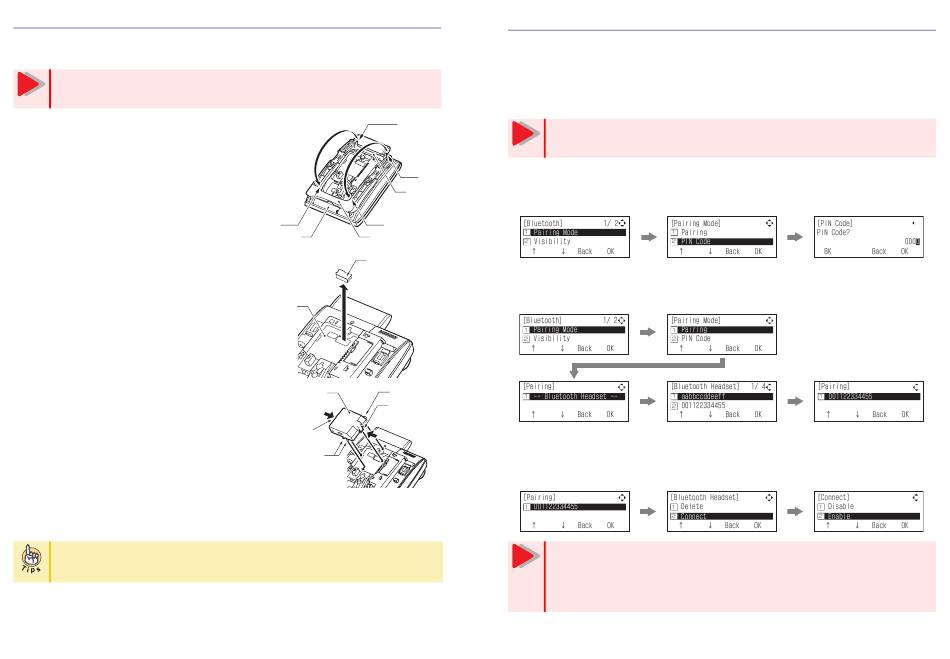

Mounting Procedure
Follow the steps below to attach the IP3NA-BHA ADAPTER to the bottom-unit connecter on the back of
the multifunctional terminal. If the terminal is furnished with various cables, remove these cables first.
・Only one IP3NA-BHA ADAPTER can be mounted per telephone.
Caution
・The IP3NA-BHA ADAPTER cannot be mounted on the economy multifunctional terminal (IP3NA-2TH
TEL ( )) and the cordless terminal (IP3NA-12TXH(BT) TEL ( )).
1
Turn over the terminal.
2
Lower the tilt legs to the first level.
3
Release lugs a and b on the stopper
from grooves A and B in the tilt legs
and widen the tilt legs.
4
Remove the connecter cover (rubber)
from the bottom unit connector.
5
Position the IP3NA-BHA ADAPTER
with its lower claws, and then attach it
to the terminal connecter while pushing
the right and left claws.
The upper claw clicks.
6
Replace the tilt legs in original position.
The installation of the IP3NA-BHA ADAPTER is complete.
Removing the IP3NA-BHA ADAPTER
Lift the IP3NA-BHA ADAPTER from the upper claw while pressing the upper claw and the right and left
claws.
2
b
a
Stopper
B
A
Multifunctional
Tilt leg
terminal
Connecter cover
Multifunctional
terminal
Upper claw
IP3NA-BHA ADAPTER
Right claw
Left claw
Lower claws
®
Pairing a Bluetooth
Device with a Multifunctional Terminal with Each Other
®
Call up the Bluetooth
screen from a multifunctional terminal menu and register the Bluetooth
with the IP3NA-BHA ADAPTER.
For more details on working with the menu, refer to the manual that comes with your system.
®
< Calling up the Bluetooth
Device Setup Screen >
®
Call up the Bluetooth
screen using one of the following methods:
The following operation is an example. Screen display may differ depending on your system or the
Caution
telephone connected.
Press menu keys > [5. Peripherals] > [1. Bluetooth]
<Entering a PIN Code>
®
When pairing a Bluetooth
device that has a PIN Code other than 0000, enter a string of 4 to 16 digits to
suit that device.
<Pairing>
®
Up to 8 Bluetooth
devices are located around the IP3NA-BHA ADAPTER. Among those, select a
device you want to pair with the unit.
It takes approximately one
minute for locating.
<Connecting to the Paired Device>
®
Enable the Bluetooth
device. Select [2. Enable] in the connection screen.
®
・After pairing a Bluetooth
device, be sure to configure its connection to enable it. If connection setting
Caution
®
is not done, the Bluetooth
device cannot be used.
®
・To pair your Bluetooth
headset in use with the IP3NA-BHA ADAPTER, disconnect the headset from
®
the Bluetooth
device or cancel the standby state and then connect the headset to the IP3NA-BHA
ADAPTER UNIT. Do not connect your Bluetooth
®
UNIT to any other Bluetooth
devices, as this may disable call origination and termination.
®
headset
®
headset paired with the IP3NA-BHA ADAPTER
3
