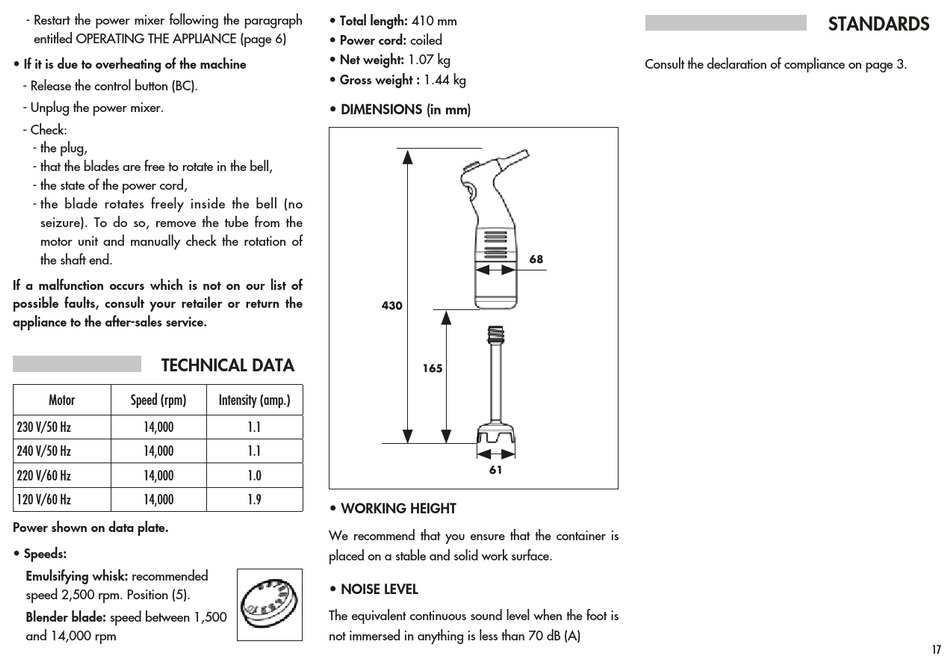

Technical Data - Robot Coupe MicroMix Manual

- Restart the power mixer following the paragraph
entitled OPERATING THE APPLIANCE (page 6)
• If it is due to overheating of the machine
- Release the control button (BC).
- Unplug the power mixer.
- Check:
- the plug,
- that the blades are free to rotate in the bell,
- the state of the power cord,
- the blade rotates freely inside the bell (no
seizure). To do so, remove the tube from the
motor unit and manually check the rotation of
the shaft end.
If a malfunction occurs which is not on our list of
possible faults, consult your retailer or return the
appliance to the after-sales service.

TECHNICaL DaTa

Motor Speed (rpm)
230 V/50 Hz 14,000
240 V/50 Hz 14,000
220 V/60 Hz 14,000
120 V/60 Hz 14,000
Power shown on data plate.
• speeds:
Emulsifying whisk: recommended
speed 2,500 rpm. Position (5).
Blender blade: speed between 1,500
and 14,000 rpm
• Total length: 410 mm
• Power cord: coiled
• Net weight: 1.07 kg
• Gross weight : 1.44 kg
• DImENsIONs (in mm)
430
Intensity (amp.)
1.1
1.1
1.0
1.9
• WOrKING HEIGHT
We recommend that you ensure that the container is
placed on a stable and solid work surface.
• NOIsE LEVEL
The equivalent continuous sound level when the foot is
not immersed in anything is less than 70 dB (A)
68
165
61
Consult the declaration of compliance on page 3.
sTaNDarDs
17
