Tektronix 2A63 Instrument Reference Book page 15

B. Be prepared to explain the operation of the AC-
stabilized circuit, and the procedure called out
in the Type 63 manual (070-266) for setting
DC balance. With a shileded lead and good DC
balance (save the balancing and DC-coupling
demo until after a few minutes' warm-up), a
waveform like Fig. 3 at 1 mv /cm will be easy
as pie.
-
-- ---
r--
-
I--;
i--_
1--..
,·
,:
=L.-
J...-
f---
j_.-
-

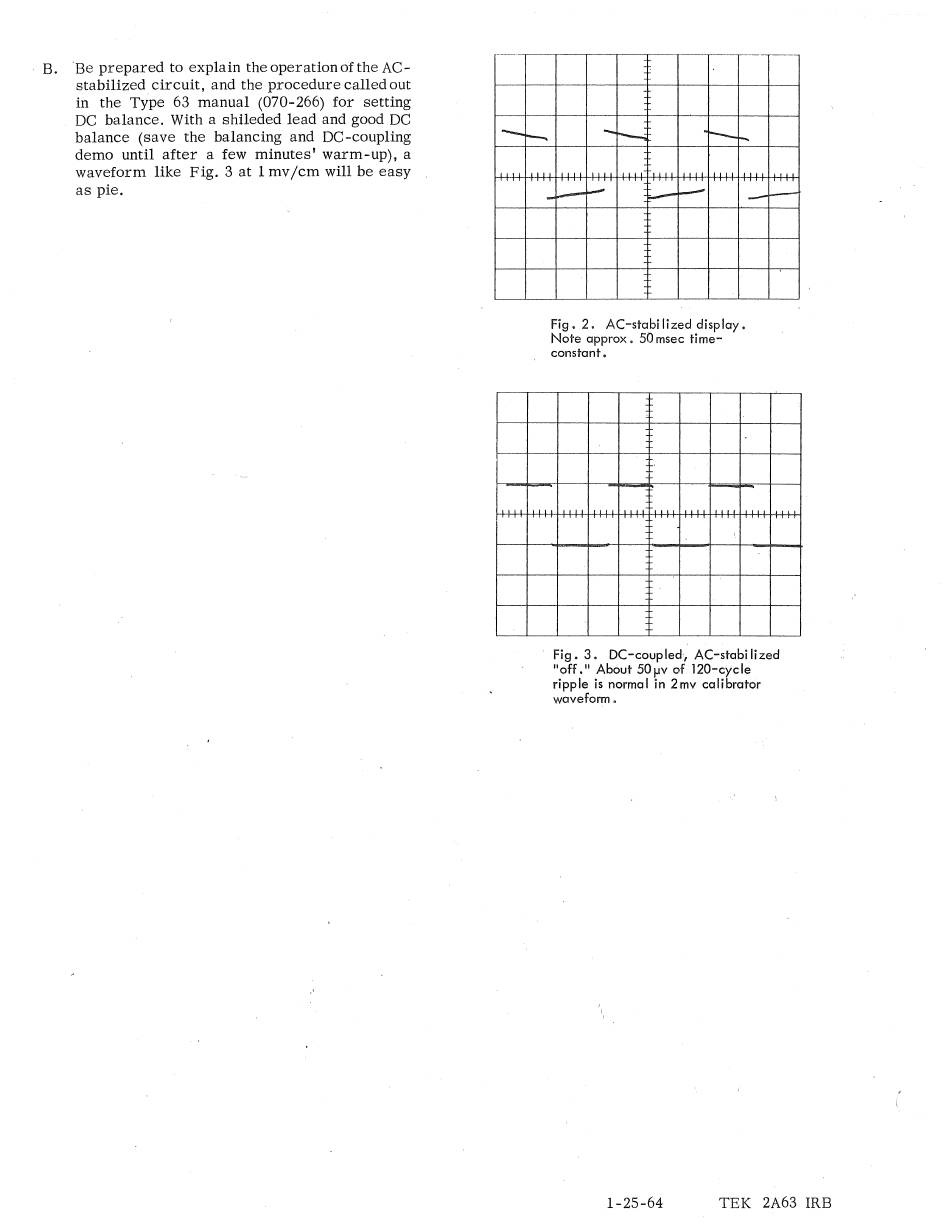

Fig. 2. AC-stabi Ii zed display.
Note approx. 50 msec time-
constant.
Fig. 3. DC-coupled, AC-stabi
Ii
zed
"off." About 50µv of 120-cycle
ripple is normal in 2mv calibrator
waveform.
1-25-64 TEK 2A63 IRB
