- Page 1 Dornbracht Sensory Sky Planning guide Positioning recommendations Components Zones of protection Pre-wall installation Installation Data and standards Product overview Checklists Culturing Life...
- Page 2 90 mm (center to center) and must not be less. The distance between the maximum height of the tallest user and underside of the rain panel should be at least 400 mm. Dornbracht Sensory Sky...
- Page 3 Data and standards tyPes of rain Components Product overview Cold-water mist spray Zones of protection Checklists Shower zone lights Pre-wall installation Ambiance lights Types of rain Rain curtain Body spray Head spray Dornbracht Sensory Sky Planning guide Page 3/38...
- Page 4 Positioning Installation Application recommendations Data and standards Types of rain Components Product overview cold-water mist sPray Zones of protection Checklists Shower zone lights Pre-wall installation Ambiance lights Cold-water mist spray Dornbracht Sensory Sky Planning guide Page 4/38...
- Page 5 Positioning Installation Application recommendations Data and standards Types of rain Components Product overview Cold-water mist spray Zones of protection Checklists shower zone lights Pre-wall installation Ambiance lights Shower zone lights Dornbracht Sensory Sky Planning guide Page 5/38...
- Page 6 Positioning Installation Application recommendations Data and standards Types of rain Components Product overview Cold-water mist spray Zones of protection Checklists Shower zone lights Pre-wall installation ambiance lights Ambiance lights Dornbracht Sensory Sky Planning guide Page 6/38...

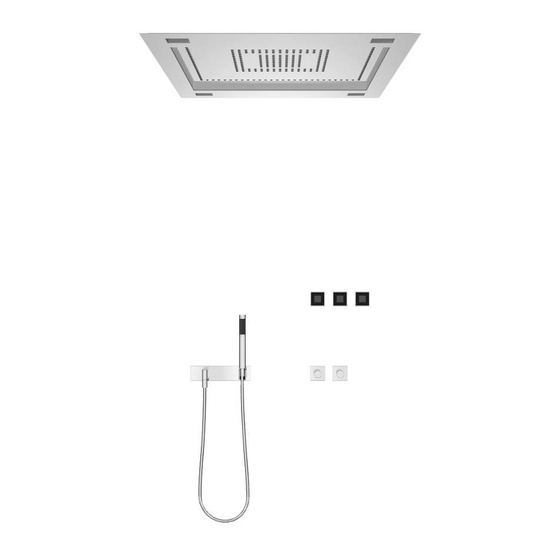

- Page 7 Zones of protection Checklists Pre-wall installation exposed trim parts installation Rain panel control and distribution unit + shower board + lighting frame Control element display switch Hand shower set + eVALVe Control element rotary knob Dornbracht Sensory Sky Planning guide Page 7/38...
- Page 8 Product overview Peripheral equipment Zones of protection Checklists Pre-wall installation Concealed rough parts installation Ceiling installation enclosure for rain panel Concealed rough parts for electronic control elements Concealed rough parts for eVALVe Dornbracht Sensory Sky Planning guide Page 8/38...
-
Page 9: Peripheral Equipment
– The fragrance modules and the power supply have to be installed separate from each other. (Distance: min. 1 m - the power supply cables can be extended on site to max. 2 m). The fragrance modules must not be installed directly above the electrical installation. Dornbracht Sensory Sky Planning guide... - Page 10 – The protection rating of the individual components has to be noted during installation and is only valid when installed correctly. – Control elements, hand shower set and rain panel are operated through safety extra-low voltage (SeLV) and can be installed inside safety zone 1. Dornbracht Sensory Sky Planning guide Page 10/38...
- Page 11 The proper installation of a pre-wall system enables compliance with on-site requirements with fire protection, heat and noise insulation. Pre-wall installation systems are available from various manufacturers. Dornbracht Sensory Sky Planning guide...
- Page 12 There is no means of attachment for ceiling installation included among the items supplied. The structural engineer must choose the means of attachment for the ceiling construction. M8 threaded bolts are used for connection to the ceiling (min. strength: 2000 N). Dornbracht Sensory Sky Planning guide...
-
Page 13: Water Installation
- With a circulation pipe, the minimum distance to the eVALVe of the hand shower set must be 900 mm. - The nominal diameter (DN 20) has to be adhered to for both pipes and fittings. see Planning information Dornbracht Sensory Sky Planning guide... - Page 14 Cutouts / anchoring points Trim installation Water installation - schema eN 1717 max. 60˚ C Installation example according to DIN eN 1717. Please conform to national statutory regulations, where different. legend (see page 15) Dornbracht Sensory Sky Planning guide Page 14/38...
- Page 15 Pressure reducing valve EN 1717 EN 1717 Filter Manometer EN 1717 EN 1717 Backflow preventer Type BA Boiler according to eN 1717 EN 1717 water installation - schematic page 14 EN 1717 EN 1717 Dornbracht Sensory Sky Planning guide Page 15/38...
- Page 16 The local network has to be behind a router with firewall. – electrical installation must be carried out by a professional specialist, in accordance with VDe 0100. – Please conform to national statutory regulations, where different. see Planning information Dornbracht Sensory Sky Planning guide Page 16/38...
- Page 17 = 230 V AC line (NYM 3 x 1,5 mm²) = 12 V line = Signal line fragrance module = equipotential bonding 4 mm² = Hot water supply = Fragrance tube = Cold water supply = ethernet cable = Terminator Dornbracht Sensory Sky Planning guide Page 17/38...
- Page 18 Max. distance between mounting bracket of the ceiling installation enclosure for rain panel and the metal frame of the ceiling structure: 140 mm (center-to-center). No strain must be transferred from the ceiling structure to ceiling installation enclosure for rain panel. Dornbracht Sensory Sky Planning guide...
- Page 19 – Any strain from the panelling has to be carried by the metal frame of the dry wall. – The thickness of the wall covering (tile, stone etc.) in front of the dry wall panelling (gypsum cardboard) around the rough parts for electronic control elements is min. 7 - max 35 mm. Dornbracht Sensory Sky Planning guide...
- Page 20 – The concealed rough parts for electronic control elements require a 56 mm in the dry wall panelling. Ø The concealed rough parts for electronic control elements are covered by tiles/stone and require a hole of 42 x 42 mm. Dornbracht Sensory Sky Planning guide Page 20/38...
-
Page 21: Trim Installation
Concealed rough parts for Zones of protection Checklists Water installation - schema electronic control elements Pre-wall installation electrical installation Cutouts / anchoring points trim installation Trim installation 10 mm gap around the edge. Dornbracht Sensory Sky Planning guide Page 21/38... -
Page 22: Planning Information
Flushing has to occur prior to installing the trim installation and initial start-up. application area The products are not meant to be used outside. Consult with Dornbracht if you plan to use the product in steam, chlorine or saline enviroments. water hardness Recommended water hardness: 5-6 °e. - Page 23 The installation of the connecting cable and concealed rough parts for electronic control elements has to occur at the same time that the pre-wall is closed. Combine the devices only with original Dornbracht components. Space required for all components in the sub-distribution board: approx.
-
Page 24: Technical Data
Rough-in depth rain panel, control elements, concealed Input voltage 230 V AC rough parts for eVALVe see page 18 Input frequency 50-60 Hz Maximum power consumption 30,6 W (for 3 modules) Dornbracht Sensory Sky Planning guide Page 24/38... - Page 25 (hand shower set) 4 mm² A pressure reducing valve and main filter to be provided by the customer (installed after the water meter). Dornbracht Sensory Sky Planning guide Page 25/38...
- Page 26 Platinum matt complete hand shower set with cover plate (06) electronic control elements platinum matte (06) Additional downloads: installation instructions sensory sKy exposed trim parts (41 260 979) installation instructions sensory sKy concealed rough parts (35 260 970 90) Dornbracht Sensory Sky Planning guide Page 26/38...
- Page 27 - AC Filter 230 V, 6A - DC Filter 12V min.110 Additional downloads: installation instructions sensory sKy exposed trim parts (41 260 979) installation instructions sensory sKy concealed rough parts (35 260 970 90) Dornbracht Sensory Sky Planning guide Page 27/38...
- Page 28 Shower board exposed trim parts Lighting frame exposed trim parts Additional downloads: installation instructions sensory sKy exposed trim parts (41 260 979) installation instructions sensory sKy concealed rough parts (35 260 970 90) Dornbracht Sensory Sky Planning guide Page 28/38...
- Page 29 • • •• • • •• • • •• • •• •• • •• • • •• • • •• • •• •• • •• • • •• • • •• • Additional downloads: installation instructions sensory sKy exposed trim parts (41 260 979) installation instructions sensory sKy concealed rough parts (35 260 970 90) Dornbracht Sensory Sky Planning guide Page 29/38...
-
Page 30: Control Elements
Control element display switch exposed trim parts Additional downloads: installation instructions sensory sKy exposed trim parts (41 260 979) installation instructions sensory sKy concealed rough parts (35 260 970 90) Dornbracht Sensory Sky Planning guide Page 30/38... - Page 31 - Control module fragrance, 110 x 50 x 28 mm, to be mounted on DIN rail - IP 54 - Terminator Additional downloads: installation instructions sensory sKy exposed trim parts (41 260 979) installation instructions sensory sKy concealed rough parts (35 260 970 90) Dornbracht Sensory Sky Planning guide Page 31/38...
- Page 32 Recommended water hardness: 5 - 6 °e Flow pressure during operation 2.5 - 4.0 bar Recommended flow pressure during operation 3.0 bar System partner / Installer Project ........................Date: Signature System partner / Installer ........................Dornbracht Sensory Sky Planning guide Page 32/38...
- Page 33 Calculate optimum floor drain sizing, connected rating 1.5 l/s., drainage pipe DN 75 (calculated according to e.g. DIN 1986) System partner / Installer Project ........................Date: Signature System partner / Installer ........................Dornbracht Sensory Sky Planning guide Page 33/38...
- Page 34 - equipotential bonding (4 mm²) for concealed rough part eVALVe (hand shower set) electrical installation in accordance with VDe 0100. Please conform to national statutory regulations, where different System partner / Installer Project ........................Date: Signature System partner / Installer ........................Dornbracht Sensory Sky Planning guide Page 34/38...
- Page 35 Filter for hot and cold water installed Pressure reducing valve and main filter installed after the water meter System partner / Installer Project ........................Date: Signature System partner / Installer ........................Dornbracht Sensory Sky Planning guide Page 35/38...
- Page 36 - equipotential bonding (4 mm²) for concealed rough part eVALVe (hand shower set) electrical installation in accordance with VDe 0100. Please conform to national statutory regulations, where different System partner / Installer Project ........................Date: Signature System partner / Installer ........................Dornbracht Sensory Sky Planning guide Page 36/38...
- Page 37 Instructed owner/ operator in use of SeNSORY SKY Handed over quickinfo and user manual Confirmed faultless operation with signature System partner / Installer / Operator Project ........................Date: Signature System partner / Installer / Operator ........................Dornbracht Sensory Sky Planning guide Page 37/38...
- Page 38 OM, PK, QA, SA, SY, YE Naji Kanafani & Fils Phone +961 1 307 400 aloys f. dornbracht gmbh & co. Kg armaturenfabrik, Köbbingser Mühle 6, D-58640 Iserlohn Phone +49 ( 0 ) 2371 433-0, Fax +49 ( 0 ) 2371 433-232, mail@dornbracht.de, dornbracht.com...
