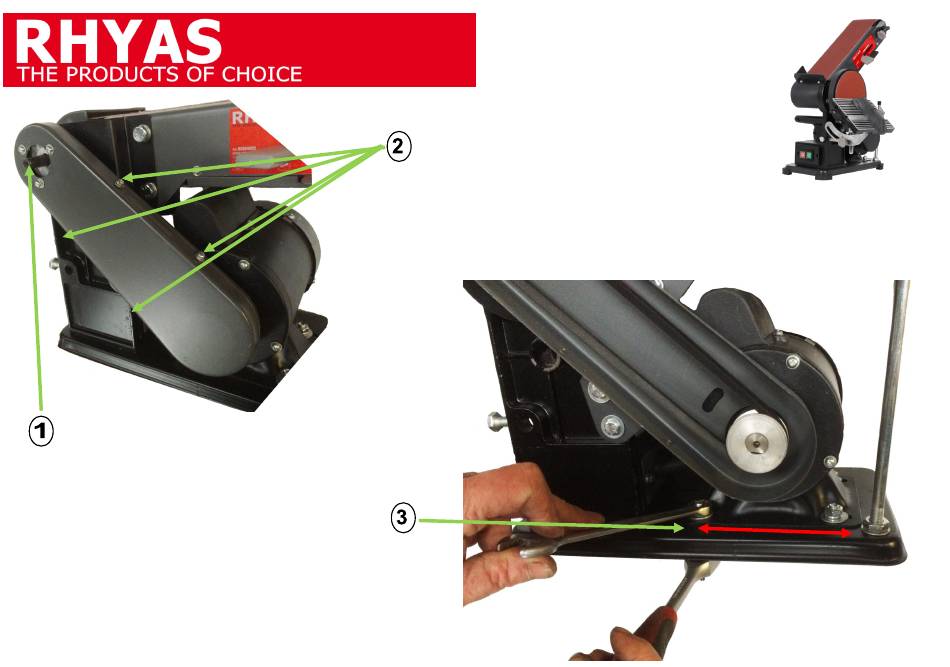

HOW TO ADJUST AND OR CHANGE DRIVE BELT ON BGM4005
REMOVE THE 4 DRIVE BELT COVER SCREWS
REMOVE ROUND SANDING PLATE
SLACKEN THE 4 MOTOR MOUNTING BOLTS, THIS WILL ALLOW THE
MOTOR TO MOVE BACK AND FORTH. AT THIS STAGE BY SLACKENING
THE BELT IT CAN BE CHANGED IF REQUIRED.
TENSION THE BELT BY SLIDING THE MOTOR AND TIGHTENING THE
MOUNTING BOLTS.
(CAUTION - DO NOT OVER TENSION THE BELT AS THIS MAY PUT TOO
MUCH PRESSURE ON THE DRIVE BEARINGS).
