Toyota Scion tC 2005 Wiring Diagram page 38

O 2 Outer Rear View Mirror (LH)
O 3 Outer Rear View Mirror (RH)
P 9 Power Window Master SW
P 10 Power Window Regulator Motor (Front LH)
P 11 Power Window Regulator Motor (Front RH)
P 12 Power Window SW (Front Passenger's Side)
P 13 Pretensioner (LH)
P 14 Pretensioner (RH)
R 4 Rear Combination Lamp (LH)
R 5 Rear Combination Lamp (RH)
R 6 Rear Window Defogger
R 7 Room Lamp (Center)
R 8 Room Lamp (Left Quarter)

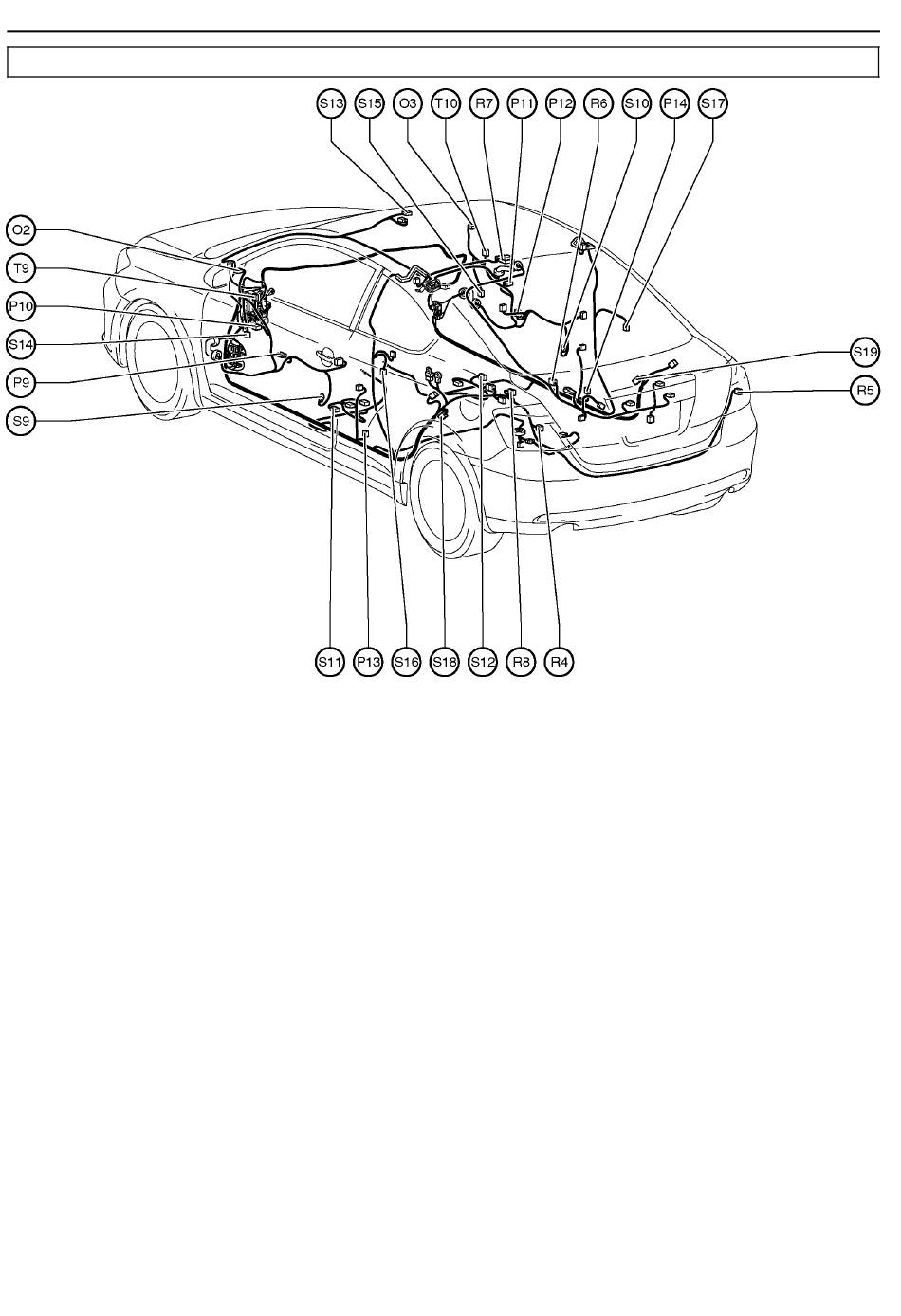

Position of Parts in Body
S 9 Side Airbag Sensor (LH)
S 10 Side Airbag Sensor (RH)
S 11 Side Airbag Squib (LH)
S 12 Side Airbag Squib (RH)
S 13 Sliding Roof Control ECU
S 14 Speaker (Front Door LH)
S 15 Speaker (Front Door RH)
S 16 Speaker (Rear LH)
S 17 Speaker (Rear RH)
S 18 Speed Sensor (Rear LH)
S 19 Speed Sensor (Rear RH)
T 9 Tweeter (LH)
T 10 Tweeter (RH)
2005 SCION tC (EWD572U)
