Wireless Field Level Network Transceiver (FLNX)
(Version 1.x)
Channel
Network I.D.

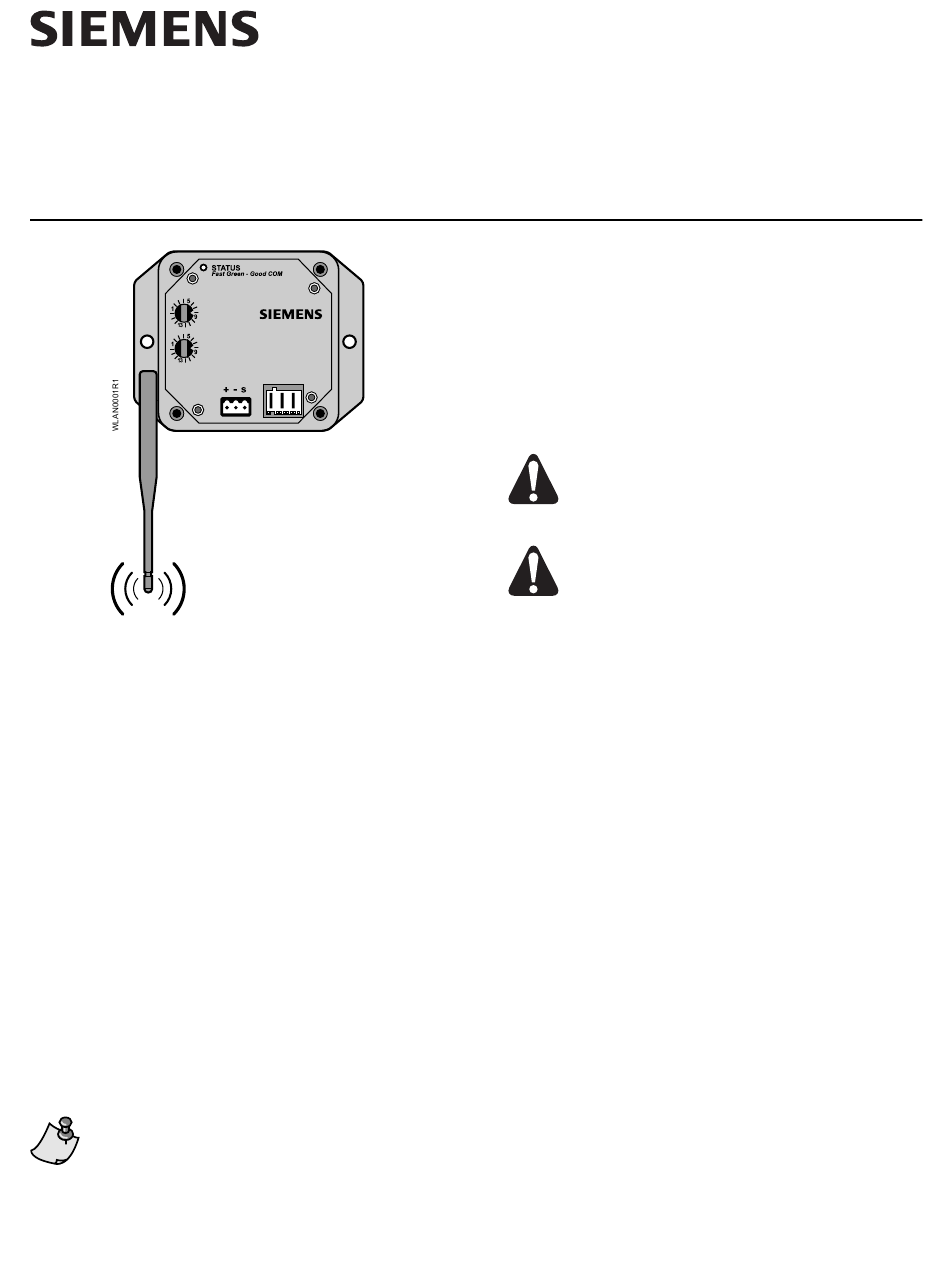

Figure 1. Wireless Field Level Network Transceiver
(FLNX).

Product Description

The Wireless Field Level Network Transceiver
(FLNX) is mounted at or near the FLN device
and is powered by 24 Vac. The antenna can be
mounted directly to the radio or mounted remotely for
installations where the location of the FLNX causes
the antenna to be shielded—for example, when the
FLNX is mounted inside a TEC enclosure.

Product Numbers

563-004
Wireless Field Level
Network Transceiver (FLNX)
(Version 1.x)
563-007
Direct Mount Antenna
563-008
Remote Mount Antenna
Transceivers do not come with antennas.
Antennas must be ordered separately.
Item Number: 563-002, Rev. BA
24 Vac 1.2VA
E H N
F L N
Installation Instructions

Accessories

563-027
Pre-terminated Cable Kit
(Includes two 14" cables:
power and communication)
Recommended for factory mounting

Warning/Caution Notations

WARNING:
Personal injury/loss of life may occur if you
do not follow the procedures as specified.
CAUTION:
Equipment damage or loss of data may
occur if you do not follow the procedures
as specified.

Expected Installation Time

10 minutes

Required Tools and Materials

Electro-static discharge wrist strap
Small flat-blade screwdriver
Cordless drill/driver set

Prerequisites

All wiring must conform to NEC and local
codes and regulations.
24 Vac Class II power source is available.
Metal Oxide Varistors (MOVs) must be used
for TECs that switch high voltage devices. For
details, see the FSN for Terminal Equipment
Controllers (TECs) Failing when Switching
High Voltage Powered Devices.
Any application specific hardware or device
is installed.
Document No. 563-002
January 12, 2007
Page 1 of 4
