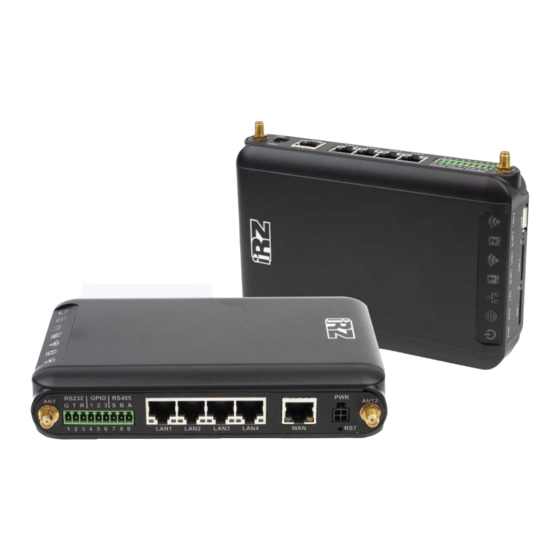

- Page 1 USER GUIDE iRZ GSM/3G/CDMA/LTE Routers: RU41, RU41c, RU41u, RL41, RL41c, RL41l, RC41...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ........................4 1.1. Document Description ....................4 1.2. Terms and Abbreviations ................... 5 2. Information on Device ....................... 6 2.1. Purpose ........................6 2.2. Communication Standards ..................6 2.3. Hardware Specifications .................... 6 2.4. Physical Specifications ....................7 2.5. - Page 3 List of Tables Table 2.1 Communication Standards* .................. 6 Table 2.2 Basic Specifications* ..................... 6 Table 2.3 Physical Specifications ..................7 Table 3.1 Router Indication ....................12 Table 3.2 Power Connector Pin Assignment ..............13 Table 3.3 Interface Connector Pin Assignment ..............13 Table 3.4 Ethernet Connector Pin Assignment ..............
-
Page 4: Introduction
1.1. Document Description This document provides explanatory information on technical specifications of iRZ routers of R4 series (RU41, RU41c, RU41u, RL41, RL41c, RL41l, RC41), as well as information on express setting of the routers. Document Version (updates) Issue Date 17/04/2015 1.1 (Figures updated) -
Page 5: Terms And Abbreviations
1.2. Terms and Abbreviations Router – iRZ router. 3G – General name for a set of standards describing the operation in UMTS and GSM networks like GPRS, EDGE, HSPA. Server – This term may be used to describe: the server part of a software package used by a computer system,... -
Page 6: Information On Device
2.2. Communication Standards Table 2.1 Communication Standards* Model GPRS/EDGE HSDPA/HSUPA HSPA+ UMTS 1×EV-DO – – – RU41 – – – RU41u – – RU41c – – RL41 – –... -
Page 7: Physical Specifications
2.4. Physical Specifications Table 2.3 Physical Specifications Type Characteristic Max. 162×110×37 mm (L × W × H) Overall dimensions (without connectors) Max. 162 × 119 × 37 mm (L × W × H) Overall dimensions (including connectors) Weight Max. 350 g -30°С... -
Page 8: Safety Precautions
2.7. Safety Precautions Limitations to the router use in proximity of other electronic devices: Switch off the router in hospitals or in proximity of medical equipment (for example, cardiac pacemakers, hearing aid devices) as it may interfere with medical equipment. Switch off the router in aircraft and take measures to prevent its accidental switching on. -
Page 9: Figure 2.1 R4 Router Functional Diagram
Antennas SMA connector Router Communication Ethernet modules interfaces Ethernet interface (WAN) of SFP module Buttons µC Indication block Power Voltage converter connector Figure 2.1 R4 Router Functional Diagram... -
Page 10: Appearance And Interfaces
3. Appearance and Interfaces 3.1. Appearance 3.1.1. Connectors and External Elements The router is of industrial design with a rugged and lightweight plastic case. Figure 3.1 Rear View Legend for Figure 3.1: Antenna connector 1 Interfaces terminal block LAN connectors 1 to 4 Wide area network connector Power connector Reset button... -
Page 11: Figure 3.2 Side View
2 3 4 5 6 Figure 3.2 Side View Legend for Figure 3.2: Power indicator Wide area network operation indicator LAN operation indicator Module 1 operation indicator Module 1 signal level indicator Module 2 operation indicator Module 2 signal level indicator SIM card 1 slot SIM card 1 operation indicator SIM card 1 eject button... -
Page 12: Router Indication
3.1.2. Router Indication Router indicators are located at the top of the side panel (see Figure 3.2). For explanation of signals and indicator colors, see Table 3.1. Table 3.1 Router Indication Status Explanation PWR (Power indicator) – shows the router state No power Blinks green Booting in progress... -
Page 13: Connectors And Interfaces
3.2. Connectors and Interfaces 3.2.1. Power Connector Microfit4 type power connector is designed to connect the router to power supply source. Requirements to power source: 8 to 30 VDC, min. current of 1 A at 12 V. Power source requirements for PoE operation: voltage of 24 to 30 V, min. current of 2 A at 24 V. Figure 3.4 Power Connector Table 3.2 Power Connector Pin Assignment Contact... -
Page 14: Local Area Network Connectors
3.2.3. Local Area Network Connectors Local area network connectors are designed to connect LAN Ethernet devices supporting data rate of 10/100/1000 Mbit/s. Each connector is provided with port link and activity indicators. In the PoE (Power over Ethernet) supporting modules, port 4 may provide power for an external IEEE 802.3af device. Left indicator (yellow): Link/Activity;... -
Page 15: Wide Area Network Connector
3.2.4. Wide Area Network Connector WAN connector is to be used to connect the router to the superior equipment providing for WAN wired access. The connector is provided with port link and activity indicators. Left indicator (green): Link/Activity; right (yellow): 1 Gbit speed. -
Page 16: Reset Button
Table 3.6 Antenna Connector Assignment Model Antenna 1 Antenna 2 RU41 GSM main GSM auxiliary RU41u GSM 1 main GSM 2 main RU41c GSM main CDMA main RL41 LTE main LTE auxiliary RL41l LTE 1 main LTE 2 main RL41c... -
Page 17: Preparation For Operation
4. Preparation for Operation 4.1. Connection Connect antennas to antenna connectors. Insert SIM cards in the slots. Connect LAN cable to the LAN1-LAN4 ports. Connect WAN cable to the WAN port. Connect power cable to the POWER connector. Make sure the local network IP address 192.168.1.1 is available and the computer is configured to receive IP address dynamically (DHCP) or has an address from the range of 192.168.1.0/24 Type the address in the address bar. -
Page 18: Local Area Network Configuration
VLAN ID (Specify VLAN number. Initially, the number is set automatically by the device, but may be changed by the user) Switch Ports (Select the physical ports to be added to VLAN) Settings save button For details, see "USER GUIDE. iRZ Routers Control and Monitoring Tools". -
Page 19: Global Network Configuration
Connection test interval in seconds (30 seconds by default). Number of failed connection attempts after which the router will try to connect via mobile network (3 by default) Settings save button For details, see "USER GUIDE. iRZ Routers Control and Monitoring Tools". -
Page 20: Wireless Network Configuration
4.4. Wireless Network Configuration Figure 4.3 Wireless Network Configuration Enable SIM1. Mobile network name (APN). Select the mode of operation with mobile networks: Auto – automatic detection of available network; 2G Only – operation in 2G network only; 3G Only – operation in 3G network only. Select SIM card identification protocol in the provider's network: Any –... - Page 21 Specify the period of time after which the router will attempt to go back to the main SIM card. Settings save button The second SIM card is configured similarly to the first one. For details, see "USER GUIDE. iRZ Routers Control and Monitoring Tools".
-
Page 22: Contacts And Support
5. Contacts and Support To obtain new versions of firmware, documents and respective software, contact us using the details below: www.radiofid.ru Company website: +7 (812) 318 18 19 Contact phone in St. Petersburg: e-mail: Our specialists are always ready to answer all your questions and assist in installing, configuring or troubleshooting of your equipment.
