Summary of Contents for iRZ ruh2b
-
Page 2: Table Of Contents
Contents 1. Introduction............................4 1.1. Document description......................4 1.2. Instructions packet overview....................4 1.3. Terms and abbreviations ......................5 2. Device information..........................6 2.1. Purpose ..........................6 2.2. Communications standards .....................6 2.3. Hardware specifications ......................6 2.4. Compliance with the standards....................7 2.5. Physical Characteristics ......................8 2.6. Storage and operating conditions ....................8 2.7. - Page 3 Table 3.6. Signal level gradation........................19 Table 4.1. Router functionality description...................... 28 List of Figures Fig. 2.1. Functional diagram of RUH2b router ....................10 Fig. 3.1. View from the SIM card side......................11 Fig. 3.2. View from the antenna connector side....................12 Fig.
-
Page 4: Introduction
1.1. Document description This document is part of the “iRZ Router Instructions Package” and contains explanatory information only about the technical specifications of iRZ router and some examples of the settings. For more information please see section 1.2. Document version Issue date 1.12... -
Page 5: Terms And Abbreviations
1.3. Terms and abbreviations Router - iRZ RUH2b Router; 3G – a general description of a set standards describing the work in UMTS and GSM networks: GPRS, EDGE, HSPA; Server – this term can be used to mean: a server part of a software package used in a computing complex;... -
Page 6: Device Information
2. Device information 2.1. Purpose A router is a multidisciplinary radio-technical subscriber device that works in cellular GSM/UMTS networks. Router allows solving challenges of data transfer, reception, protection, and computer network support. 2.2. Communications standards HSPA (speed: data transfer - up to 5.76 Mbps, reception - up to 7.2 Mbps); EDGE;... -
Page 7: Compliance With The Standards
2.4. Compliance with the standards Table 2.2: Standards Standard Description Ethernet (IEEE 802.x)* The hardware that provides the router operation in Ethernet computer networks, designed in accordance with the recommendations of the international standard IEEE 802. RS232 / RS485 (EIA-232 / EIA-485)* The interface used in routers to transfer user data designed in accordance with the standard RS232 / RS485 recommended by the International Association of the Electronics Industry - EIA. -
Page 8: Physical Characteristics
2.5. Physical Characteristics Table 2.3: Physical Characteristics Type Feature Body dimensions (without connectors) maximum 154x76x30 mm. (LxWxH) Product dimensions (with the connectors) maximum 167x76x30 mm. (LxWxH) Product weight maximum 210 grams Working temperature range from -30°C to +65°C Storage temperature range from -40°C to +85°C Allowable humidity the relative humidity should not exceed 80%, and the... -
Page 9: Gsm/3G Device Specifications
2.8. GSM/3G Device Specifications Table 2.4: Operating frequency bands of GSM/3G-module of the router Operation mode Band(s), MHz GPRS/EDGE 850/900/1800/1900 HSPA (3G) 850/1900/2100 2.9. Safety rules Restrictions on the use of the device near other electronic devices: Turn off the router in hospitals or when located near medical equipment (for example: pacemakers and hearing aids);... -
Page 10: Fig. 2.1. Functional Diagram Of Ruh2B Router
Fig. 2.1. Functional diagram of RUH2b router... -
Page 11: Appearance And Interfaces

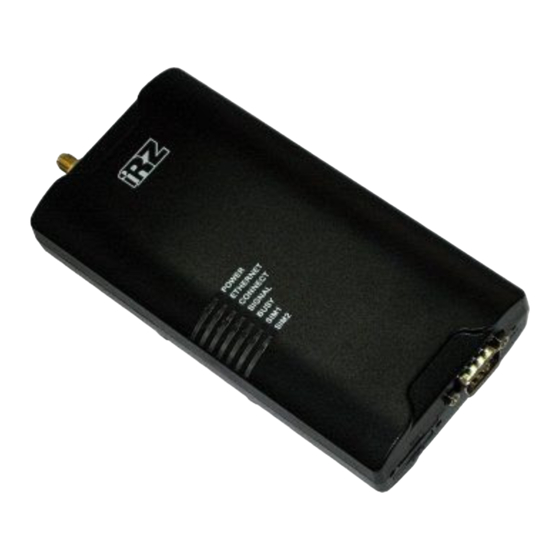

3. Appearance and interfaces 3.1. Appearance 3.1.1. Connectors and external elements The router is designed in an industrial version in a firm and lightweight plastic body. Fig. 3.1. View from the SIM card side Figure 3.1 numbers indicate: SIM card #2 tray; SIM card #1 tray eject button;... -
Page 12: Fig. 3.2. View From The Antenna Connector Side
Fig. 3.2. View from the antenna connector side Figure 3.2 numbers indicate: Ethernet network connector; USB Host connector; SMA antenna connector, GSM antenna connections; 6P6C power supply connector. Fig. 3.3. View from the top (router indicators) -
Page 13: Routers Indicators
Router indicators are located on top of the body (see fig. 3.3). Please see the Table 3.1 for the explanation of LED indicators signals and colours. The first column shows the name and a brief description of each indicator purpose. Table 3.1: Router indicators explanation RUH2b router external indicators Color Green Yellow... -
Page 14: Decoding Device Label
3.1.3. Decoding device label Fig. 3.4. Product label... -
Page 15: Interfaces
3.2.1. Power supply The power supply of the iRZ RUH2b router must be from a stabilised power supply with a voltage output in the range 8-30 Volts and the maximum current not less than: 800 mA at the voltage +12V;... -
Page 16: Serial Port (Com-Port, Db-9 Connector)
Connecting two remote devices with COM interfaces via the Internet. There are two serial ports available in RUH2b router, they are RS232 and RS485 interfaces. DB-9 connector (Fig. 3.6) is used to connect COM ports; please see Table 3.3. for the connector purpose. -
Page 17: Ethernet Interface
3.2.3. Ethernet interface The Ethernet interface is designed using a standard connector 8P8C (“RJ-45”). Please see table 3.4. for the description of the connector pins. Fig. 3.7. Ethernet connector Table 3.4: Purpose of Ethernet connectors pins Signal Direction Purpose Router ® PC ETX P Transfer, positive pole Router ®... -
Page 18: Usb Interface
When selecting an antenna, first please pay attention to the positions for operating on UMTS network, as RUH2b router is designed primarily to operate on UMTS networks. Other antenna models can also provide a normal operation in cellular networks, but will not provide a full use of the router functionality, and communication channels speed will be limited. -
Page 19: Table 3.6. Signal Level Gradation
(connection not guaranteed) -81 … -67 16 … 22 medium -65 … -51 23 … 31 good (steady reception) Reminder: If the signal level is low, or there are connection problems, please refer to the document “Diagnostics and Troubleshooting of iRZ Routers”... -
Page 20: Preparing For Operation
4. Preparing for operation 4.1. Connecting a SIM card To ensure the connectivity of the router to the Internet through a cellular network you will require a SIM card of a mini-SIM format. Prepare the SIM card (mini-SIM), reset your PIN code if necessary. Please note: SIM card of a mini-SIM format is different from other cards in size. - Page 21 If the shutdown of the PIN verification on the SIM card is undesirable, please refer to the Internet Connection Settings section of the document “Control and Monitoring of iRZ Routers” Note: If the PIN-code test of the SIM card was not turned off, you can always do it through the router web- interface.
-
Page 22: Device Access
4.2. Device access The device access can be remote (via the Internet, after the router is connected on GPRS/EDGE/3G) and locally (use an Ethernet cable), connecting the router directly to a computer. Fig. 4.1. Device operation diagram... -
Page 23: Web Interface Access
4.2.1. Web interface access To obtain access to the router web-interface, please use any standard Internet browser that supports HTTP 1.0 , for example, Opera, Firefox, IE, Chrome. Open the browser and perform the following steps: Enter the router IP address into the browser address line ; Note: The IP address to access the router settings used by default is listed on the sticker on the bottom side of the router body. -
Page 24: Internet Connection Via 3G/Gsm Channel
4.2.2. Internet connection via 3G/GSM channel To connect the router to the Internet you will require: 3G antenna, SMA antenna cable connector; SIM card with a the Internet access service package, and settings documentation; SIM card tray (supplied with the router). Note: If you plan to connect the router to the Internet through an Ethernet connector, it may require a cable (preferably CAT 5e) for connecting to the device with the provider's equipment... -
Page 25: Device Installation
4.4. Device installation RUH2b router has special slots on the bottom of its body to enable mounting it on a DIN-rail without any additional tools: Take your router and simply clip its bottom part to a DIN-rail ; When mounting on a wall, the bottom of the router has special openings for mounting. The distance between the openings is 90 mm. - Page 26 RUH2b has HardFix-mount, to securely hold the device for DIN-rail. Installinf on DIN-rail Removing from DIN-rail Hook the router overhead fasteners for one Pull the router towards the antenna connector to edge of the DIN-rail; compress the upper fasteners; Pull the router to compress the upper fasteners;...
- Page 27 When installing the router on a wall, you can use a special pad, please see above. You can print out this figure, cut it out, and easily determine the distance for the openings without any additional measurements. Attention: Printers can distort the dimensions when printing. After printing page, please make sure that the information provided in scale on the figure (the size is specified in centimeters) is the same as the actual size.
-
Page 28: Software Functionality
Name Brief description Explanation and operating principle Key functions Secure network tool OpenVPN is one of the core services, defining iRZ OpenVPN router functionality. OpenVPN service has many facets, and its setting depends on a specific application. Key features are: Secure data channel possibility;... - Page 29 Generating all the debug information Page to send the debug information. Please use It Send Report when contacting iRZ support team to reduce the time required to identify the issue Check the connection with the node A standard command to check the connection to the...
- Page 30 Table 4.1: Router functionality description (continuation) Name Brief description Explanation and operating principle Functional expansion Autorun Script It allows to significantly increase the in-built Startup Script functionality of the router. Commands/script saved on this page will be performed every time the device starts.
-
Page 31: Contacts And Support
5. Contacts and Support New document versions and software are available using: St. Petersburg The company’s website: www.radiofid.ru Phone number in St. Petersburg: +7 (812) 318 18 19 E-mail: support@radiofid.ru Moscow The company’s website: www.digitalangel.ru Phone number in Moscow: +7 (495) 974 74 22 E-mail: info@digitalangel.ru Our support team is ready to assist you with any questions you might have when installing, configuring or...
