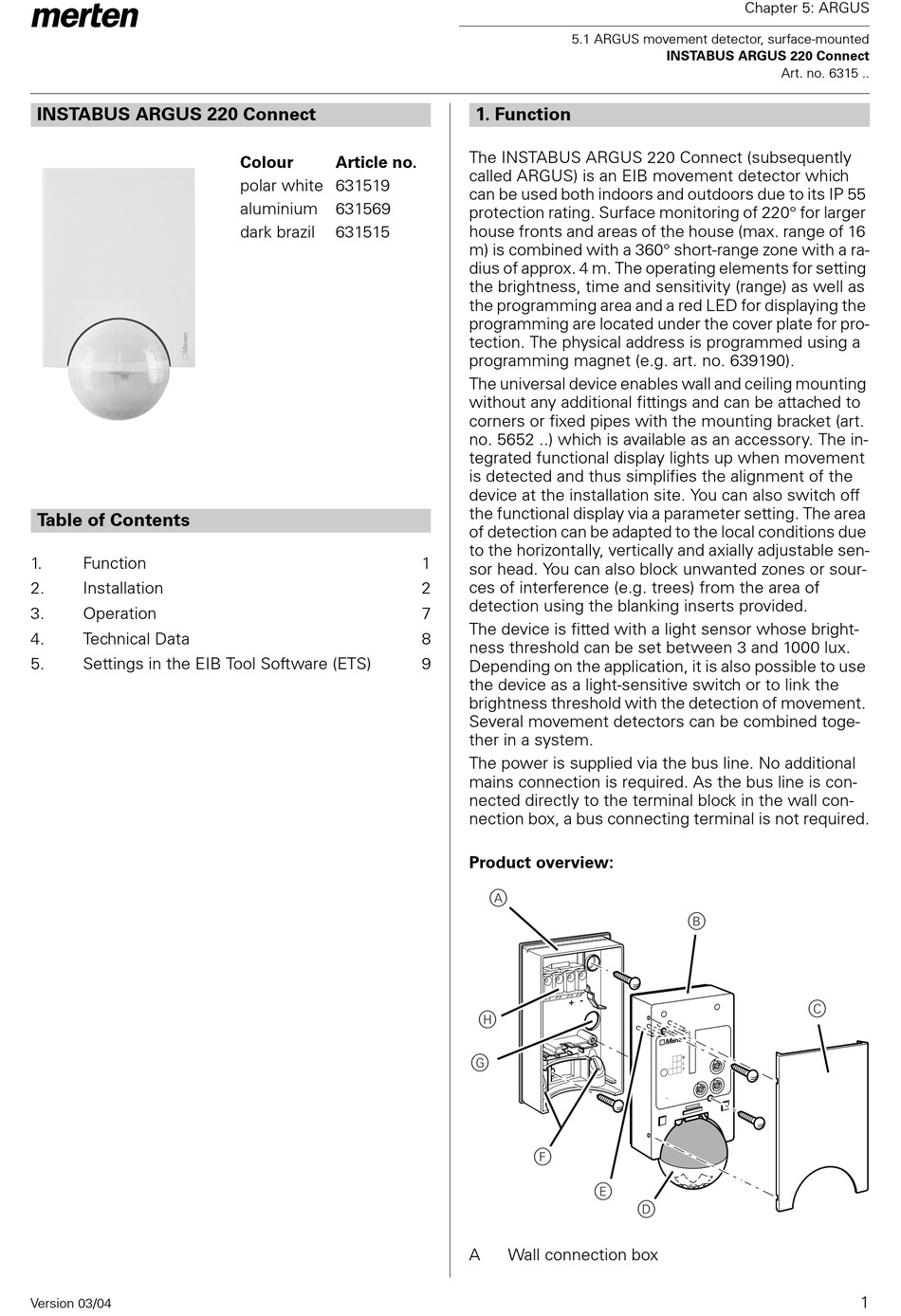

INSTABUS ARGUS 220 ConnectChapter 5: ARGUSArt. no. 6315 ..Version 03/045.1 ARGUS movement detector, surface-mounted
INSTABUS ARGUS 220 Connect
Table of Contents
1. Function
2. Installation
3. Operation
4. Technical Data
5. Settings in the EIB Tool Software (ETS)
Version 03/04
Colour Article no.
polar white 631519
aluminium 631569
dark brazil 631515
5.1 ARGUS movement detector, surface-mounted
1. Function

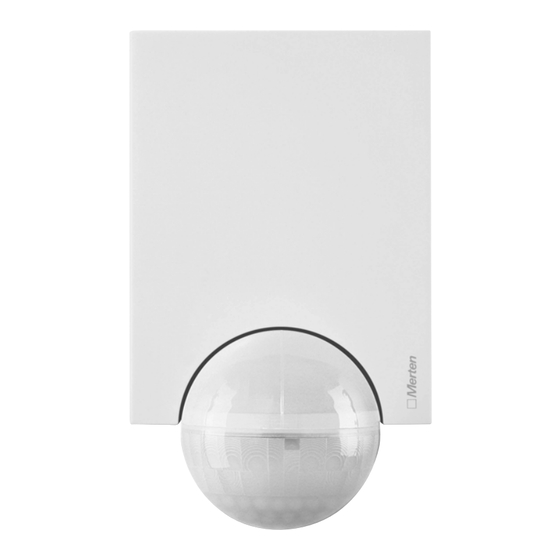

The INSTABUS ARGUS 220 Connect (subsequently
called ARGUS) is an EIB movement detector which
can be used both indoors and outdoors due to its IP 55
protection rating. Surface monitoring of 220° for larger
house fronts and areas of the house (max. range of 16
m) is combined with a 360° short-range zone with a ra-
dius of approx. 4 m. The operating elements for setting
the brightness, time and sensitivity (range) as well as
the programming area and a red LED for displaying the
programming are located under the cover plate for pro-
tection. The physical address is programmed using a
programming magnet (e.g. art. no. 639190).
The universal device enables wall and ceiling mounting
without any additional fittings and can be attached to
corners or fixed pipes with the mounting bracket (art.
no. 5652 ..) which is available as an accessory. The in-
tegrated functional display lights up when movement
is detected and thus simplifies the alignment of the
device at the installation site. You can also switch off
the functional display via a parameter setting. The area
of detection can be adapted to the local conditions due
to the horizontally, vertically and axially adjustable sen-
1
sor head. You can also block unwanted zones or sour-
ces of interference (e.g. trees) from the area of
2
detection using the blanking inserts provided.
7
The device is fitted with a light sensor whose bright-
8
ness threshold can be set between 3 and 1000 lux.
9
Depending on the application, it is also possible to use
the device as a light-sensitive switch or to link the
brightness threshold with the detection of movement.
Several movement detectors can be combined toge-
ther in a system.
The power is supplied via the bus line. No additional
mains connection is required. As the bus line is con-
nected directly to the terminal block in the wall con-
nection box, a bus connecting terminal is not required.
Product overview:
A
H
G
F
A Wall connection box
