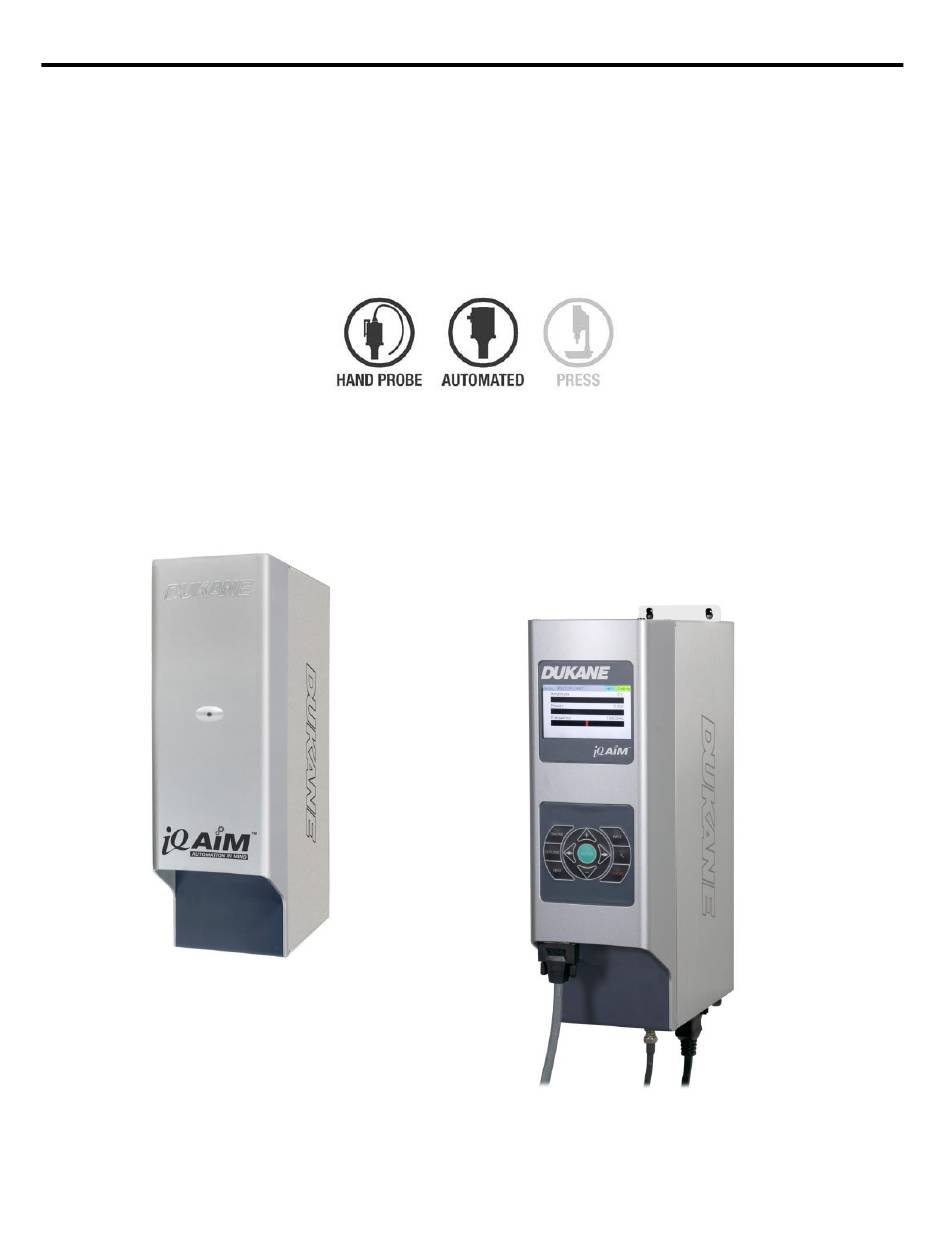

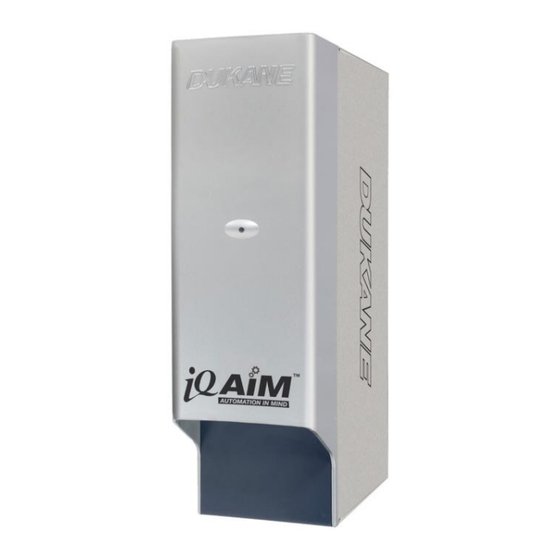

- Page 1 DUKANE APPLICATION NOTE Intelligent Assembly Solutions AN525 Series ULTRASONIC PROBE SYSTEM Automation Interface Guidelines AN525 (REV 02) © Dukane 2018. All Rights Reserved. Page 1 of 21...
-
Page 2: Table Of Contents
Intelligent Assembly Solutions AN525 Contents Programming the Aim Generator for use with hard wired connections using iQ Commander ....3 The following control parameters are available via iQ Commander™: Parameters that can be obtained via iQ Commander™ Operations that can be done via iQ Commander™... -
Page 3: Programming The Aim Generator For Use With Hard Wired Connections Using Iq Commander
Programming the Aim Generator for use with hard wired connections using iQ Commander IQ Commander is a PC based utility that can be used to communicate to Dukane generators that contain a USB port. This utility can be downloaded from the following location: https://update.dukane.com/... -
Page 4: System I/O Cable Pinouts
System Input/Output Cables Part Number Length 200-2119-03M 3 meters 200-2119-05M 5 meters 200-2119-07M 7 meters 200-2119-09M 9 meters 200-2119-11M 11 meters 200-2119-13M 13 meters AN525 (REV 02) © Dukane 2018. All Rights Reserved. Page 4 of 21... -
Page 5: System Inputs Description
2. J5-1 can be used in place of the 24 Vdc supply. If so, J5-11 must be connected to J5-2. Use J5-13 in place of J5-11 for the Ultrasound Activation/Cycle Start Input. Warning: Any connection to the Ultrasound Activation/Cycle Start Input (J5-12) should be disabled during an emergency stop condition. AN525 (REV 02) © Dukane 2018. All Rights Reserved. Page 5 of 21... -
Page 6: Connecting An Input To A Plc Sinking Output Card
Use J5-13 in place of J5-11 for the Ultrasound Activation/Cycle Start Input. Warning: Any connection to the Ultrasound Activation/Cycle Start Input (J5-12) should be disabled during an emergency stop condition. AN525 (REV 02) © Dukane 2018. All Rights Reserved. Page 6 of 21... -
Page 7: Connecting An Input To A Relay Contact Closure
0 Vdc Return. 2. Dukane’s current limited power supply can be substituted for the +24 Vdc supply above. Connect J5-1 to Isolated Common (J5-11) and 0 Vdc Return to J5-2. Use J5-13 in place of J5-11 for the Ultrasound Activation/Cycle Start Input. -
Page 8: System Output Description
+24 Vdc supply or 0 Vdc Return. 2. J5-1 can be used in place of the 24 Vdc supply. If so, J5-26 must be connected to J5-2. AN525 (REV 02) © Dukane 2018. All Rights Reserved. Page 8 of 21... -
Page 9: Connecting An Output To A Plc Sinking Input Card
+24 Vdc supply or 0 Vdc Return. 2. J5-1 can be used in place of the 24 Vdc supply. If so, J5-26 must be connected to J5-1 and 0 Vdc to J5-2. AN525 (REV 02) © Dukane 2018. All Rights Reserved. Page 9 of 21... -
Page 10: Connecting An Output To A Relay Contact Closure
+24 Vdc supply or 0 Vdc Return. J5-1 can be used in place of the 24 Vdc supply. If so, J5-26 must be connected to J5-2. AN525 (REV 02) © Dukane 2018. All Rights Reserved. Page 10 of 21... -
Page 11: Connecting A Distance Encoder
Connecting a Distance Encoder The Dukane AiM generator is equipped with two analog inputs. Either input may be used for distance measurement input, or remote amplitude control. Each is designed to except a 0-10 volt input. Voltage range and scaling are programmed through iQ Commander or the display, if equipped. -
Page 12: Remote Setups
Remote Setup Selection Bit 1 Input J5-7 Sinking Remote Setup Selection Bit 2 Input Outputs J5-8 Remote Setup Selection Bit 3 Input J5-1 +22VDC Power Supply J5-13 Isolated Common AN525 (REV 02) © Dukane 2018. All Rights Reserved. Page 12 of 21... -
Page 13: Connecting An Automation Safety Circuit
1. To operate the AiM Generator, J5-3 and J5-4 must be maintained in a closed connection. If the connection between J5-3 and J5-4 is opened, the ultrasonic output will be disabled. 2. The iQ AiM generator is shipped whith an E-Stop jumper plug for testing, etc. purposes. However this plug is not reccomended for use during production operation. -
Page 14: Iq Aim Automation Controlled Probe Generator Timing Diagrams
Ready Status changes state. The Any Fault Status output will deactivate the next time the U/S Activate input is turned on, but is delayed up to 2ms. For correct operation, a PLC controlling a AiM generator must take into account the timing shown below before checking the Any Fault, Overload, U/S, and Ready Status outputs. -
Page 15: Aim (Weld-By-Time) Timing Diagram
The U/S Status output will deactivate when the weld time plus the ramp down completes and will take up to 2ms to change to it’s deacti ated state. For correct operation, a PLC controlling an AiM generator must account for the timing shown in Figure 2 before checking the U/S Status output. -
Page 16: Aim (Weld-By-Energy) Timing Diagram
The Bad Part Status output will deactivate the next time the U/S Activate input is activated, but is delayed up to 2ms. A PLC controlling an AiM generator must take into account the timing shown in Figure 3 before checking the Bad Part, U/S, and Ready Status outputs. -
Page 17: Aim With Mpcq (Weld-By-Automation) Timing Diagram
U/S Activate input until the MPC Ready signal is active. Figure 4 AiM with MPCQ Weld Cycle (Weld-by-Automation) Timing Diagram Notes: All Signals are active high and the Shaded areas indicate that the output could be either high or low. -
Page 18: Setting Up An Industrial Protocol Network Connection Via Iq Commander
Setting up an Industrial Protocol Network Connection via iQ Commander™ Dukane iQ AiM generators support Ethernet/IP, Modbus TCP, POWERLINK, PROFINET, EtherCAT, CC-Link and Profibus. Documentation and PLC demo code are available via download. Programming the IP address or generator ID is done through the USB port using iQ Commander. - Page 19 Once the IP or generator ID is setup, connect the PLC and verify communication. Use the PLC to setup the weld parameters. t is recommended to use Dukane’s PL Demo code written specifically to communicate to our generators. Please contact Dukane Technical Support for information on how to download this PLC code. Contact info: Email: ustechsupport@dukane.com...
-
