B. Mounting hand valve(s) on the truck :

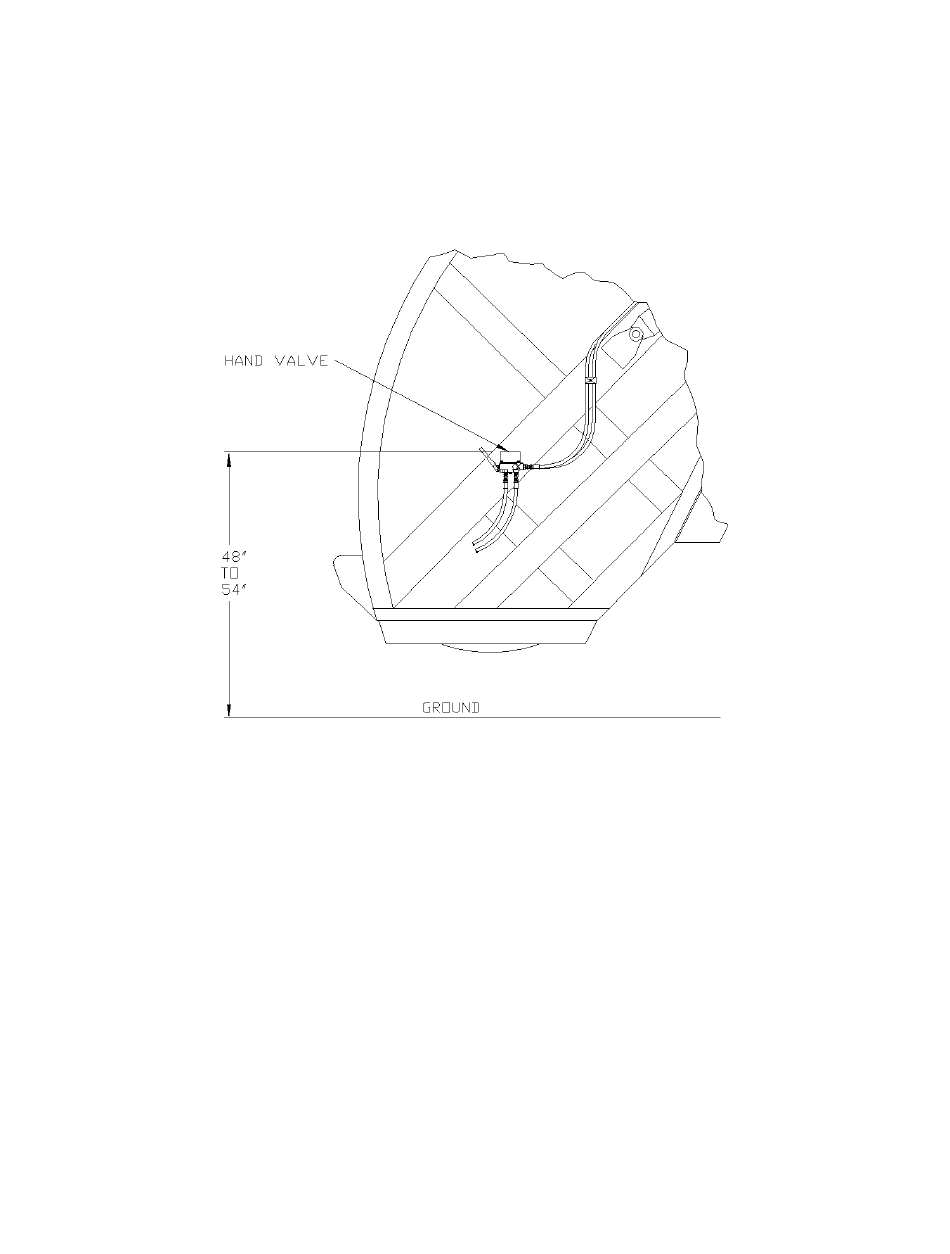

1. Choose and mark an acceptable location(s) on the side(s) of the truck to mount the hand valve assembly(s) ( Figure
2 ).
2. Remove the mounting bracket(s) from the hand valve assembly(s) and weld to the truck.
3. After the weld has cooled, paint the mounting bracket(s) to match the truck color.
4. After the paint has dried, reassemble the hand valve assembly(s) on the mounting bracket(s).
C.Mounting diverter valve on the truck :
1. Choose and mark an acceptable location to mount the diverter valve assembly. This location should be near the
truck's main hydraulic pressure and tank lines on the same area of the truck where the lifter is mounted.
2. Weld diverter valve mounting bracket to the truck.
3. After the weld has cooled, paint the mounting bracket to match the truck color.
4. After the paint has dried, bolt the diverter valve to the mounting bracket using the 1/4" bolts, washers, and elastic
lock nuts.
