OPERATION INSTRUCTIONS

WI-0430-B
®
The Bayne THINLINE
insure the safety of all operators of this equipment, please read this manual carefully before operating the dumper.
FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY
DAMAGE.

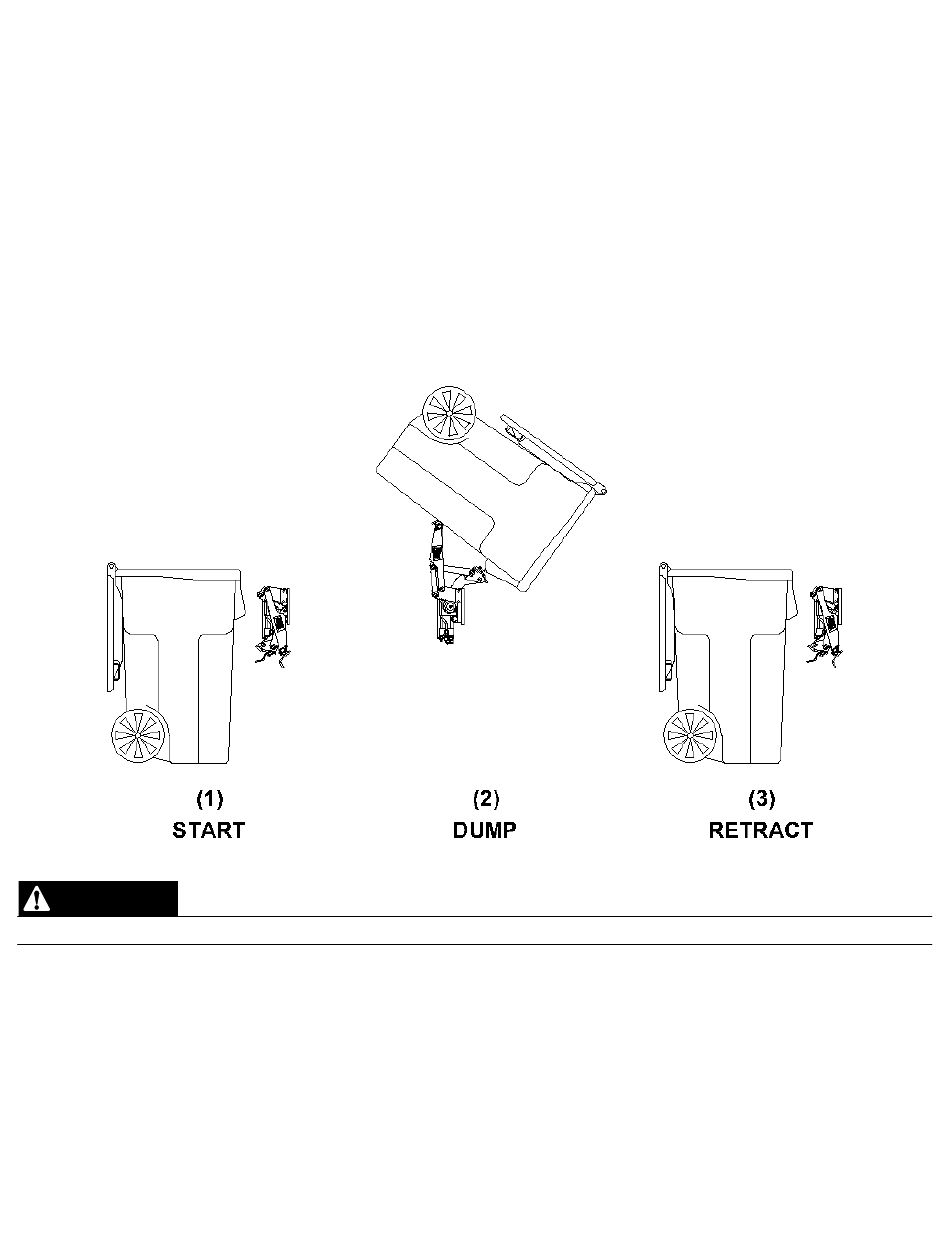

The operating stages ( Figure 6 ) in the cycle of the cart lifter are as follows:
1. START - Inspect the cart for damage before engaging the latch mechanism, then place the cart at the lifter.
2. DUMP - The rotary actuator cycles to dump the contents of the cart into the box. During this cycle, the lower hook
automatically extends to "lock" the cart to the lifter.
3. RETRACT - The rotary actuator reverses its cycle returning the cart to the start position. The lower hook
automatically retracts to "unlock" the cart from the lifter.
WARNING
Operating under the recommended cycle time on any lifter will void the manufacturer's warranty
The rotational motions of the cart lifter are controlled with the use of a hand valve. Moving the handle on the hand valve in
one direction will cause the lifter to perform the actuator dump stage ( Figure 6 ). Moving the handle in the opposite
direction will cause the lifter to perform the actuator reverse stage.
Issued June 2017
Revision No: 001
Operation Instructions
Premium Lift System is a high quality durable dumper built to meet industry requirements. To
Figure 6.
