INSTALLATION INSTRUCTIONS

WI-0252-A
The following information is intended to be a GENERAL GUIDE to installing the Bayne THINLINE
refuse truck. Before starting the installation, read these instructions completely. ALWAYS use the proper tools, lift
devices, and personal protective equipment to prevent injury while performing the installation.
NOTICE
®
If a Bayne THINLINE
the Tap-In Kit manual for more detailed information.
A. Mounting lifter(s) on the truck :
1. The truck should be emptied and cleaned before any installation. The truck should be parked on a level solid
surface, a concrete floor if possible.
2. All lights, tags, steps, etc. that will interfere with the installation should be removed and/or relocated.

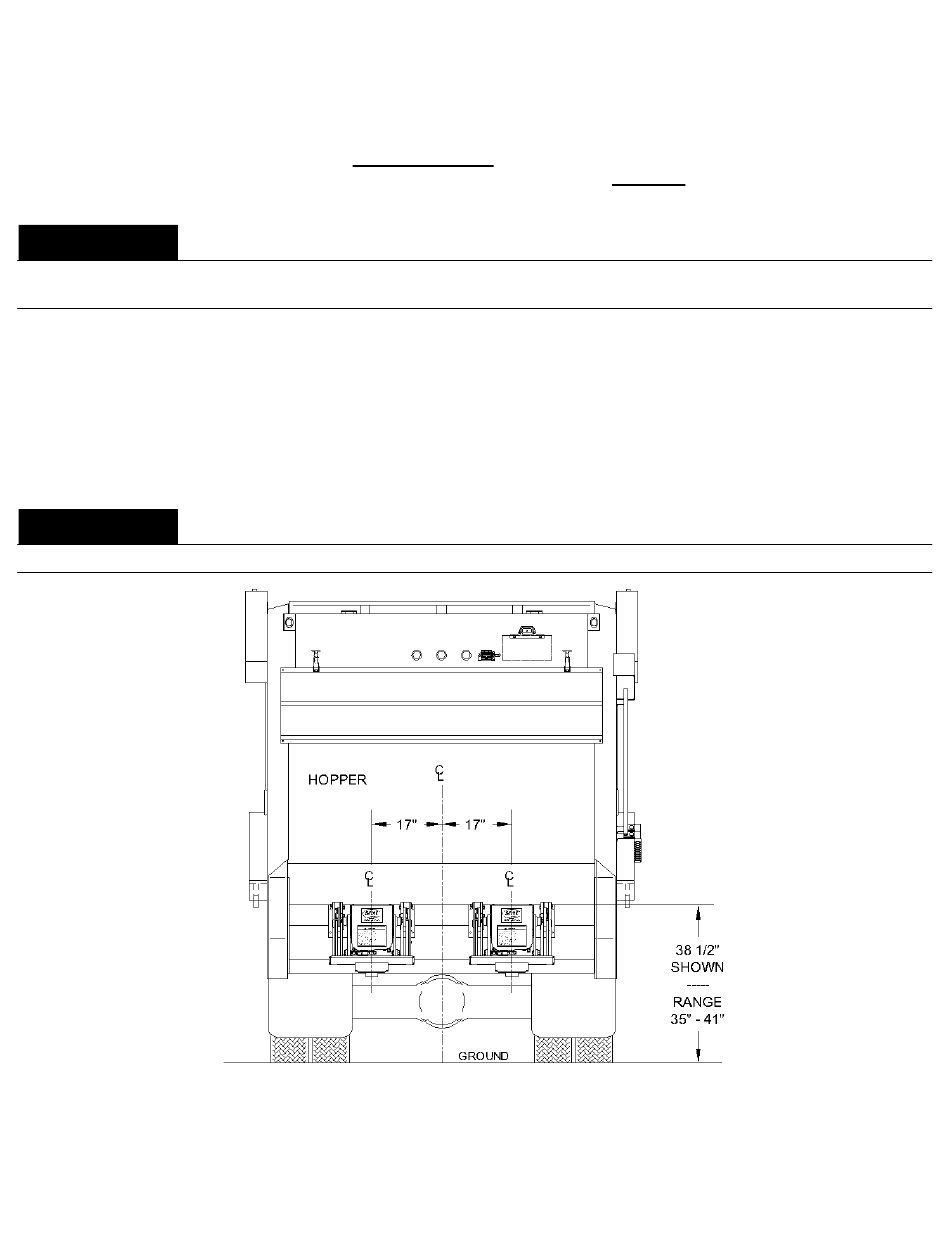

3. Position the lifter(s) on the sill of the truck as in Figure below and mounting height drawing and tack weld in place.
See Appendix A for drawings. If using an "S" unit for bolt on applications, tack weld the mounting plate in place and
attach the lifter to the mounting plate using the 1/2" studs.
NOTICE
Tack weld only at this time so that adjustments can be made if necessary.
Issued June 2017
Revision No: 001
Installation Instructions
Tap-In Kit was also acquired for this installation, refer to the installation instructions included in
Figure 1 .
®
lifter on a typical
Printed in U.S.A.
Copyright 2017, Bayne Premium Lift Systems
