System Expansion - Kidde Fire Systems PEGAsys Installation, Operation And Maintenance Manual

Intelligent Suppression Control/Fire Alarm System
The PEGAsys system is capable of substantial expansion in the
number of RX/TX loops, I/O modules and system output power.
The system will support up to 16 I/O modules for single loop and
23 I/O modules for multi-loop - a maximum of 8 of any one type of
module. The system power supply monitor module can super-
vise two power supply units (4 amps each for a total of 8 amps
per module) which allows for up to 64 amps of 24 VDC power.
The following diagrams will demonstrate the available ways of
expanding the system.

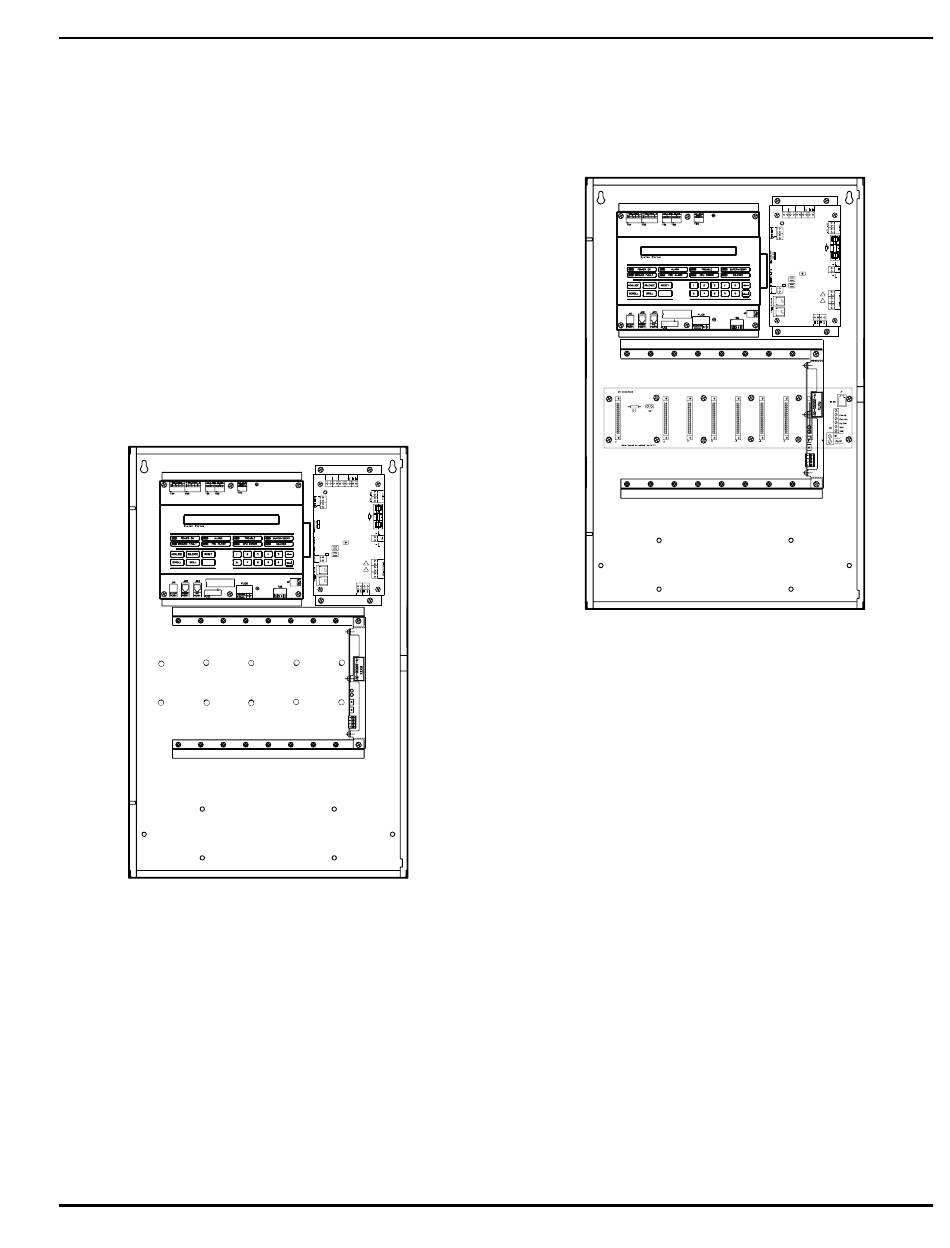

Figure B-1 shows the single loop PEGAsys system (P/N 76-
100000-501). This includes the Central Control Module (CCM),
Receiver/Transmitter (RX/TX) module, Power Supply/Charger
assembly and the system enclosure. The basic system can be
expanded as shown in the following sections
KIDDE
Figure B-1. Single Loop
Figure B-2 shows the single-loop PEGAsys system with the
optional I/O motherboard (P/N 76-100007-001) installed. The I/
O motherboard provides the system with mechanical and elec-
trical interfaces for up to eight I/O modules of any style. The I/O
modules are installed by inserting them into the desired
motherboard slot and fastening with the two screws provided.
The PEGAsys ML (Multi-loop) system (P/N 76-100000-600) looks
much the same as the system in Figure B-2 with the exception of
the multi-loop motherboard (P/N 76-100017-001) in the place of
the basic motherboard (P/N 76-100007-001). The Multi-loop
motherboard has the ability to connect up to 8 RX/TX loop con-
trollers, for a maximum of 2040 Intelligent addressable points per
system.
76-100016-001
APPENDIX B

SYSTEM EXPANSION

AC OUT AC OUT AC IN AC IN DC IN 1 DC IN 1
1 2
N L N L G N L
SHR
DS1
24V
NO
RET
C
RET
NC
PEGAsys
+
-
S3
2
S1
1
W4
2
S2
1
A
B 24V
R
RET
24V
R
RET
24V
RET
06-129562-001 06-129562-001 AUX 1 AUX 1 AUX 2 AUX 2
KIDDE
Figure B-2. Single Loop with Motherboard
Figure B-3 shows the PEGAsys system with an auxiliary power
module (P/N 76-100009-002) installed. The auxiliary power sup-
ply module provides an additional 4 amps of 24 VDC power for
a total of 8 amps for system use. The unit would be installed if
the system required more than the base system's 4 amps of 24
VDC power. When the auxiliary module is installed the system
batteries are moved to a battery cabinet. P/N 76-100010-001 is
an UL listed battery enclosure for use with the PEGAsys.
This figure could also be a multi-loop system with the inclusion
of the multi-loop motherboard and additional RX/TX loop con-
trollers.
B-1
PEGAsys
AC OUT AC OUT AC IN AC IN DC IN 1 DC IN 1
1 2
N L N L G N L
SHR
DS1
24V
NO
RET
C
RET
NC
PEGAsys
+
-
S3
2
S1
1
W4
2
S2
1
A
B
24V
R
RET
24V
R
RET
24V
RET
06-129562-001 06-129562-001
AUX 1 AUX 2 AUX 1 AUX 2
August 1999
