O-1 CENTRAL STATION OPERATION
For central station operation, the PEGAsys control panel must
be configured for central station use through PCS menu (Net-
work Settings). A Silent Knight DACT Model 5104 must be wired
to the PEGAsys control panel as shown in Figure O-1. See Model
5104 Installation Manual for information regarding connection
of the DACT to the telephone line for alarm and trouble
transmission(s).
NO NC C
NO NC C
Volt Free
Fault Relay
Relay 2
PegaSYS CCM PCB

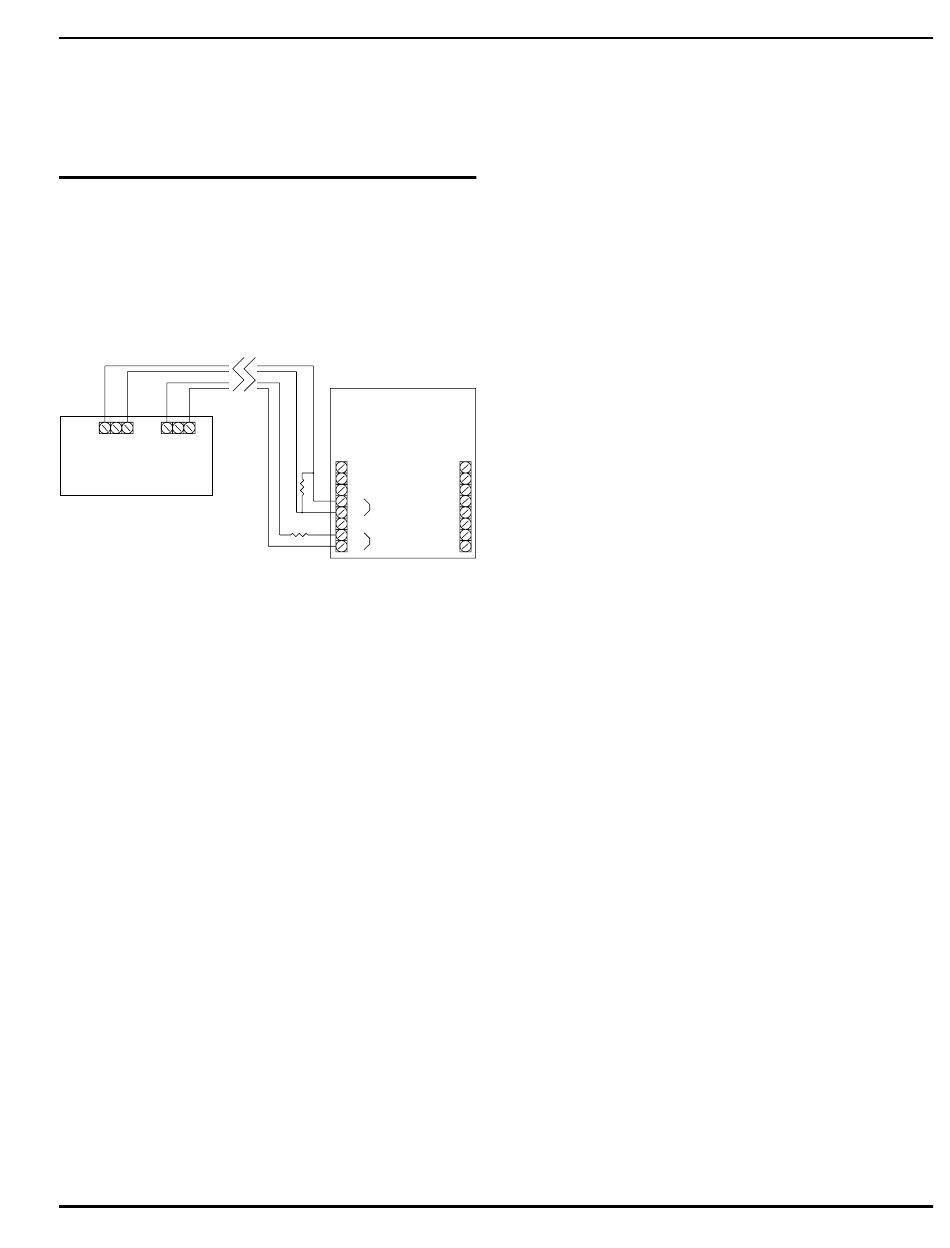

Figure O-1. Wiring for DACT
76-100016-001
APPENDIX O
CENTRAL STATION OPERATION
Silent Knight DACT Model 5104 PCB
4.7k
18
8
17
Zone 3 Alarm
9
16
10
15
4.7k
11
14
Zone 4 Trouble
12
13
O-1
