Assembly and operation

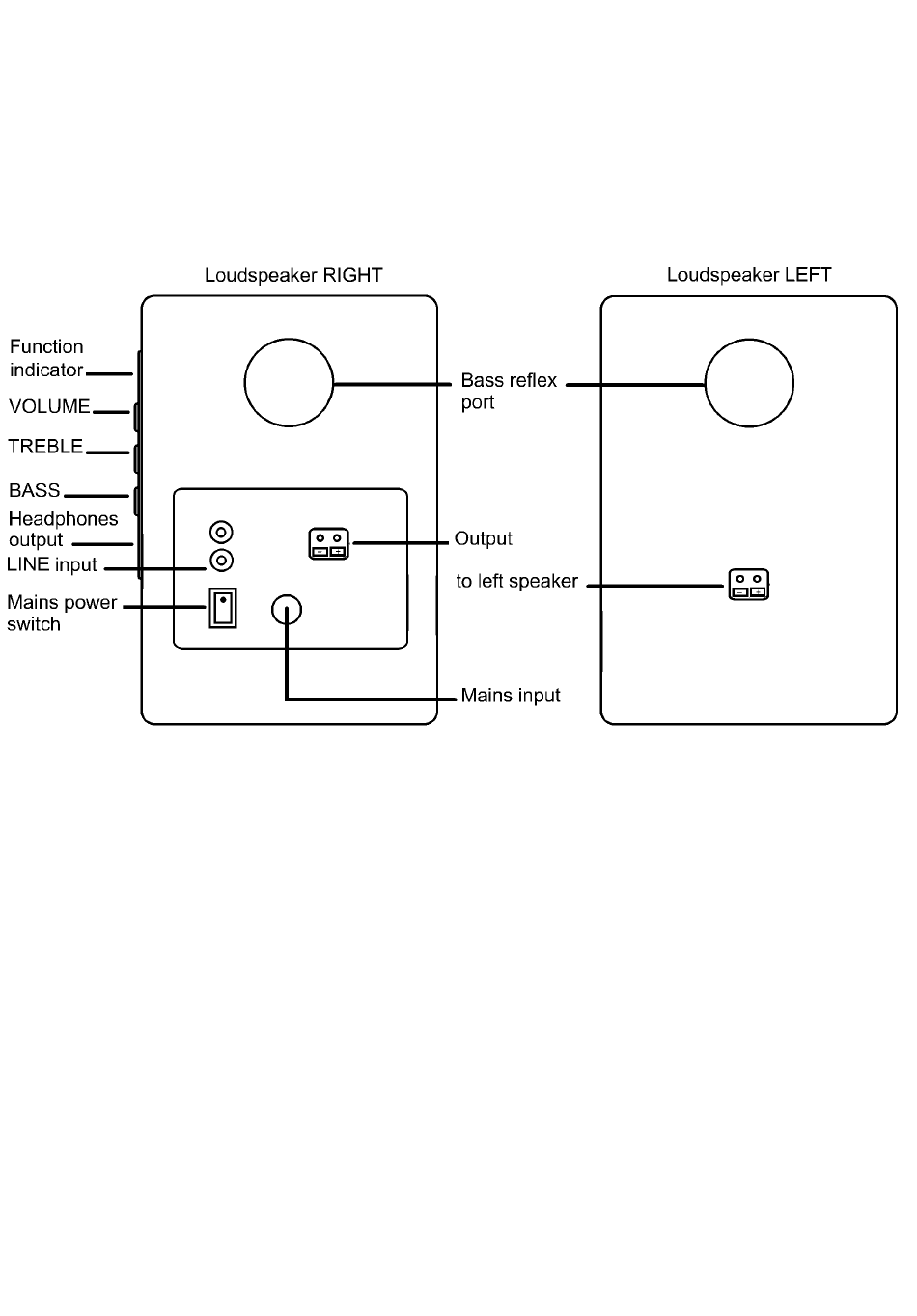

Assembly and operation of your BASE speaker system is very easy to do. General connections are
shown in the following drawing.
Please connect all components only when the mains power switch is switched OFF.
The right speaker box contains the electronics. You can identify the right speaker by its controls and
•
connectors on right hand side and backside of the right speaker box.
Place the speakers at their target area and start connecting.
•
First, connect the left speaker to the right speaker by the speaker cable. The spring terminals can
•
be released by finger pressure on the button. Insert the stripped cable ends each into the terminal
openings, to have connected red to red (plus) and black to black (minus) of both speaker boxes to
each other. Make sure the cable ends connect well to inter-connect from the right (active) speaker's
amp output to the left (passive) speaker's input.
Please care to avoid short circuits between red and black connectors, not to cause
•
malfunctions or defects!
Next, connect the LINE input sockets on the back of the right BASE box via the provided cable to
•
an appropriate sound source.
Connect the mains cable plug to your mains supply.
•
Switch on the main switch on the back. The operation mode indicator above the VOLUME knob on
•
the right side of the right hand speaker lights up red.
By a short push on the VOLUME knob of your BASE, you can power ON the system, the indication
•
changes to green light. When on, a short push on the VOLUME knob changes between LINE (green
indication) and Bluetooth® (BT) (blue indication). The volume of your BASE system can be
controlled by turning the VOLUME
English
knob.
