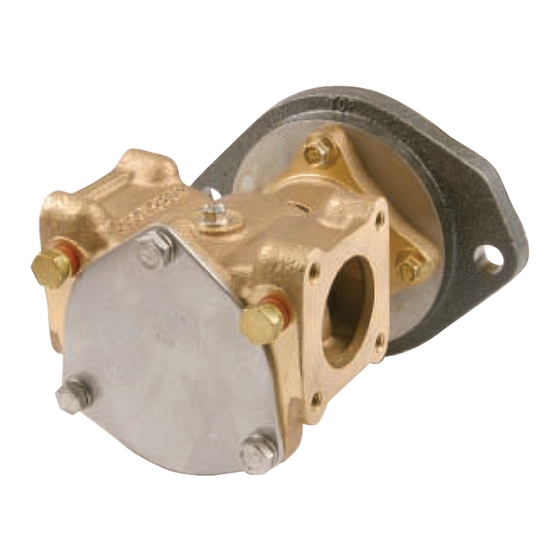

- Page 1 The Original Engine Cooling Pump Since 1921 17000 and 27000 Pump Series Technical Guide Identification P1710X, P1710A, P1716X, P1722X, P1719X P1726X, P1732X & P173 & P1732A P1727X, P1727A, P176X P2701X P1730X, P1730A, P1731, and P1733X...
- Page 2 Assembly / Disassembly Instructions The following assembly/disassembly procedures apply to all 17000 Series pumps. Deviations from pump to pump are primarily a result of different methods of drive and mounting. Pump model numbers can be found stamped into the cover plate of the pump.
- Page 3 Assembly / Disassembly Instructions (continued) D. Press the bearing and shaft assembly into the housing (18). In applicable pump models, replace the internal snap ring (17). On newer model pumps, the bearings will be flush to the end of the housing or slightly protruding, and will be retained with the flange adapter (24).
- Page 4 Assembly / Disassembly Instructions (continued) Sherwood # P176X P1710X P1710A P1716X P1719X P1722X P1726X P1727X P176 P1710 P1716B-01 P1719 P1722B-01 P1726 P1727FB P176-02* P1710-02* P1716B-02* P1719-01 P1722B-02* P1727FB-01 P1719F-01 P1727FB-02* Item Cap Screw 16029 19626 19626 19626 19626 19626 19626...
-
Page 5: Preventative Maintenance
Preventative Maintenance The #1 reason for premature engine wear is overheating. To maintain engine performance, insist upon genuine Sherwood impellers and service kits. Pleasure Boating Commercial/Fishing Use Maintenance (Low Hours) (High Hours) Schedule Light Duty Severe Duty Heavy Duty Severe Duty... - Page 6 Inspection The #1 reason for premature engine wear is overheating. To maintain engine performance, insist upon genuine Sherwood impellers and service kits. Recommended inspection to be performed at any service interval: Impeller ..Inspect for cracks or tears. Also, inspect for excessive abrasion of vane ends. Replace annual- ly or if any of the conditions exist, as in the picture below.*...
