09959K Impeller Kit Technical Guide
Engine Specified
Impeller kit 09959K includes 09959 impeller
and the associated o-rings and gaskets.

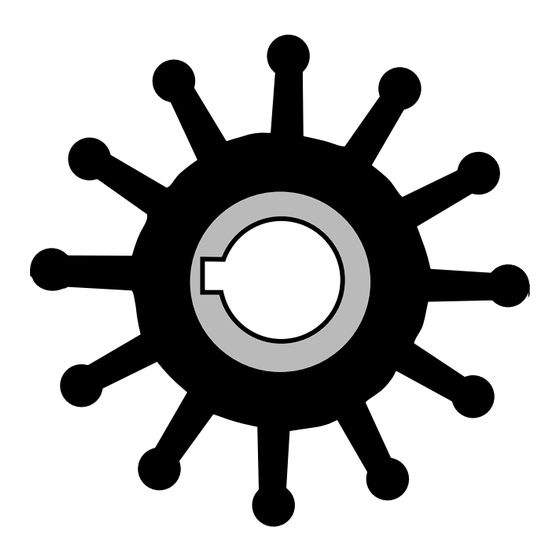

09959 Impeller Specification

Dimensions

• Diameter: 2-7/16" (61 mm)
• Width: 1-1/4" (31.7 mm)
• Keyway: 3/16"
• Shaft: 5/8"

Material

• Rubber Impeller: Neoprene
• Insert: Stainless steel or bronze
Number of Blades: 12
The 09959K is used in the following genuine Sherwood pumps:
A03
A16
B06
D55*
D60**
D65**
D75**
F15
F85
* Pump uses (1) 09959K and (1) 10615K impeller kits.
** Pump uses (2) 09959K impeller kits.
Identification

Application

G1
G95-1
G15
G9901
G2
G9902
G20
G9903
G21
H10
G22
H5
G30-2
J70
G30-2B
J90
G65
K75
2-7/16" (61 mm)
K75B
M10280G
L9920G
N10390G**
L9930G
N10410G
M10065G
N10460
M10180G
N10470
M10210G
N10510G
M10263G
P10550G*
M10264G
P10560G**
M10270G
P10610G
P10650G
R10920G
P10700G
R10925G
P10710G**
R10930G
Q10755G
R10935G**
Q10765G
R10955G
Q10770G
R50G
Q10855G**
R991
R10870G
RPGC
R10870G
