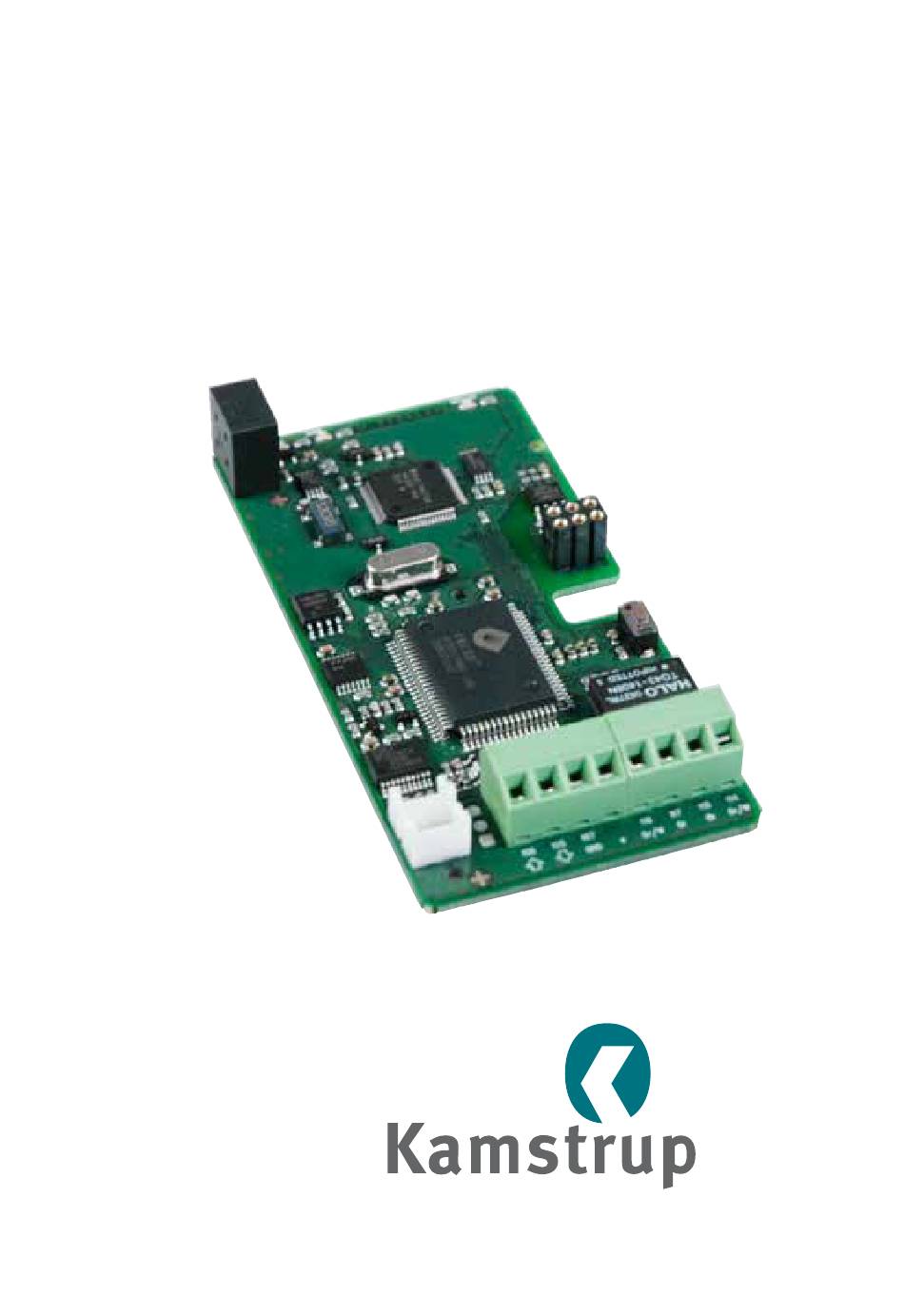

- Page 1 Installation instructions IP201 English Kamstrup A/S Industrivej 28, Stilling, DK-8660 Skanderborg Tel: +45 89 93 10 00 · Fax: +45 89 93 10 01 info@kamstrup.com · www.kamstrup.com...
-
Page 2: Table Of Contents
Contents Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Connection . -
Page 3: Mounting
1 Mounting Typically, the module is supplied mounted directly in RF Concentrator or similar equipment. Example of mounting in RF Concentrator... -
Page 4: Connection
NAT (Network Address Translation). 3 Configuration The IP201 module is always supplied configured with either default IP settings or custom IP settings. These settings can be changed subsequently by using IP Tool, which can be obtained by contacting Kamstrup. - Page 5 Connection to PC: Terminal block No . on T-568B Colour code the PCB Orange / White Orange Green Green / White Ethernet connection...
-
Page 6: Installation
3. The Err diode starts flashing when the host is recognised (meter or concentrator have been detected). 4. The Err diode turns off when the module has been registered by the collecting server. If the module cannot connect to the meter and/or server, IP201 will restart. Start-up ACT/LINK WINK... -
Page 7: Localization Of Light-Emitting Diodes (Extract Of The Module)
6 Localization of light-emitting diodes (extract of the module) Action Wink Error 7 Status LEDs The module has a number of light-emitting diodes. They are used for indicating the status and service. 7 .1 Action The Action diode indicates network activity. During normal operation, this diode lights/flashes. -
Page 8: The Service Button
The service button is used by Kamstrup in connection with service and reprogramming of the module. 8 Port B Port B is a serial (RS232/Kamstrup 3-wire) connection that can be used for connecting additional external equipment. For instance: • Connection of additional RF concentrator Port B is always configured for 9600,8,N,1.
