Aqua One MariSys 240 Quick Setup Manual

Aqua One MariSys 240 Quick Set Up Guide
Priming Pump
Power Head
Air Pump
Check Valve
Blue Adapter
Hose Clamps
Air Control Valve
Marisys

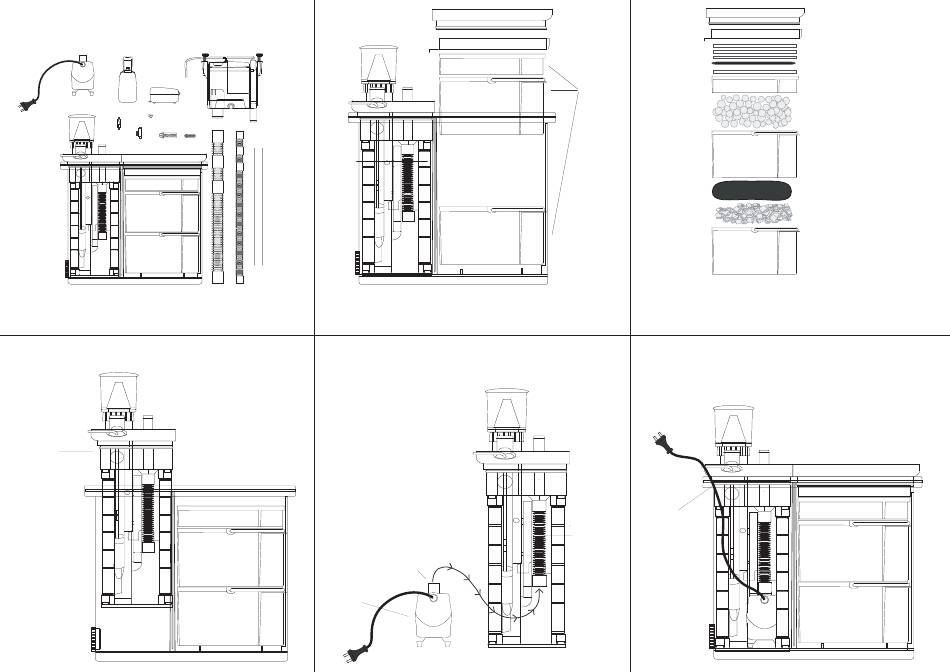

1. Remove all of the components from the box, lay them out and
identify them. Refer to the Exploded View sheet also.
4. Remove the Protein Skimmer / Power Head Housing.
Protein Skimmer
/ Power Head
Housing
Overflow Box
Hoses & Airline
2. Remove Media Access Lid, Drip Tray and all Media Baskets.
5. Connect the Small piece of flexible hose to the Outlet of the Power
Head and position the Power Head in the housing. Feed the power
cord through the side of the housing.
Outlet
Power Head
Media Baskets
3. Remove Carbon Pillow and CeramiSub from their plastic bags. Wash
all media under clean tap water and place all media back into the
Media Baskets and back into the Filter Box. Do not replace the Drip
Tray or Media Access Lid.
6. Slide the Housing back into the Filter Box, ensure the power cord
from the Power Head is fed through the Power Head Cut out. DO NOT
force the Housing in. Remove and try again.
Power Cord
Cutout
Flexible Tubing
Media Access Lid
Drip Tray
3 x Wool Pads
Activated Carbon Pad
Diffuser
1
Bio Balls
2
Activated Carbon Pillow
CeramiSub
3
Complete MariSys
