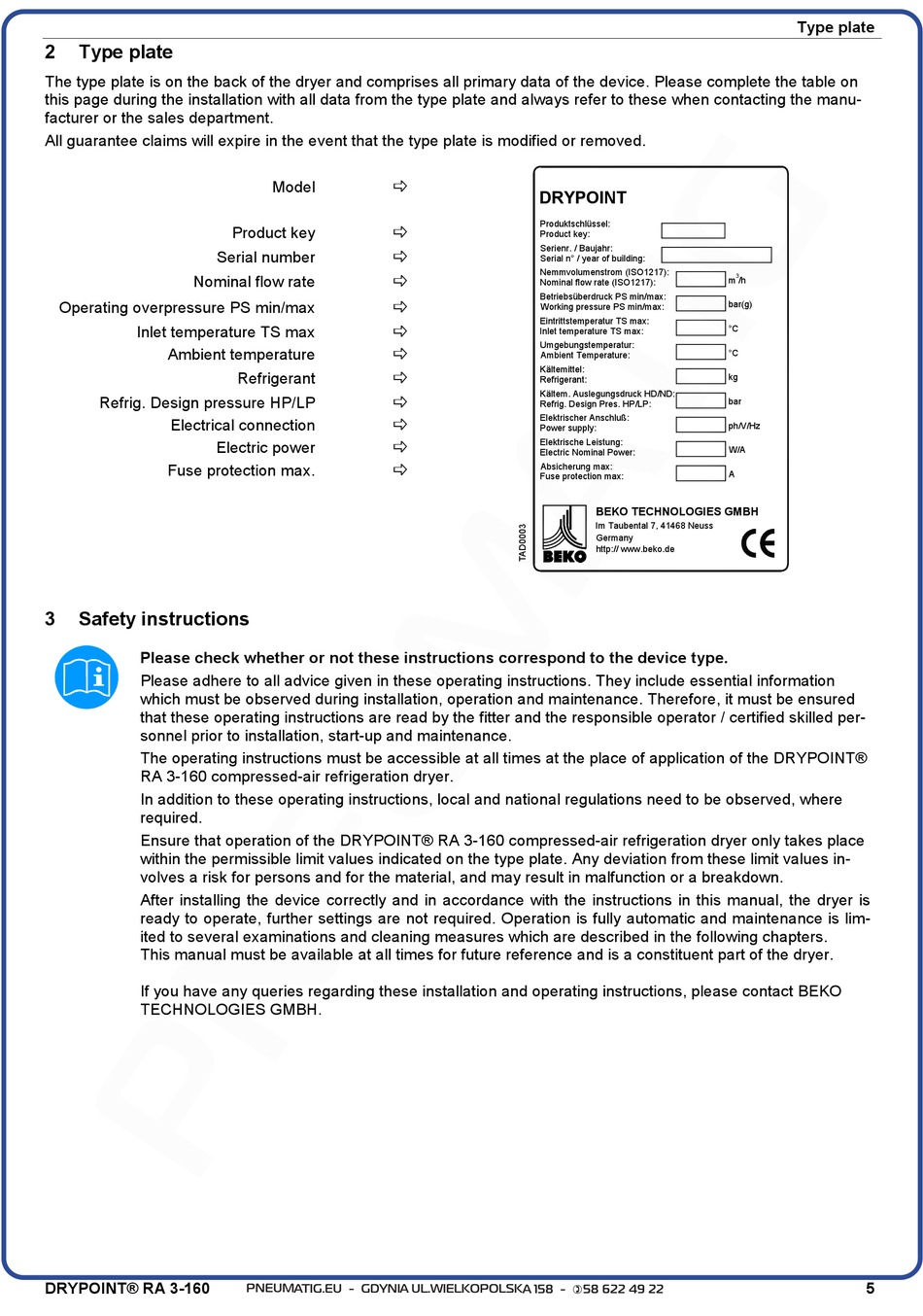

Type plate

The type plate is on the back of the dryer and comprises all primary data of the device. Please complete the table on
this page during the installation with all data from the type plate and always refer to these when contacting the manu-
facturer or the sales department.
All guarantee claims will expire in the event that the type plate is modified or removed.
Serial number
Nominal flow rate
Operating overpressure PS min/max
Inlet temperature TS max
Ambient temperature
Refrig. Design pressure HP/LP
Electrical connection
Electric power
Fuse protection max.
3

Safety instructions

Pos : 2 /Beko Tec hnisc he Dokumentati on/Gl obal e T exte/Allgemei ner Hi nweis BM @ 0\mod_1183615737313_6.doc @ 4004
Pos : 3 /Beko Tec hnisc he Dokumentati on/Sic herheit/Hi nweis Anlei tung BEKO @ 0\mod_1184147787557_6.doc @ 5758
Please check whether or not these instructions correspond to the device type.
Please adhere to all advice given in these operating instructions. They include essential information
which must be observed during installation, operation and maintenance. Therefore, it must be ensured
that these operating instructions are read by the fitter and the responsible operator / certified skilled per-
sonnel prior to installation, start-up and maintenance.
The operating instructions must be accessible at all times at the place of application of the DRYPOINT®
RA 3-160 compressed-air refrigeration dryer.
In addition to these operating instructions, local and national regulations need to be observed, where
required.
Ensure that operation of the DRYPOINT® RA 3-160 compressed-air refrigeration dryer only takes place
within the permissible limit values indicated on the type plate. Any deviation from these limit values in-
volves a risk for persons and for the material, and may result in malfunction or a breakdown.
After installing the device correctly and in accordance with the instructions in this manual, the dryer is
ready to operate, further settings are not required. Operation is fully automatic and maintenance is lim-
ited to several examinations and cleaning measures which are described in the following chapters.
This manual must be available at all times for future reference and is a constituent part of the dryer.
If you have any queries regarding these installation and operating instructions, please contact BEKO
TECHNOLOGIES GMBH.
DRYPOINT® RA 3-160
 
Model
 
Product key
 
 
 
 
 
 
Refrigerant
 
 
 
 
PNEUMATIG.EU - GDYNIA UL.WIELKOPOLSKA 158 -  58 622 49 22
DRYPOINT
Produktschlüssel:
Product key:
Serienr. / Baujahr:
Serial n° / year of building:
Nemmvolumenstrom (ISO1217):
Nominal flow rate (ISO1217):
Betriebsüberdruck PS min/max:
Working pressure PS min/max:
Eintrittstemperatur TS max:
Inlet temperature TS max:
Umgebungstemperatur:
Ambient Temperature:
Kältemittel:
Refrigerant:
Kältem. Auslegungsdruck HD/ND:
Refrig. Design Pres. HP/LP:
Elektrischer Anschluß:
Power supply:
Elektrische Leistung:
Electric Nominal Power:
Absicherung max:
Fuse protection max:
BEKO TECHNOLOGIES GMBH
Im Taubental 7, 41468 Neuss
Germany
http:// www.beko.de
Type plate
3
m /h
bar(g)
°C
°C
kg
bar
ph/V/Hz
W/A
A
