Niko-Servodan 99-680WA1 EnOcean Quick Manual

!
99-680WA 1 EnOcean
Tilstedeværelsessensor DALI, 4 zoner
Presence detector DALI, 4 zones
Präsenzmelder DALI, 4 Zonen
Détecteur de présence DALI, 4 zone
Närvarosensor DALI, 4 zoner
ø2,7 m
5,5 m 2
Tilstedeværelsessensor DALI, 4 soner
Ø5,4 m
23 m 2
Ø8 m
95
50 m
2
+i
Ø6 m
28 m 2
Ø12 m
113 m
2
ø2,7 m
5,5 m
Ø5,4 m
23 m
Ø8 m
ø2,7 m
50 m
5,5 m
Ø5,4 m
23 m
Ø8 m
50 m
Ø6 m Ø6 m
28 m
Ø12 m
Ø12 m
113 m
Ø6 m
99QG680WA1_03_R2_170419
28 m
Ø12 m
113 m
DALI
12 V DC/
200 mA 100-1000 lux 5 min.- ∞ IP 20
360° 113 m² 2,4–3 m +5°C–+40°C
90
5
2
2
30%
2
2
2
2
2
2
Niko-Servodan A/S Stenager 5
•
2
2

77

Presence detector DALI, Master
99-680WA1
DK-6400 Sønderborg tel +45 7442 4726 info@niko.dk
• • •
ATTENTION!
Commissioning by the Niko Sensor Tool app
- select detector 41-680/ALL
using IR-dongle 41-936 for smartphone
Commissioning
via IR remote
control 41-934
2 ) M ( X 8 7 1 - 4 L I A D
WAGO, Winsta Mounting plate
®
Item No. 770-625
WAGO, Winsta Distribution connector
®
Item No. 770-618
Presence detector DALI, Slave
99-659WA1
www.niko.dk
•

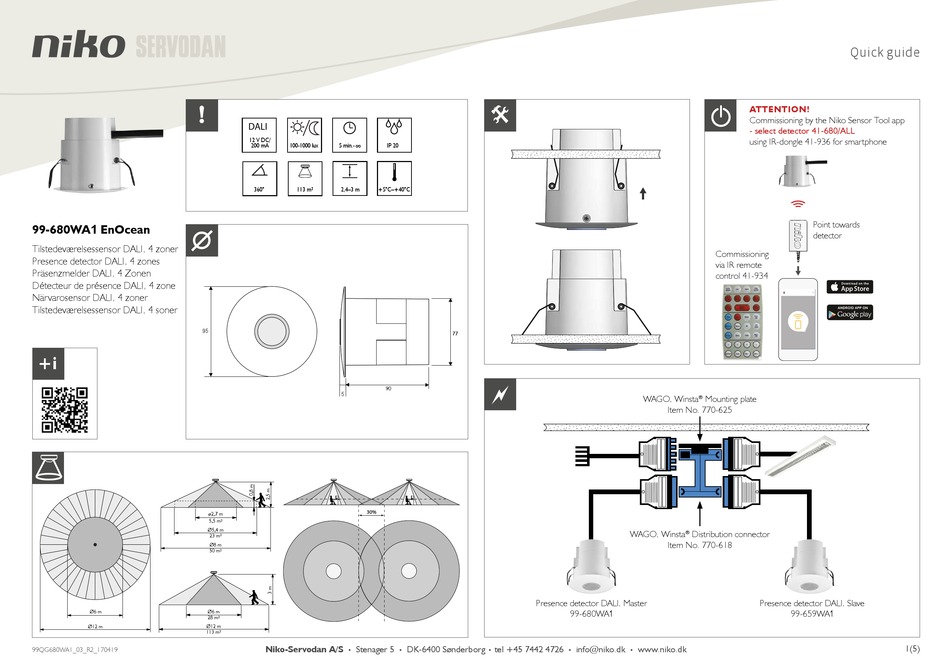

Quick guide
Point towards
detector
