- Page 1 IST 03 C 080 - 01 BALI RTFS INSTALLATION OPERATION AND MAINTENANCE CE 49BN3788...
- Page 2 Dear Customer, Thank you for choosing and buying one of our boilers. Please read these instructions carefully in order to install, operate, and maintain this equipment properly.
- Page 3 FONDITAL does not accept any con- IMPORTANT tractual or extra-contractual responsi- For equipment powered by gas fuel, if bility for any damage caused due to...
- Page 4 INDICE Warnings pag. 1 General Notes for the Installer, Maintenance Technician and User pag. 2 Instructions for the User pag. 4 Control Panel pag. 4 Operating the Boiler pag. 5 1.2.1 Starting Up pag. 5 1.2.2 Burner Cut-Out pag. 5 1.2.3 Cut-Out Excess Temperature pag.
-
Page 5: Instructions For The User
1. INSTRUCTIONS FOR THE USER 1.1 CONTROL PANEL fig. 1 1. General switch with line light (Green) 6. Burner cut-out LED 2. Reset Button 7. Burner operation LED (Yellow) 3. Temperature adjustment for the heating water 8. Thermometer 4. Heating Pump operation light (Yellow) 9. - Page 6 FONDITAL accepts no responsi- • Set the ambient temperature using bility for damage to people, ani- the ambient thermostat (where fitted). 1.2.4 Cut-Out due to a fault in the mals, or property that may arise •...
-
Page 7: Technical Characteristics And Dimensions

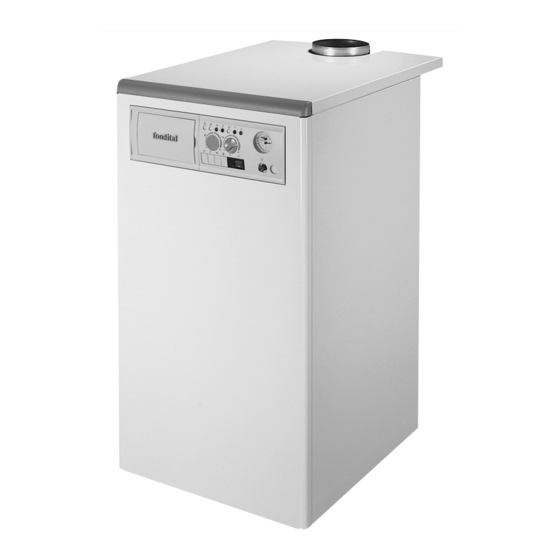

2. TECHNICAL CHARACTERISTICS AND DIMENSIONS 2.1 Technical Characteristics The BALI RTFS is a boiler with a • Provision for electrical connection high performance heat-exchange for a heating pump. casing that works with gas burners • Provision for an electrical collec- at atmospheric pressure. - Page 8 2.2 Dimensions fig. 2 Model FEED RETURN RTFS E 18 G 1” G 1” G 1/2” G 1” G 1” G 1/2” RTFS E 24 RTFS E 32 G 1” G 1” G 1/2” RTFS E 36 G 1” G 1” G 1/2”...
- Page 9 2.3 Operating Data MODELS RTFS E 18 RTFS E 24 RTFS E 32 RTFS E 36 EC Performance Class EC PIN 49BN3788 II2H3+ Category C12, C32, C42, C52, C82 Type Thermal Power 36,5 Thermal Capacity 26,6 34,4 39,2 Performance at nominal load 89,8 90,2 93,1...
-
Page 10: Instructions For The Installer
80 mm diameter pipes. This BALI boiler must be installed in FONDITAL accepts no responsibi- The smoke ducts from the boiler are compliance with current laws and lity for damage to people, animals,... - Page 11 Notes: - Models RTFS 18 and RTFS 24: for The two terminals may not be posi- - Reduce the maximum length by 1 installations with an equivalent length tioned on opposite sides. metre for each 90° bend. of less than 2+2 metres, install a 42 - Reduce the maximum length by 0,5 mm diaphragm on the air intake.
- Page 12 3.2.10 Installation of original kits checking for leaks using a naked • Air intake/smoke flue double 80 flame is forbidden. FONDITAL provides original kits for mm diameter piping Use the products made for this installing clock programmers, cards Configuration allowed for maximum...
- Page 13 •Having started the boiler and Close the pressure socket carefully brought the system up to its working after bleeding the system. temperature, stop the pump and repeat the air bleeding operations. 3.4.2 Starting Up and Switching Off • Allow the system to cool and return the water pressure to 0,8 / 1 bar.
- Page 14 3.5 Wirings diagrams BALI RTFS E IG: Main Switch (marked “on/off” on the printed circuit). Heating thermostat (marked “Tr” on the printed circuit). Lon: Power on indication TS: Safety Thermostat L3: Heating circulation unit indica- tion Fu1: Protection fuse F4A 250V L4: Burner ON indication BC: Flame check L5: Safety thermostat indication...
-
Page 15: Maintenance
3.6 Gas Transformation le, checking that this is as indicated in the gas supply pipe tighten the nut that the technical data table. secures the olive. Changing a boiler over from natural • Unscrew the pressure regulating cap • Remove the LPG nozzle on the main gas to LPG and vice versa is only to on the gas valve and tighten the pres- burner and fit the natural gas nozzle,... - Page 16 25078 VESTONE (Brescia) Italia - Via Mocenigo, 123 Tel. 0365/878.31 - Fax 0365/878361 e mail: fondital@fondital.it - export01@fondital.it www.fondital.it Fondital reserves the right to make any changes it deems necessary without notice. Fondital Advertising Office IST 03 C 080 - 01 Giugno 2003 (06/2003)
