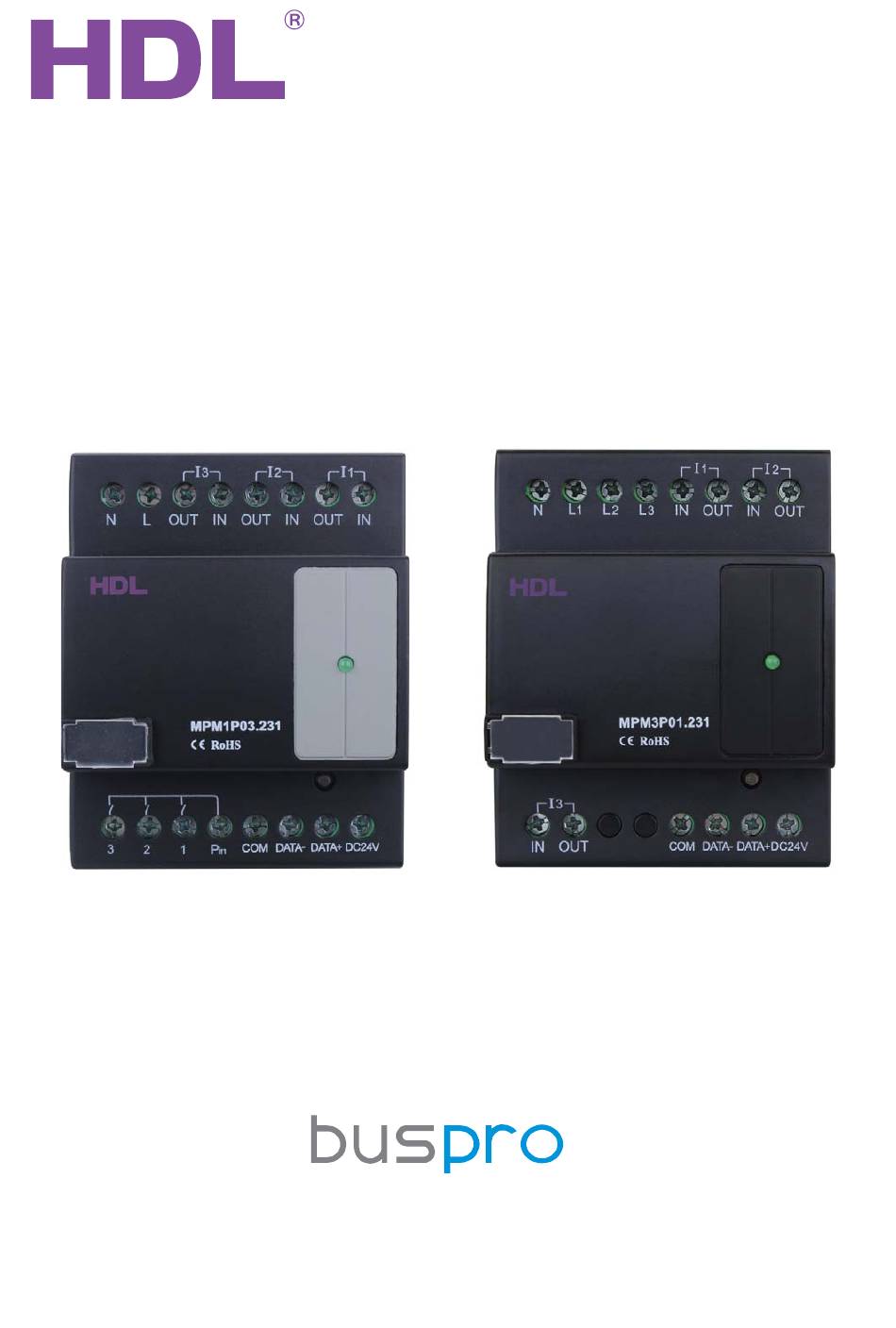

- Page 1 User manual Intelligent Digital Power Meter SB-DN-PM1P03 SB-DN-PM3P01 www.hdlautomation.com...
-
Page 2: Table Of Contents
2. Safety Instructions ......................3 3. Technical Data ....................... 4 4. Installation ........................5 4.1 Wiring ........................5 4.2 HDL Bus Pro Description ..................6 4.3 Commissioning ....................6 5. Software Configuration ....................7 5.1 Basic Information ....................7 5.1.1 Change the ID of the device ..............7 5.1.2 Date Settings ..................... -
Page 3: Overview
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 1. Overview 1.1 General Information 1.1.1 Description Intelligent digital power meter which has the functions of electric parameter measurement and record. It can be used for power consumption recording and it can record one year power consumption. -
Page 4: Serial Numbers
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 1.1.3 Serial Numbers SB-DN-PM1P03 SB-DN-MP3P01 Single phase Three phase 3 Separate Channels 1 Channel per Phase Max. 16A per channel Max. 10A per channel 1.2 Functionnalities Description Can measure the voltage, current, power, active power, reactive power, apparent power, power factor, etc. -
Page 5: Device Description
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 1.3 Device Description ○ a Live/Neutral line ○ b Current IN/OUT Port ○ c LED Indicator ○ d Programming Button ○ e HDL-Buspro ○ f 5A Relay Output 2. Safety Instructions Screw down strength is less than 0.4Nm ... -
Page 6: Technical Data
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 3. Technical Data SB-DN-PM1P03 SB-DN-PM3P01 Electric Parameters Working voltage DC12~30V BUS power consumption 60mA/DC24V Measuring voltage AC 0~250V Maximum current in each channel Environmental Conditions Working temperature 0℃~45℃ Working relative humidity Up to 90% Storage temperature -20℃... -
Page 7: Installation
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 Protection degree IP20 4. Installation 4.1 Wiring SB-DN-PM1P03: Connection for power meter Connection for power meter without current transformer with current transformer SB-DN-PM3P01: Connection of 3 Phase – 4 wire Connection of 3 phase – 4 wire... -
Page 8: Hdl Bus Pro Description
Yellow 4.3 Commissioning Method One: a) open the HDL-BUS Pro Setup tool. b) keep pressing the programming button for 3 seconds, it turns to red color. c) on the software, click the “Address management”, and select the “Modify address (when device button is pressed)”, it will show a window like this: d) click the “Indicate initial address”, then it will show the ID of this device. -
Page 9: Software Configuration
5.1 Basic Information 5.1.1 Change the ID of the device Every HDL-BUS device has one Subnet ID and one Device ID, the Device ID should be unique in its subnet and the Subnet ID should be kept consistent with the Gateway (typically the SB-DN-1IP or HDL-MBUS01IP.431). -
Page 10: Other Information
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 5.2.2 Other Information - Detect Interval Time Setup Interval time to refresh the information, setting range is 1-60s - Clear the Electricity Degree Clear the active and inactive electricity degree to 0, needs to wait for 13s when clearing. -
Page 11: Functional Logic
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 5.3 Functional Logic You can set up to 24 logics and in each logic you can combine up to 7 inputs (conditions), trigger up to 10 targets when the logic is true and another 10 targets when false. -
Page 12: Relation
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 - Chn 2 Current (A) Condition is satisfied when chn 2 current is in the range you set. - Chn 3 Current (A) Condition is satisfied when chn 3 current is in the range you set. -
Page 13: Application
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 - Logic False Delay When the logic is false, you can choose to delay some certain time before triggering targets. Setting range: 0-36000s - Trigger when False When the logic is false, you can set up to 10 targets to trigger 5.3.5 Application... -
Page 14: View Power Consumption
5.4 View Power Consumption Can check each channel’s power consumption every 5 minutes, every hour, every day, every month and every week in HDL BUS setup tool. Also can check the power consumption from the application software, e.g iLife. Here check channel1’s power consumption by Day, from 2014-09-01 to 2014-09-04. -
Page 15: Adjust Power Meter
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 consumption upon the TChart. 5.5 Adjust Power Meter Use special equipment to adjust the parameters when in factory, the password: 85521566. Do not allow to modify them when the power meter is in use. Intelligent Digital Power Meter... -
Page 16: Note
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 6. Note ………………………………………………………………………………………………………. ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… Intelligent Digital Power Meter – User Manual...
