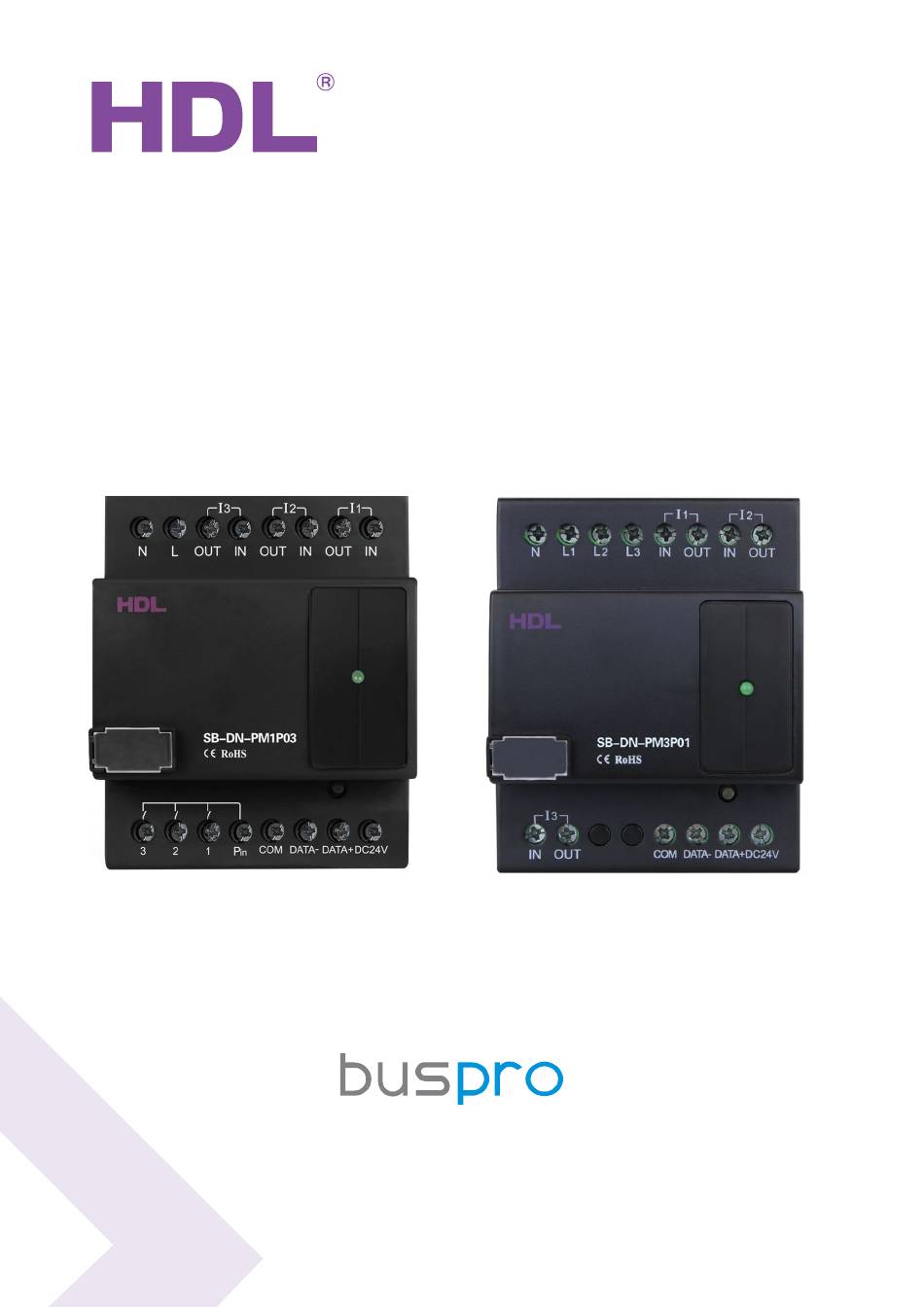

- Page 1 User Manual Intelligent Digital Power Meter SB-DN-PM1P03 SB-DN-PM3P01 www.hdlautomation.com...
- Page 2 User Manual SB-DN-PM1P03 / SB-DN-PM3P01 Document updates: Version Date Description V1.0 2015.01.23 Finish new document Intelligent Digital Power Meter–User Manual...
-
Page 3: Table Of Contents
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 INDEX 1. Overview............................1 1.1 General Information......................1 1.1.1 Description.......................1 1.1.2 Mounting........................1 1.1.3 Serial Numbers.......................2 1.2 Functions..........................2 1.3 Device Description......................3 2. Safety precautions........................3 3. Technical Data..........................4 4. Installation............................. 4 4.1 Wiring...........................5 4.2 Commissioning........................5 5. -
Page 4: Overview
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 1. Overview 1.1 General Information 1.1.1 Description The SB-DN-PM1P03 and SB-DN-PM3P01 are intelligent digital power meters, which are able to measure and record various electrical parameters. They are able to record the power consumption for 1 year, as well as the current, voltage, power, and power factor. The modules can also accept current, voltage, power consumption, time, UV switch, as logic inputs. -
Page 5: Serial Numbers
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 1.1.3 Serial Numbers SB-DN-PM1P03 SB-DN-MP3P01 Single phase Triple phase 3 Separate Channels 1 Channel per Phase Max. 16A per channel Max. 10A per channel 1.2 Functions Can measure the voltage, current, power, active power, reactive power, apparent ... -
Page 6: Device Description
○ b Current IN/OUT Port ○ c LED Indicator ○ d Programming Button ○ e HDL Buspro ○ f 5A Relay Output 2. Safety precautions Screw down strength is less than 0.4Nm Installation Position: Distribution Box (DB ) Do not make wrong connection on Bus interface, it will damage the Bus interface of ... -
Page 7: Technical Data
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 3. Technical Data SB-DN-PM1P03 SB-DN-PM3P01 Electric Parameters Working voltage DC12~30V BUS power consumption 60mA/DC24V Measuring voltage AC 100~250V Maximum current in each channel Environmental Conditions Working temperature 0℃~45℃ Working relative humidity Up to 90% Storage temperature -20℃... -
Page 8: Wiring
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 4. Installation 4.1 Wiring SB-DN-PM1P03: Connection for power meter Connection for power meter without current transformer with current transformer SB-DN-PM3P01: Connection of 3 Phase – 4 wire Connection of 3 phase – 4 wire Power Meter without current transformer Power Meter with current transformer Intelligent Digital Power Meter –... -
Page 9: Commissioning
5.1 Basic Information 5.1.1 Changing the device ID Every HDL Buspro device has one Subnet ID, and one Device ID. The device ID should be unique in its subnet, and be kept consistent with the Gateway (typically the SB-DN-1IP Intelligent Digital Power Meter – User Manual... -
Page 10: Setting The Date
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 or HDL-MBUS01IP.431). 5.1.2 Setting the date With the built in clock chip, the date and time can be set manually or automatically from a PC. The password to save modifications made to the date/time is 85521566. The time signal can also be broadcast to the system. -
Page 11: Other Information
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 5.2.2 Other Information - Setting Detect Interval Time The interval time to refresh the information has a range from 1-60 seconds. - Clear the Electricity Degree Clear the active and inactive electricity degree to 0, a user must wait at least 13 seconds to ensure effective clearing. -
Page 12: Logic Functions
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 When there is no current transformer, the rate should be 1. 5.3 Logic functions A user can set up to 24 logics, and in each logic 7 inputs (conditions) can be combined. From this 10 targets can be triggered when the logic is true, and another 10 when false. 5.3.1 Logic information - Logic No. -
Page 13: Relation
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 - Chn 1 Current (A) This condition is satisfied when chn 1 current is within the range set by the user. - Chn 2 Current (A) This condition is satisfied when chn 2 current is within the range set by the user. - Chn 3 Current (A) This condition is satisfied when chn 3 current is within the range set by the user. -
Page 14: Application
User Manual SB-DN-PM1P03 / SB-DN-PM3P01 When the logic is true, a user can trigger up to 10 targets. - Logic False Delay If the logic is false, a user can choose to delay the triggering of targets. The delay range is 0-36000 seconds. - Page 15 User Manual SB-DN-PM1P03 / SB-DN-PM3P01 c) Select the logic relation as ‘AND’, it is advised to set a delay, the delay set here is 10 seconds. d) Turn off the channel 1 and channel 2 relay modules, then turn off the AC in the ‘Trigger when true’...
-
Page 16: View Power Consumption
5.4 View Power Consumption Each channel’s power consumption can be checked every 5 minutes, every hour, every day, every month, and every week using the HDL BUS setup tool. (The consumption can also be checked from the iLife application.) To check the daily power consumption from the 2014-09-01 to 2014-09-04, the following steps must be taken: a) Select Channel No.1... -
