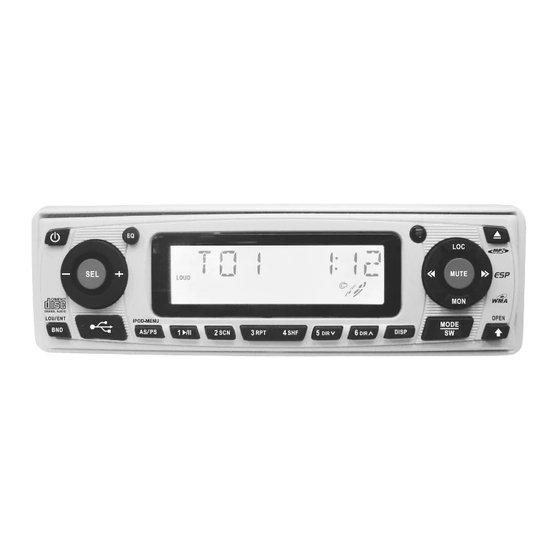

Fusion MS-CD60 User & Installation Manual

Marine cd/mp3 receiver
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Specifications and design are subject to change without notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MS-CD60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fusion MS-CD60

Summary of Contents for Fusion MS-CD60

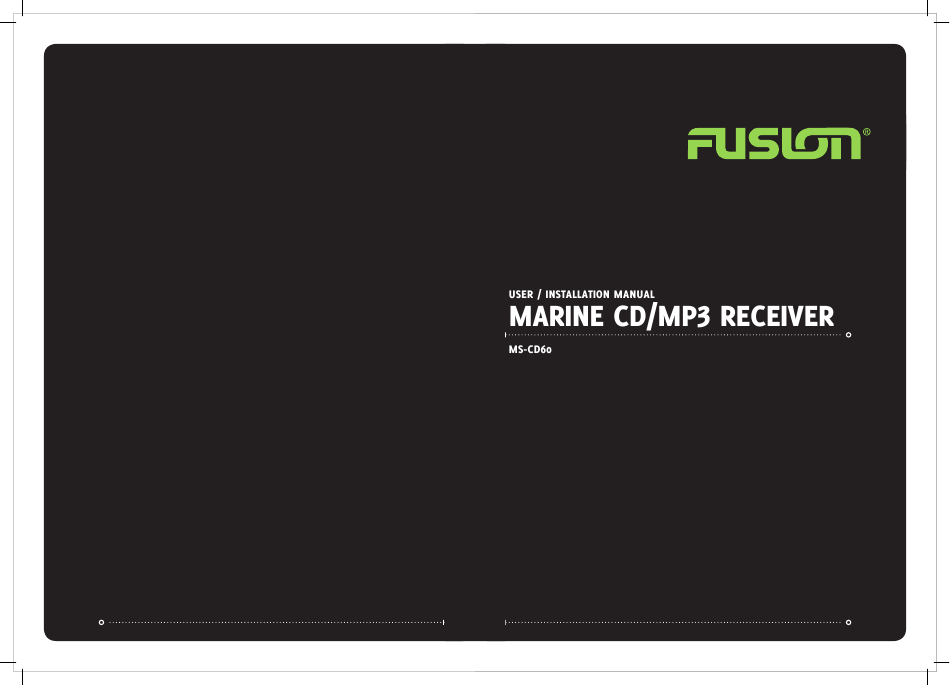

  • Page 1 Specifications and design are subject to change without notice.
  • Page 2 Before installing the unit, please remove the two transit screws. Note: When installing this unit on a vessel, use the two pieces of plastic film (supplied with the unit) to seal the two holes after removing the screws, this will ensure the unit remains water resistant. Mounting Hole Dimensions 178mmW x 178mmD x 50mmH CAUTION: FOR PROPER OPERATION OF THE CD PLAYER, THE CHASSIS MUST BE MOUNTED...
  • Page 3 Press the open button on the face plate Insert the supplied keys into the grooves in the housing until they click (as shown) Pull the levers towards you and slowly remove the unit from the cage. To detach the front panel press the open button Then press the release button on the front underside edge and slide the face toward you.
  • Page 4 POWER ON/OFF Press the power ON/OFF button (9) FRONT PANEL RELEASE Press OPEN button (7) to open the front panel SOUND ADJUSTMENT Press the SEL/MENU button (10) repeatedly to cycle the audio mode through bass, treble, balance and fader modes. Press the VOLUME UP button (12) or VOLUME DOWN button (11) to adjust the selected mode.
  • Page 5 Press and hold SEL button (10) to enter Menu Select Mode. Press the VOLUME UP button (12) or the VOLUME If there is no CD loaded press OPEN Button (7) and gently insert the disc until you feel some resistance. The CD DOWN button (11) to adjust the BEEP function.
  • Page 6 TRACK SELECTION SEARCHING ROOT DIRECTORY There are two options to connect an iPod to the unit: Press the button (16) to skip to the previous Press the iPod Menu button (18) three times to enter Option 1: Via the MS–IP15L accessory cable (available separately). track or button (17) to skip to the next track.
  • Page 7 HANDLING COMPACT DISCS (CD/CD-R/CD-RW) - Avoid touching the surface - Avoid exposing the disc to direct sunlight Connect the USB device via the USB interface (26) and playback of MP3/WMA files will start automatically. USB - Ensure the disc is clean mode can be selected with the MODE button (6).
  • Page 8 ..................................................................................PUBLISHED BY FUSION ELECTRONICS LIMITED: YOU CAN HELP PROTECT THE ENVIRONMENT! © Copyright 2009 by FUSION Electronics Limited. Please remember to respect the local regulations: All rights reserved. Specifications and design are Hand in the non-working electrical equipment subject to change without notice.
