Endura TRILENNIUM Series Installation Manual

Handle set - rocky mountain hardware
Hide thumbs Also See for TRILENNIUM Series:

Advertisement

Quick Links

Download this manual See also: Instruction Manual, Installation Manual

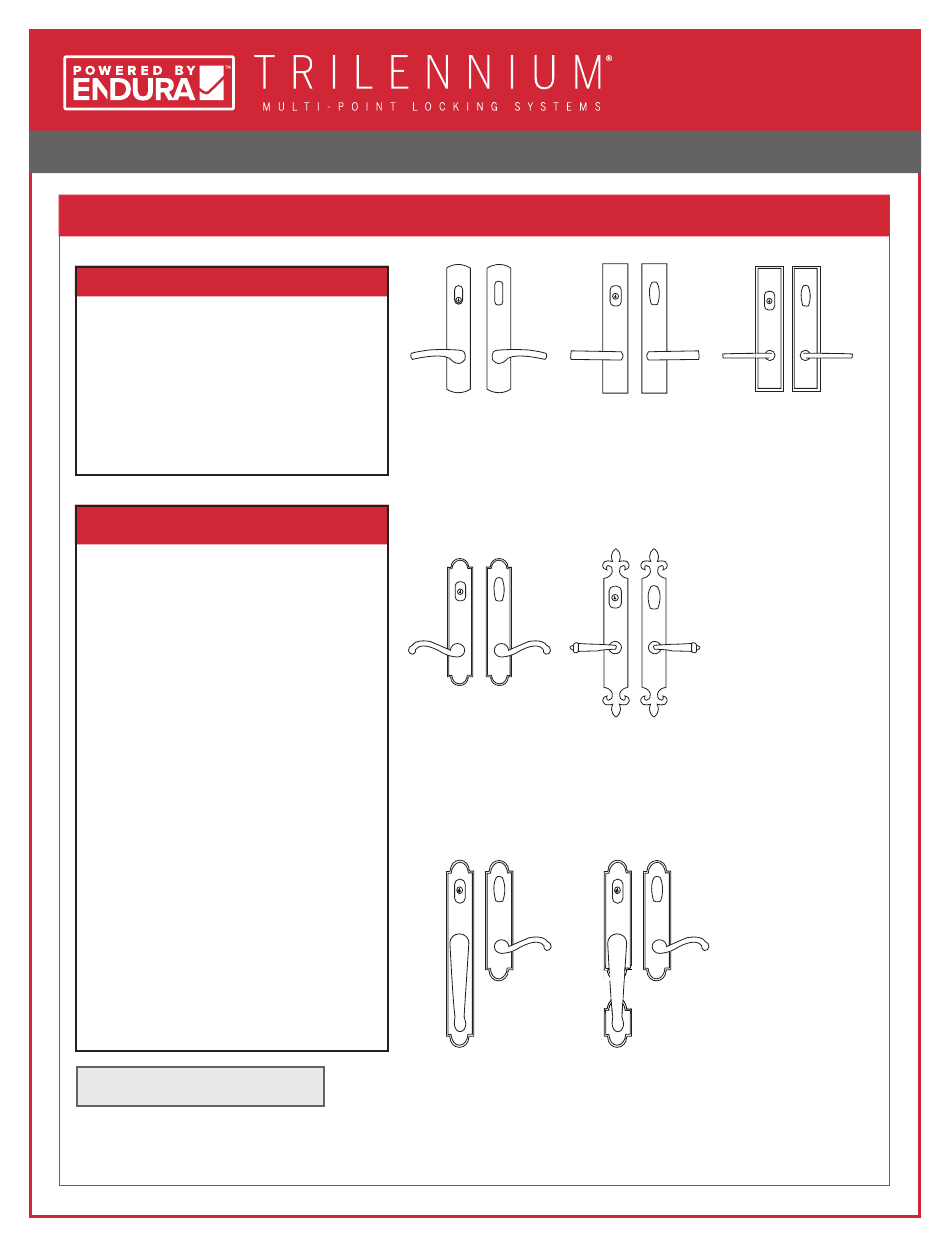

OVERVIEW
TOOLS REQUIRED
• Drill
• 1/4" Drill Bit
• Slotted Screwdriver
• Rocky Mountain Hardware
Mounting Template
(Recommended)
• Vix Bit
PARTS INCLUDED
1. Assembled Interior Escutcheon
2. Assembled Exterior Escutcheon
3. Key Cylinder and Tailpiece with
key (Pre-assembled)
4. 7 mm Spindle
5. 8-32 Threaded Inserts
• (4) Entrance Grip Full Length
• (1) Fleur de Lis Only Lever Set
6. Short Oval Head Machine Screws
• (4) Full Length Entrance Grip
• (1) Fleur de Lis Entry Set
7. (2) Machine Screws
8. (2) Binder Post
Ø 2-1/8" Crossbore Recommended
HANDLE SET INSTALLATION - ROCKY MOUNTAIN HARDWARE
Curved Entry Set
Arched Entry
Entrance Grip
Rectangular
Entry Set
Fleur de Lis Entry
Set
Full Length
Sectional
Entrance Grip
Entry Set
Entry Set
Stepped Entry
Set
Set
1 of 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRILENNIUM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endura TRILENNIUM Series

Summary of Contents for Endura TRILENNIUM Series

  • Page 1 HANDLE SET INSTALLATION - ROCKY MOUNTAIN HARDWARE OVERVIEW TOOLS REQUIRED • Drill • 1/4" Drill Bit • Slotted Screwdriver • Rocky Mountain Hardware Mounting Template (Recommended) • Vix Bit Curved Entry Set Rectangular Stepped Entry Entry Set PARTS INCLUDED 1. Assembled Interior Escutcheon 2.
  • Page 2 HANDLE SET INSTALLATION - ROCKY MOUNTAIN HARDWARE 1. DETERMINE WHICH STYLE OF ROCKY MOUNTAIN HARDWARE YOU ARE INSTALLING TYPE I TYPE II Arched, Curved, Fleur de Lis Rectangular, or Lever Set Stepped Lever Page 3 Page 5 Ø 2-1/8" Crossbore Ø...
  • Page 3 HANDLE SET INSTALLATION - ROCKY MOUNTAIN HARDWARE TYPE I Arched, Curved, Rectangular, or Stepped Lever Set 1. INSTALL ROCKY MOUNTAIN HARDWARE MOUNTING TEMPLATE Template Pins A. Position mounting template to the door. • Align Rocky Mountain Hardware template pins with the mounting screw holes in the body of the Trilennium Multi-Point Lock.
  • Page 4 HANDLE SET INSTALLATION - ROCKY MOUNTAIN HARDWARE 2. ENTRY SET PRE-INSTALLATION SET UP A. Check hardware in door for alignment. • Door panel should be open. If not, rotate interior lever actuator hub with flat head screwdriver, Vertical Deadbolt Slot turning away from the edge of the door panel.
  • Page 5 HANDLE SET INSTALLATION - ROCKY MOUNTAIN HARDWARE TYPE II Fleur de Lis Lever Set 1. INSTALL ROCKY MOUNTAIN HARDWARE MOUNTING TEMPLATE Template Pins A. Position mounting template to the door. • Align Rocky Mountain Hardware Template’s pins with the mounting screw holes in the body of the Trilennium Multi-Point Lock.
  • Page 6 HANDLE SET INSTALLATION - ROCKY MOUNTAIN HARDWARE 2. FLEUR DE LIS HANDLE SETS INSTALLATION A. Install the exterior escutcheon first, then hold in place. • Install an 8-32 Threaded Insert into the top hole closest to the edge on the interior face of the door. •...
  • Page 7 HANDLE SET INSTALLATION - ROCKY MOUNTAIN HARDWARE TYPE III Arched, Curved, Rectangular, or Stepped Sectional Entrance Grip 1. INSTALL ROCKY MOUNTAIN HARDWARE MOUNTING TEMPLATE Template Pins Position mounting template to the door. • Align Rocky Mountain Hardware Template’s pins with the mounting screw holes in the body of the Trilennium Multi-Point Lock.
  • Page 8 HANDLE SET INSTALLATION - ROCKY MOUNTAIN HARDWARE 2. ENTRANCE GRIP HANDLES INSTALLATION A. Install exterior escutcheon first, then hold in place. • Insert 1-1/4" Binder Posts into the main exterior escutcheon's 2 holes. • Install the short end of the square drive spindle into the exterior grip assembly, as shown on the right.
  • Page 9 HANDLE SET INSTALLATION - ROCKY MOUNTAIN HARDWARE TYPE IV Arched, Curved, Rectangular, Stepped, or Fleur de Lis Full Length Entrance Grip 1. DETERMINE THE MOUNTING HOLE LOCATIONS A. Position exterior escutcheon on the door. • Locate the Exterior Grip Assembly on the door with the cylinder tailpiece and square drive spindle installed.
  • Page 10 HANDLE SET INSTALLATION - ROCKY MOUNTAIN HARDWARE 2. FULL LENGTH ENTRANCE GRIP HANDLE INSTALLATION A. Install exterior escutcheon first, then hold in place. • Install the Exterior Grip Assembly on the door using the (4) locations from Step 1. DO NOT install the bottom (2) wood screws yet.
  • Page 11 HANDLE SET INSTALLATION - ROCKY MOUNTAIN HARDWARE 4. CHECK OPERATION OF ENTRY SET A. Verify lock and handle operation with the door open. • Rotate thumbturn 90°. Latch bolts should extend to deadbolted position. Rotate 90° the other direction. The latch bolts should retract to original position.
  • Page 12 The information contained in this document is the confidential and proprietary information and trade secrets of Endura Products, Inc. Any disclosure, use or dissemination of such information without the express written permission of Endura Products, Inc. is strictly prohibited. Endura Products, Inc.
