DT Research Tablet Mount Cradle Series Basic Operation Manual

Releasing the Tablet from the Cradle
1. Unlock the Cradle with the key, then slide the latch on the bo�om of the Cradle to
loosen the Top Clasp.
2. Using two hands, hold the Tablet on both sides, pull the tablet up to remove the Tablet
from the Cradle.
NOTE: For proper operation, make sure all necessary connections are in place
before powering on the DT Research Tablet.
Specifica�ons
Table Mount Cradles for
DT301, DT311 and DT313 Series
263 x 177 x 73 mm (for DT301 series)
Dimensions
277 x 177 x 73 mm (for DT311 series)
(H x W x D)
300 x 177 x 73 mm (for DT313 series)
2.42lbs/ 1080g (for DT301 series)
Weight 2.42lbs/ 1080g (for DT311 series)
2.44lbs/ 1130g (for DT313 series)
Operation: 0°C – 40°C
Temperature
Storage: -20°C – 60°C
Humidity 0% – 90% non-condensing
I/O Ports
Ethernet
RJ45 connector for Ethernet x 1
USB 2.0 4
DC-in 1
COM 1
HDMI-out
1
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2019, DT Research, Inc. All Rights Reserved.
signage dtri com
Table Mount Cradle for
DT340T
318 x 201 x 69 mm
3.4lbs/ 1540g
A�er
Operation: 0°C – 40°C
Storage: -20°C – 60°C
0% – 90% non-condensing
RJ45 connector for Ethernet x 1
2
1
1
1
BOG 03119 WMC ENG
Tablet Mount Cradle
BASIC OPERATION GUIDE
INTRODUCTION
Thank you for acquiring the latest addition to DT Research ' s line of tablet accessories – the
Tablet Mount Cradle. Featuring compact, robust design, this cradle provides secure
placement and charging of the tablets whether mounted in vehicles or on the wall. This
innovative cradle provides connection ports and promotes ergonomic, efficient access and
management of DT Research tablets..
Package Contents
• One (1) Tablet Wall Mount Cradle
• One (1) VESA Conversion Bracket
• Two (2) Keys
• Four (4) Silver Bushes for wall mounting
• Four (4) Black Nuts for VESA mounting
• Eight (8) M4 Screws

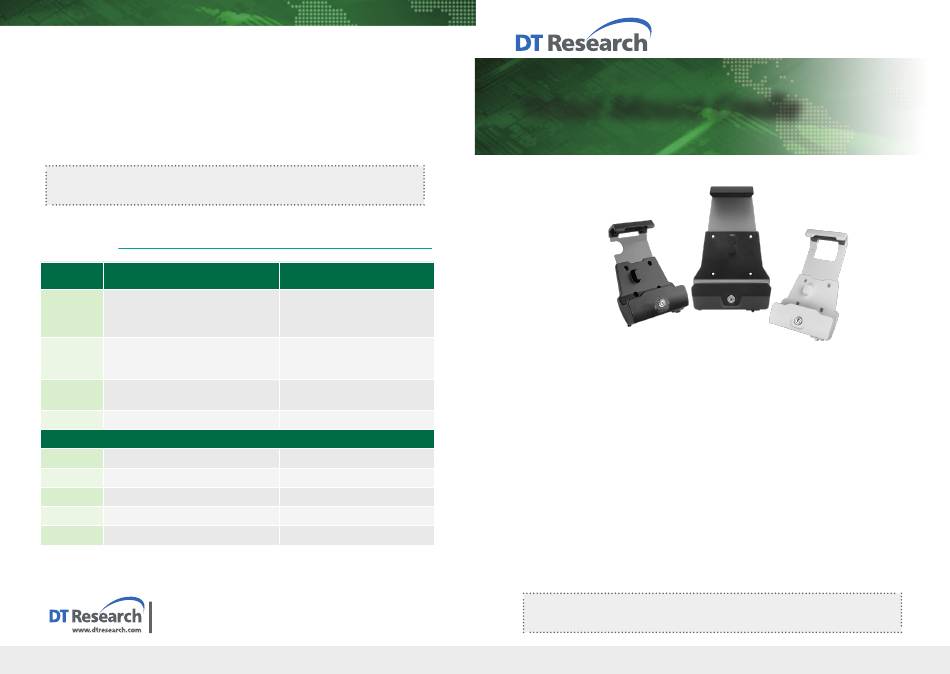

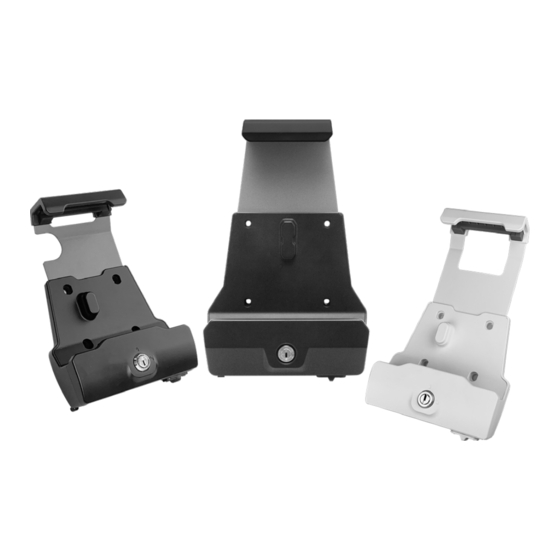

NOTE: The cradle you receive may look slightly different than the one in this picture
based on the exact model ordered.
