Releasing the Tablet from the Cradle
1. Unlock the Cradle with the key, then slide the latch on the bo�om of the Cradle to
loosen the Top Clasp.
2. Using two hands, hold the Tablet on both sides, pull the tablet up to remove the Tablet
from the Cradle.
Specifica�ons
Wall/ Vehicle Mount Cradle
Dimensions (H x W x D)
Weight
Temperature
Operation: 0°C – 40°C; Storage: -20°C – 60°C
Humidity
I/O Ports
Ethernet
USB 2.0
Before
DC-in
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2019, DT Research, Inc. All Rights Reserved.
signage dtri com
198mm x 139mm x 46mm
1.41lbs/ 640g
0% – 90% non-condensing
RJ45 connector for Ethernet x 1
4
A�er
1
BOG 061219 WMCENG

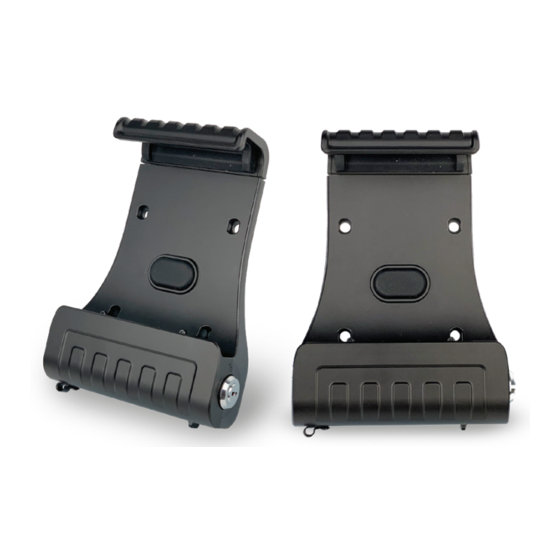

Tablet Mount Cradle
BASIC OPERATION GUIDE
INTRODUCTION
Thank you for acquiring the latest addition to DT Research's line of tablet accessories – the
Tablet Mount Cradle (ACC-008-32). Featuring compact, robust design, this cradle provides
secure placement and charging of the DT370 and DT380 series tablets whether mounted
in vehicles or on the wall. This innovative cradle provides connection ports and promotes
ergonomic, efficient access and management of DT Research tablets.
Package Contents
• One (1) Tablet Wall Mount Cradle
• One (1) VESA Conversion Bracket
• Two (2) Keys
• Four (4) Silver Bushes for wall mounting
• Four (4) Black Nuts for VESA mounting
• Eight (8) M4 Screws
Advertisement
Table of Contents
Related Manuals for DT Research ACC-008-32
Summary of Contents for DT Research ACC-008-32
- Page 1 A�er DC-in Thank you for acquiring the latest addition to DT Research’s line of tablet accessories – the Tablet Mount Cradle (ACC-008-32). Featuring compact, robust design, this cradle provides secure placement and charging of the DT370 and DT380 series tablets whether mounted in vehicles or on the wall.
- Page 2 NOTE: If using a 100 x 100 VESA stand or arm, the VESA Conversion Bracket is NOTE: For proper operation, make sure all necessary connections are in place needed. Please place the VESA Conversion Bracket on the back side of the Cradle, before powering on the DT Research Tablet. and apply the four M4 screws.
