DT Research DT340T Basic Operation Manual

To Secure the Vehicle Mount Cradle System

When the Vehicle Mount Cradle is installed in a vehicle, it is recommended to use the Vehicle
Mount Fixed Bracket to keep the Cradle open and prevent vibrations from making it fold to
closed position.

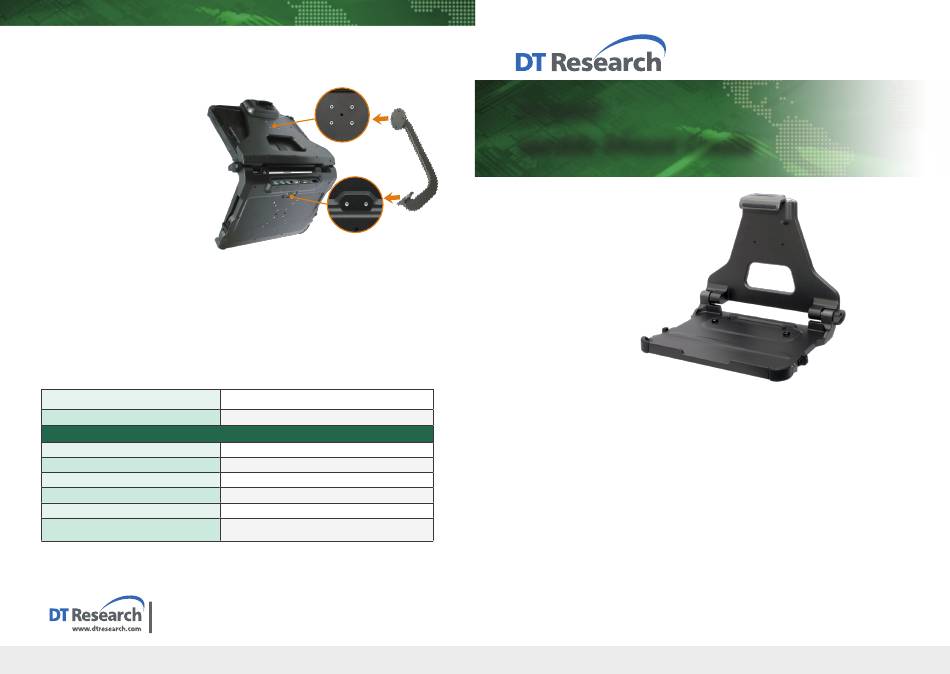

1. Attach the Vehicle Mount Fixed
Bracket, and use two M4*8mm
screws to attach the Bracket to the
bottom of the Cradle.
2. Attach four M4*8mm screws to
fix the Bracket to the back of the
Cradle.

Releasing the Tablet and Keyboard from the Cradle

1. Unlock, then remove the Top Clasp from the Tablet and then fold the tablet towards the keyboard.
2. Push the side latches to unlock the Keyboard.
3. Remove the Tablet and the Keyboard together from the Cradle.
Specifications
Dimensions (H x W x D)
Weight
I/O Ports
Ethernet
COM
USB 2.0
DC-in
GNSS Antenna Connector* (optional)
Mobile Broadband Antenna Connector*
(optional)
* NOTE: The antenna connector only works while there are corresponding modules (optional) in the DT340T Rugged Tablet.
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2019, DT Research, Inc. All Rights Reserved.
signage dtri com
14.4 x 15.98 x 16.97 in/ 366 x 406 x 431 mm
with the Vehicle Mount Fixed Bracket installed
7.07 lbs/ 3.2 kg
Ethernet 10/ 100/ 1000MB Base-T LAN
2
4
1
1
1
BOG012119WMCENG
DT340T
Vehicle Mount Cradle
BASIC OPERATION GUIDE

INTRODUCTION

Thank you for acquiring the DT340T Vehicle Mount Cradle, part of the comprehensive line of
DT Research Rugged Tablet accessories. Featuring robust design and full legacy I/O ports, this
Cradle provides secure placement of the DT340T Rugged Tablet with the Detachable Keyboard
(ACC-003-13), and supports connection to peripherals as well as external mobile broadband/
GNSS antennas when mounted in vehicles. The innovative design promotes ergonomic and
efficient access and management of the DT Research DT340T Rugged Tablet.

Package Contents

• One (1) DT340T Vehicle Mount Cradle
• One (1) Vehicle Mount Fixed Bracket
• Two (2) Keys for the security lock
• Four (4) M4*12mm Screws
• Six (6) M4*8mm Screws
