Pioneer DJM-909 Training Manual page 19

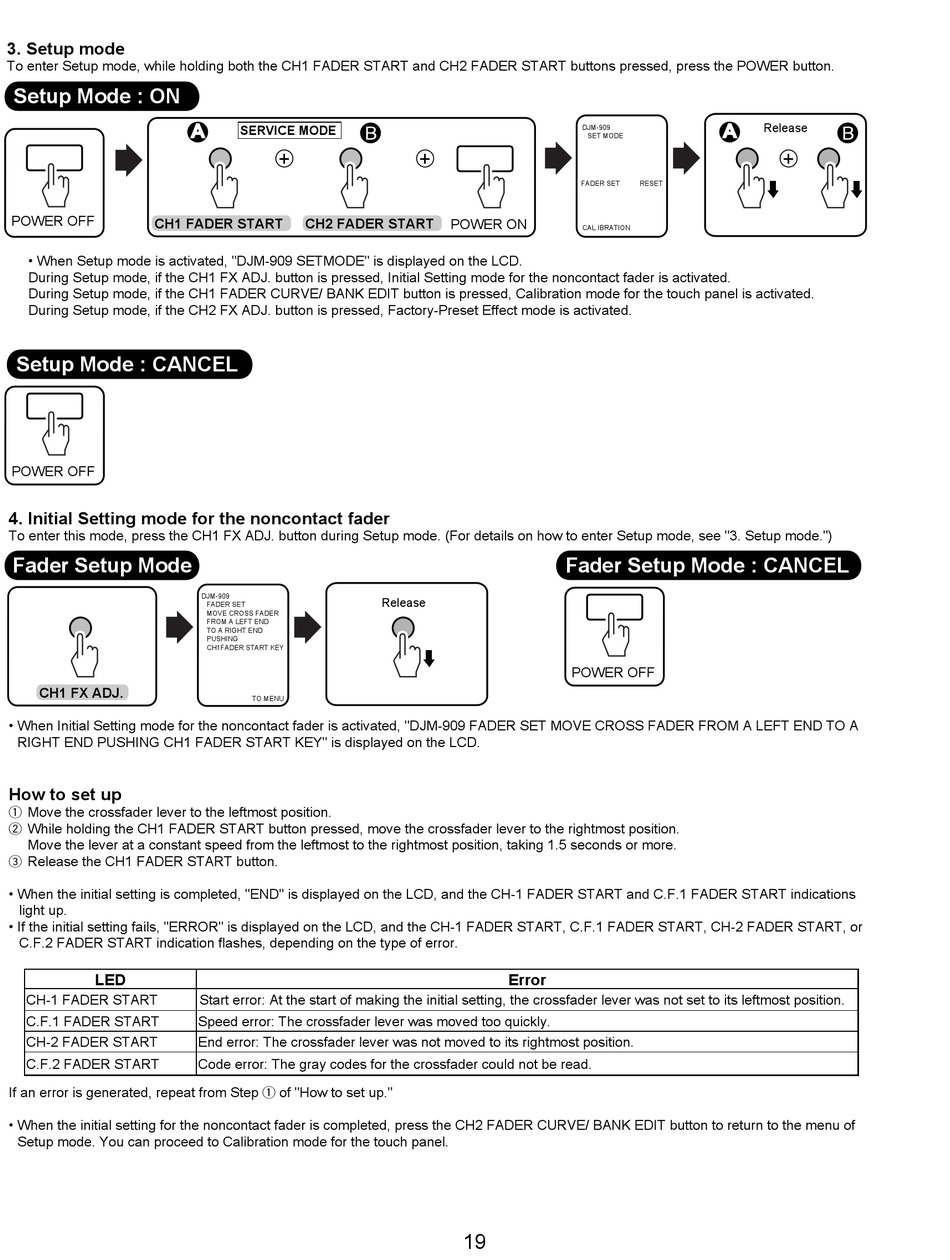

3. Setup mode
To enter Setup mode, while holding both the CH1 FADER START and CH2 FADER START buttons pressed, press the POWER button.
Setup Mode : ON
POWER OFF
CH1 FADER START
• When Setup mode is activated, "DJM-909 SETMODE" is displayed on the LCD.
During Setup mode, if the CH1 FX ADJ. button is pressed, Initial Setting mode for the noncontact fader is activated.
During Setup mode, if the CH1 FADER CURVE/ BANK EDIT button is pressed, Calibration mode for the touch panel is activated.
During Setup mode, if the CH2 FX ADJ. button is pressed, Factory-Preset Effect mode is activated.
Setup Mode : CANCEL
POWER OFF
4. Initial Setting mode for the noncontact fader
To enter this mode, press the CH1 FX ADJ. button during Setup mode. (For details on how to enter Setup mode, see "3. Setup mode.")
Fader Setup Mode : ON
CH1 FX ADJ.
• When Initial Setting mode for the noncontact fader is activated, "DJM-909 FADER SET MOVE CROSS FADER FROM A LEFT END TO A
RIGHT END PUSHING CH1 FADER START KEY" is displayed on the LCD.
How to set up
1 Move the crossfader lever to the leftmost position.
2 While holding the CH1 FADER START button pressed, move the crossfader lever to the rightmost position.
Move the lever at a constant speed from the leftmost to the rightmost position, taking 1.5 seconds or more.
3 Release the CH1 FADER START button.
• When the initial setting is completed, "END" is displayed on the LCD, and the CH-1 FADER START and C.F.1 FADER START indications
light up.
• If the initial setting fails, "ERROR" is displayed on the LCD, and the CH-1 FADER START, C.F.1 FADER START, CH-2 FADER START, or
C.F.2 FADER START indication flashes, depending on the type of error.
LED
CH-1 FADER START
C.F.1 FADER START
CH-2 FADER START
C.F.2 FADER START
If an error is generated, repeat from Step 1 of "How to set up."
• When the initial setting for the noncontact fader is completed, press the CH2 FADER CURVE/ BANK EDIT button to return to the menu of
Setup mode. You can proceed to Calibration mode for the touch panel.
SERVICE MODE
CH2 FADER START
DJM-909
FADER SET
MOVE CROSS FADER
FROM A LEFT END
TO A RIGHT END
PUSHING
CH1FADER START KEY
TO MENU
Start error: At the start of making the initial setting, the crossfader lever was not set to its leftmost position.
Speed error: The crossfader lever was moved too quickly.
End error: The crossfader lever was not moved to its rightmost position.
Code error: The gray codes for the crossfader could not be read.
POWER ON
Release
Error
19
DJM-909
SET MODE
FADER SET RESET
CAL IBRATION
Fader Setup Mode : CANCEL
POWER OFF
Release
