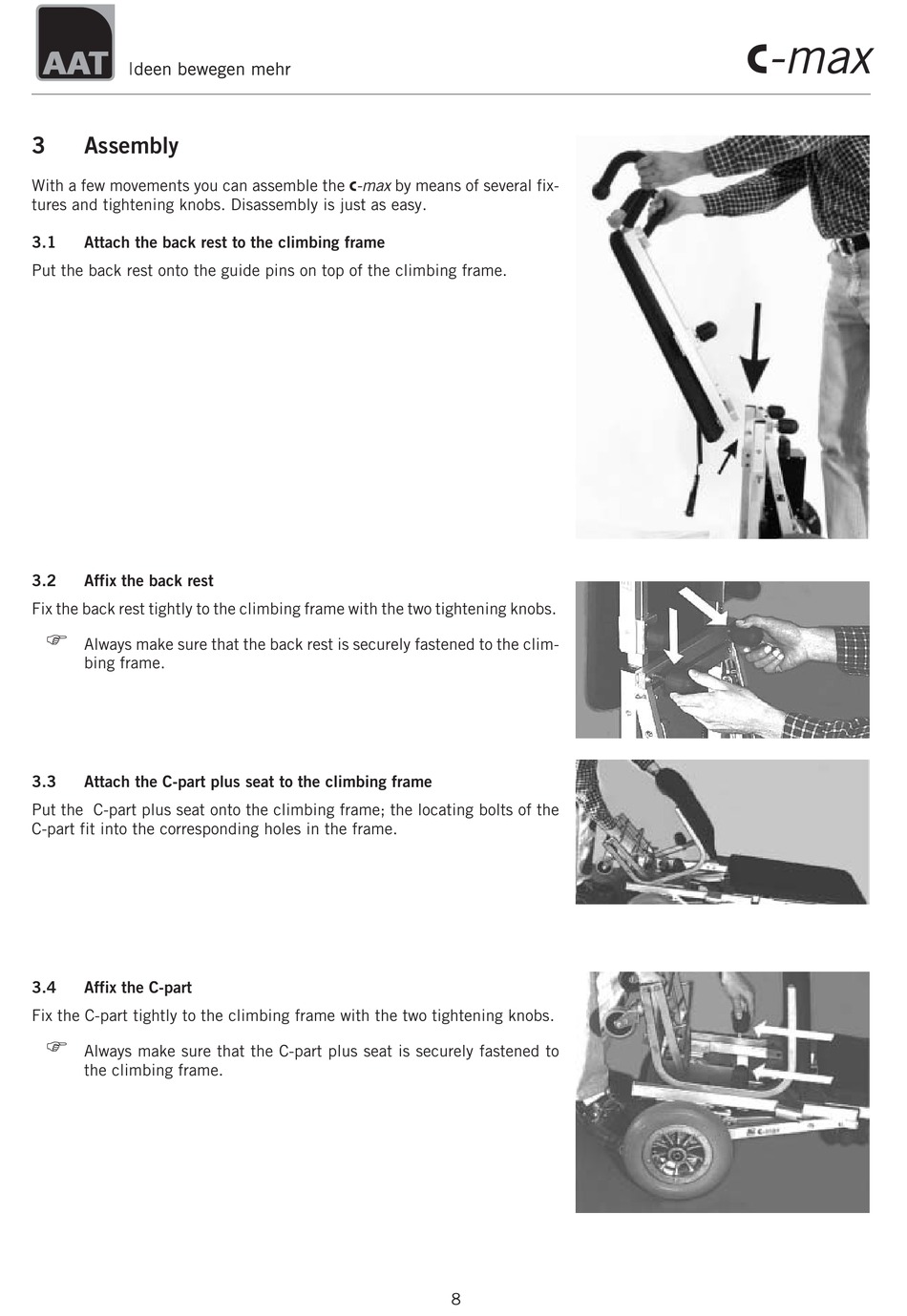

Assembly

With a few movements you can assemble the
tures and tightening knobs. Disassembly is just as easy.
3.1

Attach the back rest to the climbing frame

Put the back rest onto the guide pins on top of the climbing frame.
3.2

Affix the back rest

Fix the back rest tightly to the climbing frame with the two tightening knobs.
F
Always make sure that the back rest is securely fastened to the clim-
bing frame.
3.3

Attach the C-part plus seat to the climbing frame

Put the C-part plus seat onto the climbing frame; the locating bolts of the
C-part fit into the corresponding holes in the frame.
3.4

Affix the C-part

Fix the C-part tightly to the climbing frame with the two tightening knobs.
F
Always make sure that the C-part plus seat is securely fastened to
the climbing frame.
