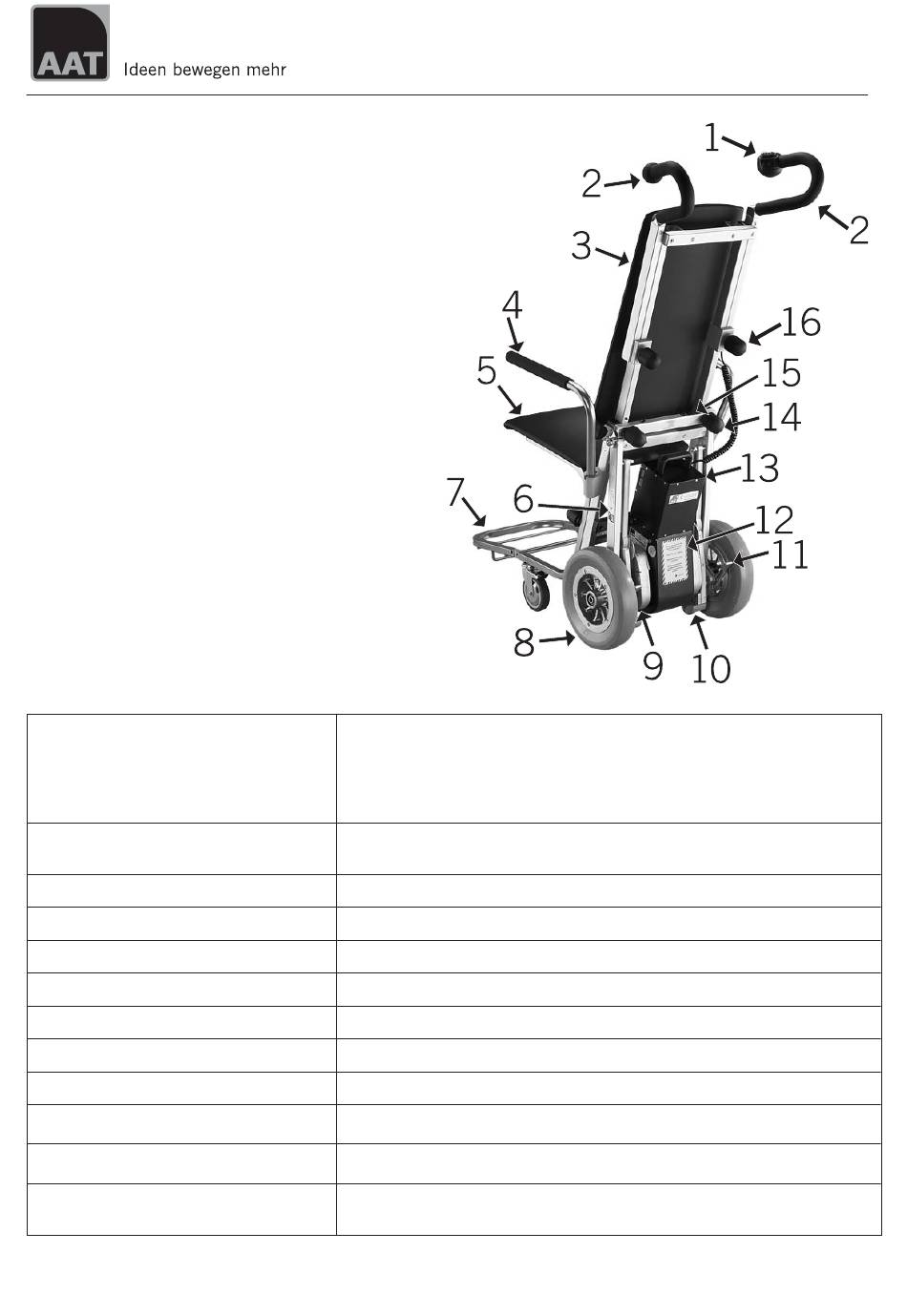

Features of the
1 = control unit
2 = handles, adjustable
3 = back rest
4 = arm rest, swivels out
5 = C-part plus seat
6 = climbing frame
7 = foot rest, folds in
8 = main wheel
9 = lever with chain drive
10 = climber and climbing foot
11 = safety brake
12 = power unit
13 = battery pack
14 = tightening knobs for the back rest
15 = single step switch
16 = tightening knob for the handle
2.3

Technical data

measurements
weight
maximum lifting capacity
batteries
direct current motor
climbing speed
capacity with one battery pack
maximum height of step
noise level
Storing/operating temperature,device
Storing/operating temperature,batteries
vibrations
-max
height = 1090 mm
width without arm rests = 440 mm
width with arm rests attached = 485 mm
depth with the foot rest folded in = 730 mm
depth with the foot rest folded out = 915 mm
climbing frame = 17,2 kg, C part plus seat = 4,6 kg, back rest = 4,3 kg,
both arm rests = 1,2 kg, battery pack = 4,4 kg, total weight = 31,7 kg
120 kg
2 x 12 V / 5 Ah sealed lead acid
24 V
8 - 23 steps / minute, continually adjustable
15 - 30 floors, depending on the load
21 cm
the device's A weighted noise level lies typically below 70 dB (A)
0° C up to + 60° C / - 30° C up to + 50° C
0° C up to + 60° C / - 30° C up to + 50° C
the weighted RMS value of acceleration the upper body is exposed to lies
typically below 2.5 m/s²
7
