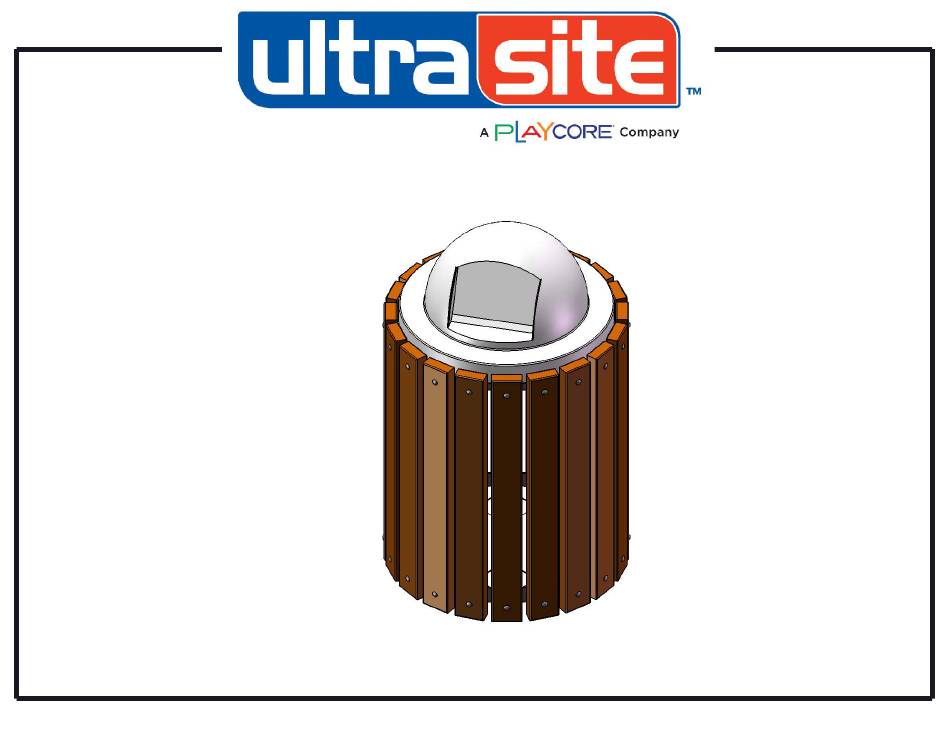

- Page 1 Model # TR-32-RT 4/29/2015 Page 1 of 9...
- Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
- Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
- Page 4 HARDWARE AND TOOLS REQUIRED Level 1/2" Wrench 1/2" Socket Wrench Tape Measure 5/16" Washer 5/16" Hex Nut 5/16" ID x 7/8" Nylon Spacer 5/16" x 3" Carriage Bolt 800-45-ULTRA www.ultrasite.com 4/29/2015 Page 4 of 9...
- Page 5 ULTRA SITE PRODUCT SPECIFICATIONS TR-32 RECYLCED PLASTIC SLAT TRASH RECEPTACLE Slats: Minimum of 96% commingled post-consumer or post-industrial recycled plastic 2x4. With a maximum of 4% due to various additives including color and UV stabilization to obtain desirable properties. Frame: Rings are 3/16” x 2” flat. Bottom plate is precision punched from 12 ga. sheet steel. All electrically MIG welded. Frame Coating: Hot dipped galvanized.
- Page 6 COMPONENTS Attach the 34" Recycled planks to the TR-32 Ring and TR Bottom Ring assembly as shown using specified hardware. 28 1/4" 44 1/2" 33 3/4" ITEM NO. PartNo DESCRIPTION Qty. 01-05-0054 TR bottom ring assembly 01-05-0041 TR-32 Ring BRN34-2x4-TR, 2 x 4 Brown Recycled TR Plank (34"), 2 x 4 CDR34-2x4-TR, Cedar Recycled TR Plank (34"), 2 x 4 Green...
- Page 7 INGROUND MOUNTING OPTION INGROUND MOUNT FOR TRASH RECEPTACLE Frame: 2-3/8” O.D. x 12 gauge pre-galvanized structural steel tubing.Mounting points 3 gauge 8” x 8” steel flat bar. All electrically MIG welded. Frame Coating: Electrostatic powder coated application oven cured. Hardware: All stainless steel hardware fasteners. (Included). Dimensions: Overall dimension is 24 1/4”...
- Page 8 SURFACE MOUNT MOUNTING OPTION SURFACE MOUNT FOR TRASH RECEPTACLE Frame: 2-3/8” O.D. x 12 gauge pre-galvanized structural steel tubing. Surface mounting points are 3 gauge 8” x 8” steel flat bar with four holes. Receptacle mounting points are 3 gauge 6” x 6” steel flat bar with 4 holes. All electrically MIG welded. Frame Coating: Electrostatic powder coated application oven cured.
- Page 9 LINER OPTION PL-32 32 Gallon Liner Made of heavy duty plastic. 800-45-ULTRA www.ultrasite.com 4/29/2015 Page 9 of 9...
