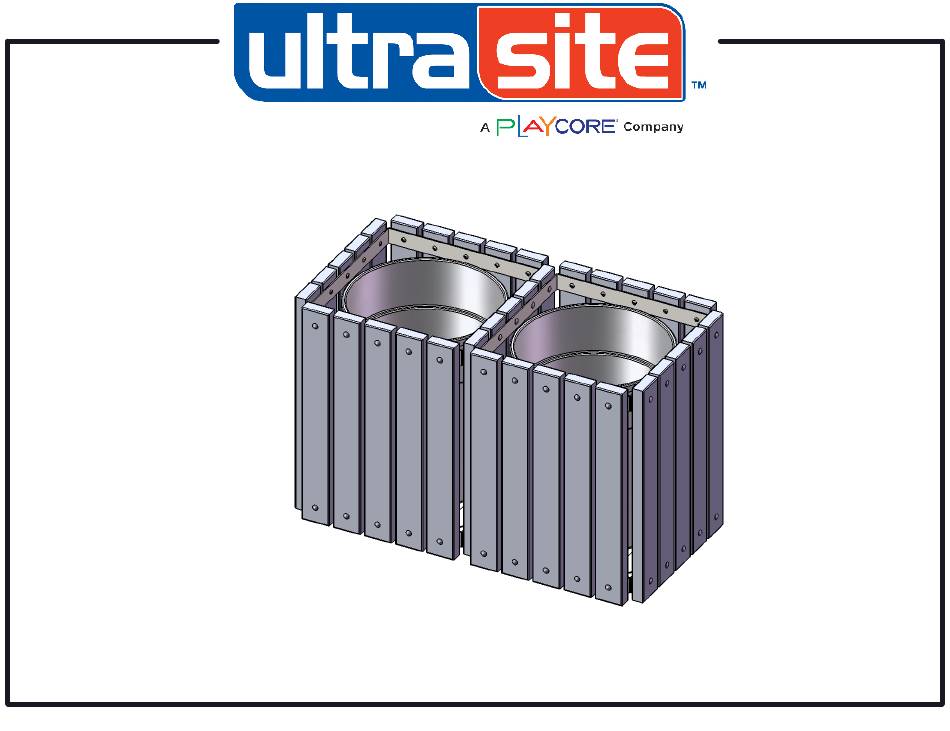

- Page 1 Model # TRSQ-40...
- Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
- Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
- Page 4 HARDWARE 5/16" x 1-1/4" Carriage Bolt 5/16" x 1/2" Philips Head Barrel Nut 800-45-ULTRA www.ultra-site.com...
-
Page 5: Tools Required
TOOLS REQUIRED Level 1/2" Wrench 1/2" Socket Wrench Tape Measure Phillips Head Screw Driver 800-45-ULTRA www.ultra-site.com... - Page 6 ULTRA SITE PRODUCT SPECIFICATIONS TRSQ-40 RECYLCED PLASTIC SLAT RECYCLING CENTER Slats: Minimum of 96% commingled post-consumer or post-industrial recycled plastic 2x4. With a maximum of 4% due to various additives including color and UV stabilization to obtain desirable properties. Frame: 10 gauge formed steel plate. Bottom plate is 12 gauge steel. Frame Coating: TGIC electrostatic powder coated application oven cured, or hot dipped galvanized after fabrication.
- Page 7 COMPONENTS Attach the Recycled Planks to the Bottom Plate and Bracket Assembly as shown using specified hardware. *Tops are sold seperately and sit on top of the Bracket Assembly. ITEM PartNo DESCRIPTION TRSQ-40/QTY. TRSQ 20-40-60 L Bracket Bottom Plate 01-05-0140 Assem.
-
Page 8: Overall Dimensions
OVERALL DIMENSIONS 44 3/4" 23 1/8" 28" 800-45-ULTRA www.ultra-site.com... - Page 9 LID OPTIONS (SOLD SEPERATELY) "Plastic" "Glass" "Paper" 01-05-0123 01-05-0126 01-05-0127 "Cans" "Trash" 01-05-0124 01-05-0125 800-45-ULTRA www.ultra-site.com...
