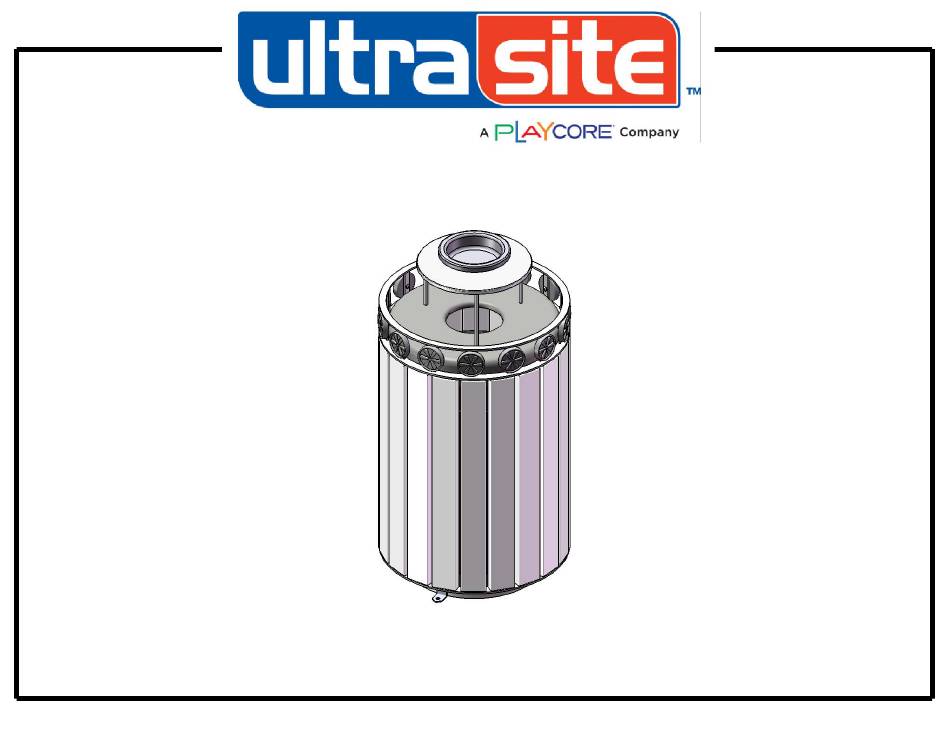

- Page 1 Model # CH-R32AU 5/7/2014 Page 1 of 8...
- Page 2 1675 Locust Street Red Bud, IL 62278 Phone: 618-282-8200 Fax: 618-282-8202 WARRANTY & TERMS WARRANTY: 5 Year Limited Warranty on Thermoplastic coated elements. Ultra Play guarantees all items for one full year to be free of defects in workmanship or materials when installed and maintained properly. We agree to repair or replace, any items determined to be defective.
- Page 3 SAFETY WARNINGS & EQUIPMENT INSPECTION • Owners and installers please note these safety warnings and make use of this checklist on a regular basis. • Follow installation instructions when erecting equipment. • Ground surfaces around equipment should be restored as needed. Concrete footings should never be exposed. Surface depth should comply with ASTM and CPSC specifications.
- Page 4 HARDWARE 1/4" x 1/2" Button Bolt 5/16" x 1-1/4" Lag Bolt 1/4" Washer 5/16" Washer 800-45-ULTRA www.ultra-site.com 5/7/2014 Page 4 of 8...
- Page 5 TOOLS REQUIRED Level 1/2" Wrench 1/2" Socket Wrench Tape Measure 5/32" Allen Wrench 800-45-ULTRA www.ultra-site.com 5/7/2014 Page 5 of 8...
- Page 6 ULTRA SITE PRODUCT SPECIFICATIONS CH-32 32 GALLON TRASH RECEPTACLE Slats: Minimum of 96% commingled post-consumer or post-industrial recycled plastic 2x4. With a maximum of 4% due to various additives including color and UV stabilization to obtain desirable properties. Frame: Rings are 3/16” x 2” flat. Top and bottom plate is laser cut from 1/4" steel. All electrically MIG welded. Rosettes are cast aluminum.
- Page 7 COMPONENTS The use of Loctite™ is required when attaching to Rosettes with Button Head Bolts. Over tightening of Button Head Bolts and Lag Bolts will result in stripping. ITEM NO. PartNo DESCRIPTION P-01-05-0117 Charleston Decorative Upper Assembly P-01-05-0118 Charleston Decorative Lower Assembly P-01-05-0108 Decorative Receptacle Rosette BRN34-2x4-CH,...
- Page 8 OVERALL DIMENSIONS 26 1/2" 16" 24" 47 7/8" 39 1/2" 51" 800-45-ULTRA www.ultra-site.com 5/7/2014 Page 8 of 8...
