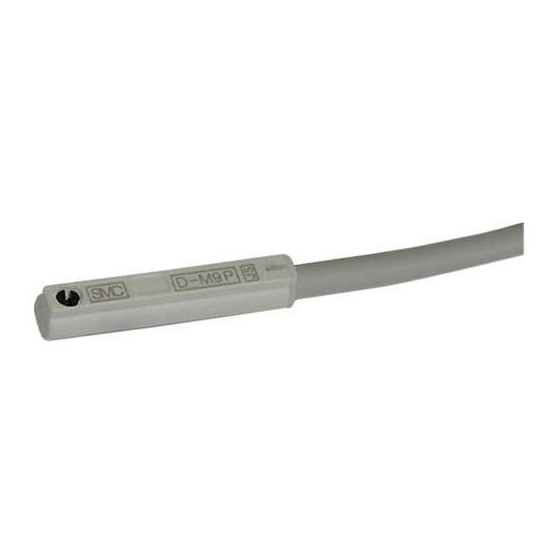

- Page 1 No.D-※S-OMJ0004-E PRODUCT NAME Solid State Auto Switch MODEL / Series / Product Number D-M9## D-M9#W# D-M9#E#...
-
Page 2: Table Of Contents
Contents Safety Instructions Model Indication and How to Order Summary of Product parts Definition and terminology Mounting and Installation Installation Maintenance Troubleshooting Specifications Dimensions No.D-※S-OMJ0004-E... -
Page 3: Safety Instructions
Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of "Caution", "Warning" or "Danger". They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Safety Instructions Caution 1.The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary. If anything is unclear, contact your nearest sales branch.
- Page 5 Operator This operation manual is intended for those who have knowledge of machinery using pneumatic equipment, and have sufficient knowledge of assembly, operation and maintenance of such equipment. Only those persons are allowed to perform assembly, operation and maintenance. Read and understand this operation manual carefully before assembling, operating or providing maintenance to the product.
- Page 6 Cylinders or actuators include cylinders, air grippers, rotary actuators, and electrical actuators/cylinders. Design/Selection 1. Confirm the specifications. If the product is used with excess load applied or beyond the specification range, this may cause the product to break or malfunction. We do not guarantee against any damage if the product is used outside of the specification range. 2.
- Page 7 12. Pay attention to leakage current. <2-wire type> Current (leakage current) flows to the load to operate the internal circuit when in the OFF state. Operating current of load (OFF condition) > Leakage current If the criteria given in the above formula are not met, it will not reset correctly (stays ON). Use a 3-wire auto switch if this specification will not be satisfied.
- Page 8 Wiring 1. Confirm proper insulation of wiring. If there is any improper insulation (mixed contact with other circuit, grounding fault, or improper insulation between terminals, etc.) in the wiring, an over-current flows in, causing the auto switch to break. 2. Wire separately from power lines or high voltage lines, avoiding parallel wiring or wiring in the same conduit with these lines.
- Page 9 Operating Environment 1. Never use in an atmosphere of explosive gases. The structure of auto switches is not intended to prevent explosion. This may lead to explosion hazard. Contact SMC for information regarding explosion proof compliant product. 2. Do not use in an area where a magnetic field is generated. Auto switches will malfunction or magnets inside cylinders/ actuators will become demagnetized.
-
Page 10: Model Indication And How To Order
Model Indication and How to Order No.D-※S-OMJ0004-E... -
Page 11: Summary Of Product Parts
Summary of Product parts •Summary of Product parts •D-M9B(W/E)/D-M9N(W/E)/D-M9P(W/E) •D-M9B(W/E)V/D-M9N(W/E)V/D-M9P(W/E)V -10- No.D-※S-OMJ0004-E... -
Page 12: Definition And Terminology
■Definition and terminology Term Meaning and definition A type of indicating methods which lights up the Red LED light up when the Auto switch comes 2-color indication to the operating position, and lights up the Green LED when the Auto switch comes to the optimum operating position. -
Page 13: Mounting And Installation
Mounting and Installation ■Installation When mounting the Auto switch to the actuator, the appropriate mounting bracket should be used. "How to mount" depends on the actuator type and bore size. Please refer to the actuator catalogue. For new Auto switch applications, confirm that the actuator includes a magnet before assembling the Auto switch and bracket. - Page 14 •Internal circuit (When switch power supply and load power supply D-M9N(W/E)(V) are separated.) D-M9P(W/E)(V) D-M9B(W/E)(V) : The number marked on each lead wire color shows the pin number of pre-wired connector. •Connection with PLC (sequence controller) M8-3 pin connector M8-4 pin connector M12-4 pin connector -13- No.D-※S-OMJ0004-E...
-
Page 15: Maintenance
Maintenance After the power has been disconnected, please observe the following precautions:- Regarding the actuator operation set up, the contents of the program may be maintained by the customer's application system. Take care to confirm safety when the power is re-connected, and the actuator operation is resumed, because the operation may have stopped in an unstable condition. -
Page 16: Troubleshooting
Troubleshooting When the Auto switch falls in operation failure, identify the trouble with the following flow chart. A failure of the Auto switch might depend on operating environment (application etc.) and needs to be given a measure by contacting to us separately. Contact type: Normally open (normal direction) output The switch Is the actuator... - Page 17 •Trouble list Trouble Investigation to find possible Trouble Possible cause Countermeasure cause Malfunction due The effect of magnetic field Place a magnetic shield plate to to disturbance The switch generated by adjacent actuator the actuator. magnetic field output doesn’t turn off. The Improper setting The presence of the following Displace the Auto switch set...
- Page 18 Trouble Investigation to find possible Trouble Possible cause Countermeasure cause Adjust power supply voltage to a given value. Power supply Power supply voltage (zero or (Refer to "Power supply voltage failure extremely low) or Load voltage" in Specifications on page 23.) Voltage (load) applied to the Auto Correct wiring.
- Page 19 Trouble Investigation to find possible Trouble Possible cause Countermeasure cause Satisfaction of the following relations by the load current Mismatch the specification Select 3-wire Auto switch or reed load current Load voltage is "ON" level Auto switch. specification > Load voltage - (Internal (2-wire) voltage drop x n) Reduce the number of switches.
- Page 20 Contact type: Normally closed (inverted) output The switch Is the actuator doesn’t detect Misapplication applicable? normally. The switch The operation output doesn’t LED doesn’t go Trouble No.1 turn on. The operation LED doesn’t turn Trouble No.2 off. Trouble No.3 The switch The operation output doesn’t LED doesn’t go...
- Page 21 •Trouble list Trouble Investigation to find possible Trouble Possible cause Countermeasure cause Malfunction due The effect of magnetic field Place a magnetic shield plate to to disturbance The switch generated by adjacent actuator the actuator. magnetic field output doesn’t turn on. The Improper setting The presence of the following Displace the Auto switch set...
- Page 22 Trouble Investigation to find possible Trouble Possible cause Countermeasure cause Adjust power supply voltage to a given value. Power supply Power supply voltage (zero or (Refer to "Power supply voltage failure extremely low) or Load voltage" in Specifications on page 23.) Voltage (load) applied to the Auto Correct wiring.
- Page 23 Trouble Investigation to find possible Trouble Possible cause Countermeasure cause Satisfaction of the following relations by the load current Mismatch the specification Select 3-wire Auto switch or reed load current Load voltage is "ON" level Auto switch. specification > Load voltage - (Internal (2-wire) voltage drop x n) Reduce the number of switches.
-
Page 24: Specifications
Specifications •D-M9B(E)(V)/D-M9N(E)(V)/D-M9P(E)(V) PLC: Programmable Logic Controller Switch part no. D-M9N(E) D-M9N(E)V D-M9P(E) D-M9P(E)V D-M9B(E) D-M9B(E)V Wiring 3-wire 2-wire Output Lead wire In line Perpendicular In line Perpendicular In line Perpendicular orientation Applicable load IC circuit/Relay/PLC 24 VDC Relay/PLC Power supply 5/12/24 VDC (4.5 to 28 VDC) voltage Current... - Page 25 •D-M9BW(V)/D-M9NW(V)/D-M9PW(V) PLC: Programmable Logic Controller Switch part no. D-M9NW D-M9NWV D-M9PW D-M9PWV D-M9BW D-M9BWV Wiring 3-wire 2-wire Output Lead wire In line Perpendicular In line Perpendicular In line Perpendicular orientation Applicable load IC circuit/Relay/PLC 24 VDC Relay/PLC Power supply 5/12/24 VDC (4.5 to 28 VDC) voltage Current 10 mA or less...
-
Page 26: Dimensions
■Dimensions •D-M9B(W/E)/D-M9N(W/E)/D-M9P(W/E) •D-M9B(W/E)V/D-M9N(W/E)V/D-M9P(W/E)V -25- No.D-※S-OMJ0004-E... - Page 27 •Pre-wired connector •D-M9□□□ PC •D-M9□□□DPC -26- No.D-※S-OMJ0004-E...
- Page 28 Revision history A: Standardize each contents for series D-M9. B: Modify the contents. C: Limited warranty and Disclaimer are added. D: Solid state auto switch changed. D-M9 added E: Solid state auto switch changed. D-M9E(V) added [June 2018] 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 http://www.smcworld.com Note:...
