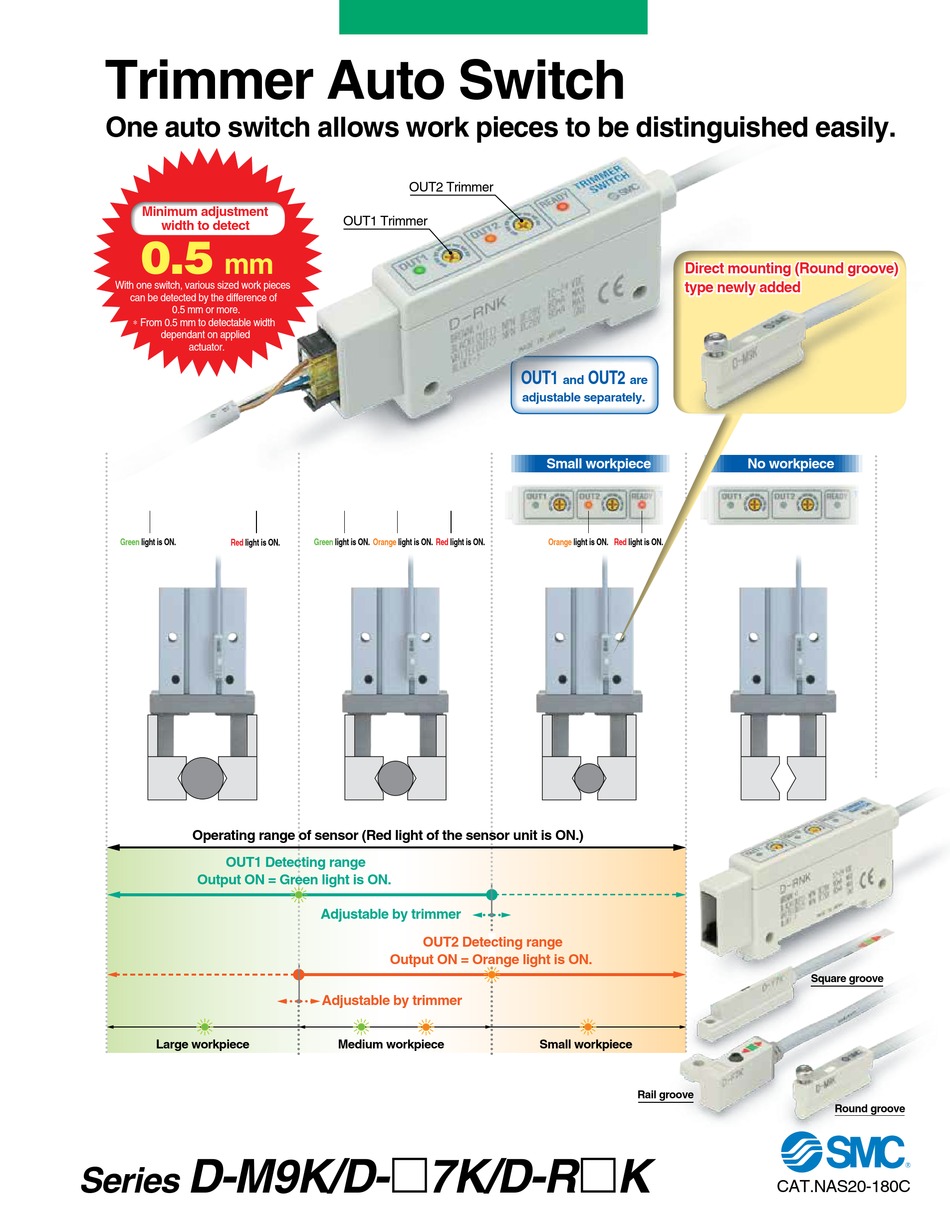

Trimmer Auto Switch
One auto switch allows work pieces to be distinguished easily.
OUT2 Trimmer
Minimum adjustment
OUT1 Trimmer
width to detect
0.5
mm
Direct mounting (Round groove)
Direct mounting (Round groove)
type newly added
type newly added
With one switch, various sized work pieces
can be detected by the difference of
0.5 mm or more.
∗ From 0.5 mm to detectable width
dependant on applied
actuator.
OUT1
OUT2
and
are
adjustable separately.
Large workpiece
Medium workpiece
Small workpiece
No workpiece
Green
light is ON.
Red
light is ON.
Green
light is ON.
Orange
light is ON.
Red
light is ON.
Orange
light is ON.
Red
light is ON.
Operating range of sensor (Red light of the sensor unit is ON.)
OUT1 Detecting range
Output ON = Green light is ON.
Adjustable by trimmer
OUT2 Detecting range
Output ON = Orange light is ON.
Square groove
Adjustable by trimmer
Large workpiece
Medium workpiece
Small workpiece
Rail groove
Round groove
D-M9K/D- 7K/D-R K
Series
CAT.NAS20-180C

Advertisement

loading
Need help?

Need help?

Do you have a question about the D-M9K/D-7K/D-RK Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SMC Networks D-M9K/D-7K/D-RK Series

  • Page 1 Trimmer Auto Switch One auto switch allows work pieces to be distinguished easily. OUT2 Trimmer Minimum adjustment OUT1 Trimmer width to detect Direct mounting (Round groove) Direct mounting (Round groove) type newly added type newly added With one switch, various sized work pieces can be detected by the difference of 0.5 mm or more.
  • Page 2 D-M9K/D- 7K/D-R K Series Trimmer Auto Switch Applicable to the short stroke cylinder. Only one auto switch can detect the extended and retracted end positions. Amplifier Unit This switch can be used when two auto switches cannot be mounted due to short stroke. Direct mounting Joining of connector...
  • Page 3: Specifications

    Trimmer Auto Switch D-M9K/D- 7K/D-R K Direct mounting Direct mounting Rail mounting (Round groove) (Square groove) Specifications Sensor Unit Amplifier Unit (with Sensor Unit) PLC: Programmable Logic Controller D-M9K D-Y7K D-F7K D-RNK D-RPK Auto switch model Model Mounting Direct mounting (Round groove) Direct mounting (Square groove) Rail mounting D-M9K, D-Y7K, D-F7K Applicable sensor unit...
  • Page 4 D-M9K/D- 7K/D-R K Series The operating ranges are provided as guidelines including the hysteresis and are not guaranteed value. Please consult with SMC for alternative actuators Applicable Actuators and Operating Range (Angle) other than those shown below. D-M9K Sensor Unit Air Grippers (The operating range for grippers is measured when both ends are open.) (mm)
  • Page 5 D-M9K/D- 7K/D-R K Trimmer Auto Switch Dimensions (mm) Sensor Unit D-Y7K D-M9K Mounting thread M2.5 x 12L M2.5 x 4L Hexagon socket head cap screw Slotted set screw 3000 3000 3.95 12.5 Most sensitive position Most sensitive position ø3.2 3000 Most sensitive position 12.5 3000...
  • Page 6 D-M9K/D- 7K/D-R K Series How to Mount and Move the Auto Switch D-M9K Mounting Bracket Direct Mounting Type <Applicable auto switch> How to Mount and Move the Auto Switch D-M9K Solid state ······ Applicable Actuators Air Grippers Description Series Bore size Hexagon socket head cap screw MHZ2...
  • Page 7 D-M9K/D- 7K/D-R K Trimmer Auto Switch How to Mount and Move the Auto Switch D-F7K Mounting Bracket Rail Mounting Type Auto switch mounting screw ∗ (M3 x 0.5 x 8L) <Applicable auto switch> D-F7K Solid state ······ Auto switch Applicable Actuators Auto switch mounting rail Air Cylinders Description...
  • Page 8 D-M9K/D- 7K/D-R K Series How to Mount and Move the Auto Switch D-Y7K Mounting Bracket Tie-rod Mounting Type <Applicable auto switch> D-Y7K Solid state ······ Hexagon socket head set screw Note 2) Series CA2: M4 x 0.7 x 6L Applicable Actuators Auto switch Air Cylinder Description...
  • Page 9: Maintenance

    Trimmer Auto Switch Specific Product Precautions Be sure to read before handling. Refer to back cover for Safety Instructions. For Auto Switch Precautions, refer to “Handling Precaution for SMC Products” and the Operation Manual on SMC website, http://www.smcworld.com Design and Selection Wiring Warning Caution...
  • Page 10: Safety Instructions
