Summary of Contents for LG RD2230

  • Page 2: Table Of Contents

    Key Mapping For Hindi Entry .....23 To Edit in Hindi Mode ......24 RD2230...
  • Page 3 LIMITED WARRANTY STATEMENT ..94 Service Center List ..... . 96 RD2230...

  • Page 4: Before You Start

    Use only LG-approved batteries and travel chargers to avoid the damage to the phone. Using other batteries or chargers voids your warranty and may cause the explosion.

  • Page 5: Fcc Rf Exposure Information

    Contact your local dealer for a replacement of accessories. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 3/4 inch (2cm) from the body. To comply with FCC RF exposure requirements, a minimum sep- RD2230...
  • Page 6 Operation is subject to the following two conditions: (1) This device and its accessories may not cause harmful inter- ference, and (2) this device and its accessories must accept any interference received, including interference that cause undesired operation. RD2230...
  • Page 7 Using the wrong battery charger could damage your phone and void your warranty. • The charger is intended for indoor use only. Do not expose the battery charger to direct sunlight or use it in places with high humidity, such as the bathroom. RD2230...

  • Page 8: Cautions

    Cautions Only use the batteries and chargers provided by LG. The war- ranty will not be applied to products provided by other suppliers. Using the phone in proximity to receiving equipment (i.e., TV or radio) may cause interference in this phone.

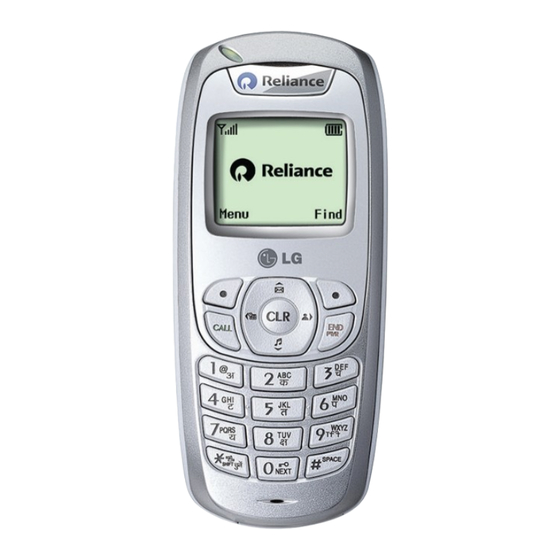

  • Page 9: Phone Overview

    Soft Key2 END / PWR Key CALL Key Alphanumeric Keypad Charger Port Vibrate Mode “Key Guard” Key Data Port Microphone CAUTION Do not put AC adaptor jack into headset jack. It may make headset jack loose or damage the phone. RD2230...
  • Page 10 Press and hold to delete entire words. In standby mode, set the vibrate mode by press- Vibrate Mode Key ing and holding the key about 2 seconds. This key is also used to change case in text entry mode. RD2230...

  • Page 11: Onscreen Icons

    In use A call is in progress. * No icon indicates the phone is in standby mode. Indicates that a text message or voice mail has been received In Vibrate mode. In Alarm mode. Charge level Indicates battery charge level. RD2230...

  • Page 12: Using The Battery And Charger

    Gently press down the cover until the latch snaps into place. To remove, push the back cover down. Push the tab with one hand and lift the top of the battery to separate. slot groove RD2230...

  • Page 13: Charging The Battery

    LOW BAT- TERY WARNING! If the battery charge level becomes exceed- ingly low, the phone will automatically switch off and any func- tion in progress will not be saved. RD2230...

  • Page 14: Caring For The Battery

    2) You do not need to wait until the battery completely runs down to recharge the battery. 3) Use only LG batteries and chargers specific to your model of phone. LG’s chargers are designed to maximize battery life.

  • Page 15: Basic Phone Operation

    Power Save Mode. When your phone activates this feature, Power Save is displayed on your screen. The phone automat- ically checks for service periodically or you can check manual- ly by pressing any key. RD2230...

  • Page 16: About The Antenna

    To end the call, press Note In no service area, appears from the screen. When trying voice call in no service area, “Call not complet- ed. Please try again” is displayed. It means you are in no service area. RD2230...

  • Page 17: Receiving Calls

    1) In standby mode, activate Vibrate Mode quickly by pressing . (for 2 seconds) instead of using the Menu function. • When Vibrate Mode is set, Key tone does not sound. Note To cancel Vibrate Mode, press for 2 seconds. RD2230...

  • Page 18: Redialing Calls

    Speed Dialing Speed dialing is a convenient feature, which allows you to make phone calls quickly and easily. Your phone recalls the phone number from your personal directory, displays it briefly and then dials it. RD2230...

  • Page 19: Mute

    If the caller’s name and number are already stored in your phone book, the corresponding name appears with the number. You should check with Your service provider to ensure they offer this feature. RD2230...

  • Page 20: Entering And Editing Information

    (Space): Press to complete a word or insert a space. (Clear): Press to delete a single space or character. Press and hold to delete entire words. Input mode T9 Text Input provides five modes for entering text, numbers, special characters, and punctuation. RD2230...
  • Page 21 : To select Character, Press the assigned number key. Initial Cap (T9En/Abc) Only the first letter is capitalized. Caps Lock (T9EN/ABC) All subsequent letters are capitalized. Lowercase (T9en/abc) All subsequent letters are lowercase. RD2230...

  • Page 22: Examples Using T9 Text Input

    After you have finished typing a word, if the word displayed is not the word you want, press to display additional choic- For example, follow these steps : 1. Press: 2. Display: Good 3. Press: 4. Display: Home, Gone, Hood..RD2230...

  • Page 23: Examples Using Abc (Multi-Tap)Text Input

    8. Press: 9. Display: Imt Examples Using ABC (Multi-tap) Text input Typing In ABC (Multi-tap) Mode For example, to type “LG”, follow these steps: 1. Press: Soft Key 2 to change letter case to ABC mode. 2. Press: Shift key to change to ABC Caps Lock mode.

  • Page 24: Key Mapping For Hindi Entry

    Key Mapping For Hindi Entry In Hindi there are 13 vowels, 36 consonents, 10 matras The Keys are mapped as follows: Selection of user data base words. Halanth(half character) is also added to RD2230...

  • Page 25: To Edit In Hindi Mode

    "Ksha" , "Tra" , "Gna" takes 3 bytes. UDB: (Hindi Dictionary) Messages : Every word typed in Messages will be automati- cally stored in Hindi Dictionary. About 100 words can be stored in Dictionary. 101st word replaces the oldest word. Thus, a FIFO format is used. RD2230...
  • Page 26 " appears in the UDB space. If there are multiple words starting with the same letter, required word can be selected by pressing Key. Once the required word is selected, Press Key. The word will be added to the editor. RD2230...

  • Page 27: Phone Book Features

    8. To designate Speed dial, press Soft Key 1 Options and select Speed dial. Using number key, input speed dial or select a desired speed dial with . Select Assign by pressing Soft Key 1 Options. When select stored speed dial, Replace displays. RD2230...
  • Page 28 13. After selecting bell by pressing , select a desired bell using 14. After selecting Secret off by pressing , select Secret off/Secret on using . When Secret on is set, you should input password to check it. 15. Press Soft Key 1 Save. RD2230...
  • Page 29 1. Press the Soft Key 2 Find. 2. Press the Soft Key 1 Options and select Find Group. 3. Select group using To view the names of the members, press Soft Key 1 More after scrolling to the Group name you want using RD2230...
  • Page 30 You can place a call from any memory location either by using speed dialing or by entering the phone number and pressing One-Touch Speed Dialing: This feature enables you to store your nine most frequently used numbers in your Speed dials memory locations (1 through 9) RD2230...
  • Page 31 Dialing from a Memory List 1) From a memory list, press the scroll keys to go to the mem- ory location you want. 2) Press Dialing from a Memory Location While viewing a memory location, press to call. RD2230...

  • Page 32: Using Phone Menus

    5. Select preferred settings, using the . Press Soft Key 2 Back to go one step backward while accessing menu or selecting settings. 6. Press Soft Key 1 Ok to save the settings or Soft Key 2 Back to cancel without saving. RD2230...

  • Page 33: Names

    9. After selecting Home/Office/Mobile/Other using , input phone number with number key. 10. To designate Speed dial, press Soft Key 1 Options and select Speed dial. Using number key, input speed dial or select a desired speed dial with . Select Assign by RD2230...
  • Page 34 Soft Key 2 Find To find phone numbers you have stored in the Phone Book. 1. Press Soft Key 1 Menu. 2. Select Names. 3. Select Find. 4. Phone numbers saved in the Phone Book will appear in the RD2230...
  • Page 35 Edit Title : Edit the Group Name. NOTE The title No Group cannot be changed. Speed Dial ( Menu Speed Dial allows you to make a call faster by just pressing a corresponding number. 1. Press Soft Key 1 Menu. RD2230...
  • Page 36 Select Remove all to delete all stored speed dials. Select Replace to change the number assigned to a par- ticular location. Speed dial is from 01 to 99. Help ( Menu You can get more information about this menu. RD2230...

  • Page 37: Messages

    However you should check whether your service provider pro- vides the above features. Character limits: The RD2230 supports up to 140 characters per message. Limits to available byte per message may exist; please check with your service provider for system capabili- ties.
  • Page 38 Soft Key 1 Options. Send Use to send the message. NextRecipient Enter the next recipients address. You can add up to 10 recipients. Priority Allows you to give the priority to mes- sage. Normal or Urgent. RD2230...
  • Page 39 Messages are saved in order of NEW/OLD/ Delivery Ack/Melody/Icon. For example, if a NEW message is read it goes into OLD messages. : NEW : OLD 3. After selecting the desired message with ; press Soft Key 1 Options and select View. RD2230...
  • Page 40 Up to 30 sent messages can be stored in the Outbox. In Outbox, only successfully sent messages are saved. Users may view lists and contents of sent messages in this menu. To save a message in Outbox “Save Sent Message” should be selected in “Message Settings”. RD2230...
  • Page 41 To delete information press, Soft Key 1 Options and then select Listen, Erase. While you are answering another call, if you have a new mes- sage, the sender’s number will be displayed on the screen. Check with service provider for availability of this feature. RD2230...
  • Page 42 1. Press Soft Key 1 Menu, 2. Select Draft. 3. After selecting the desired message with press Soft Key 1 Options. If you select the message View/Erase appears on the screen. RD2230...
  • Page 43 Erase Msgs ( Menu All the voice mailbox messages, text messages and pages are deleted when you select Erase Msgs from the Message Menu screen. Inbox Menu Read messages and all messages are divided and must be deleted separately. RD2230...
  • Page 44 With this feature on, messages are automatically saved in the Outbox when transmitted. Auto Delete Inbox Menu With this feature on, old messages are automatically deleted when you exceed storage limit. Help ( Menu You can get more information about this menu. RD2230...

  • Page 45: Call History

    4. You may place a call by pressing Received ( Menu Allows you to view list of all received calls. Maximum 60 numbers are possible. 1. Press Soft Key 1 Menu, Call History. 2. Select Received. RD2230...
  • Page 46 Maximum 5 numbers are possible. 1. Press Soft Key 1 Menu, Call History. 2. Select In Call Memo. 3. Press Soft Key 1 Options. View/Send message/ Save/Erase appears on the screen. 4. You may place a call by pressing RD2230...
  • Page 47 2. Select Erase History. 3. Select the item which it will erase with 4. Press Soft Key 1 Select. 5. Select Yes using and then Soft key 1 Select. Help ( Menu You can get more information about this menu. RD2230...

  • Page 48: Profiles

    1. Press Soft Key 1 Menu and 2. Select Silent, General or Outdoor by using 3. Then press Soft Key 1 Options and then select Rename. 4. Enter a name for the Profiles (up to 16 characters). 5. Then press Soft Key 1 Save. RD2230...
  • Page 49 Ringtones can be downloaded. 19 ring sounds + 3 SMS Ring tone NOTE When Ring Type is Vibrate, Silent and Light, Ringer Volume can not be adjustable. ‘Change ring type’ is displayed. After changing current type to Ring Type, RD2230...

  • Page 50: Display

    Lets you personalise your phone’s display by selecting differ- ent graphics. Language ( Menu Set the Bilingual feature according to your preference, choose between English and Hindi. 1. Press Soft Key 1 Menu, Display. 2. Press Language. Set English/ with and then press Soft Key 1 Select. RD2230...
  • Page 51 Used to choose the theme and then press Soft Key 1 Save. If you use SMS, you can choose the image you downloaded also. (Off / SMS Img 1~3 / Image1~3) 2. Profile Menu Current profile is saved as wallpaper. RD2230...
  • Page 52 Enter a text and then press Soft Key 1 Save. 3. Waiting Time Menu You can set your phone to display a screensaver after a preset time of your choosing. After 10 secs / After 30 secs / After 1 min / After 3 min RD2230...
  • Page 53 For 10 secs turns the backlight off 10 seconds after the last key was pressed. Contrast ( Menu Using the Navigation Key, select the contrast setting using the scale of lightest to darkest. 1. Press Soft Key 1 Menu, Display. 2. Press Contrast. RD2230...

  • Page 54: Settings

    Select the item of choice with from the Stand-by screen, then press Soft Key 1 Set to select the required menu from My menu. NOTE Select the item to delete with from the Stand-by screen, then press Soft Key 1 Options and RD2230...
  • Page 55 Contact your service provider for more information on Call forward and Call Waiting. 3) Any Key Answer Menu When your phone rings, press any key to answer except Select Off or On and press Soft Key 1 Select. 4) Auto Redial Menu RD2230...
  • Page 56 Select Enable or Disable and press Soft Key 1 Select. 8) Call Connect Alert Menu This is a function to alert you that the call connection has been established. Select On or Off and press Soft Key 1 Select. RD2230...
  • Page 57 Data/Fax Menu In Data/ Fax setting, you can use your phone as a wire- less modem to avail high speed data services such as browsing Internet and other dial-up networking func- tions. The wireless phone supports a maximum data RD2230...
  • Page 58 PC match with the baud rates set on the phone. 4) Version Menu View the S/W and PRL version. 5) Help Menu You can get more information about this menu. RD2230...
  • Page 59 After Screensaver means the phone is locked when screensaver is turned on. 2) Clear All Names Menu Deletes all information saved in phone book. Be careful since any deleted information is not recoverable. 1. Press Soft Key 1 Menu, Settings. 2. Press Security. RD2230...
  • Page 60 1. Press Soft Key 1 Menu, Settings. 2. Press Security. 3. Press Change Lock Code. 4. Enter the four-digit Lock code. 5. Enter the new lock code(four-digit). 6. For confirmation, it will ask you to enter the new lock code again. RD2230...
  • Page 61 1. Press Soft Key 1 Menu, Settings. 2. Press Security. 3. Press Reset Phone. 4. Enter the four-digit Lock code. 5. Using the then select Yes. 6. Press Soft Key 1 Select. 6) Help Menu You can get more information about this menu. RD2230...

  • Page 62: Organiser

    Moves cursor to the left. Moves cursor to the right. Moves to the previous week. Moves to the next week. Moves to the previous year. Moves to the next year. Moves to the previous month. Moves to the next month. Moves to today. RD2230...
  • Page 63 Allows you to view all events of a selected date. 1. Press Soft Key 1 Menu, Organiser. 2. Press Scheduler. 3. Press View By Day. 4. Select the date using your keypad (refer to page 59), then press Soft Key 1 Select. RD2230...
  • Page 64 1. Press Soft Key 1 Menu, Organiser. 2. Press Scheduler. 3. Press Erase Old. You are then prompted to Erase Old. 4. To delete information, scroll to Yes and press Soft Key 1 Select. Past Scheduler items will be deleted. RD2230...
  • Page 65 When Memo is not empty Following Options are available : View , Add, Erase and Erase All. View : To display selected memo. View screen gives 2 options Edit and Erase. Using Edit user can modify an existing memo. RD2230...
  • Page 66 How to Set Snooze Snooze defaults when it is set to alarm. When no key is input when alarm sounds, Snooze function is set automatically one minute later, and the alarm sounds again five minutes after set alarm time. RD2230...
  • Page 67 3. Select the city you desire by using For faster selection, can be used to jump 7 cities on the map. Note Daylight saving feature is not available. Help ( Menu You can get more information about this menu. RD2230...

  • Page 68: Games

    Continue - To release pause and continue game. (4 is displayed only if the game is paused) Moves to the Game Selection screen. Ends the game. 2) Keypad Configuration - Game Screen move right and left move the screen up and down jump RD2230...
  • Page 69 When the enemy base is destroyed, stage clears. 1. Press Soft Key 1 Menu, Games. 2. Press Desert Fox. 3. For a new game, press 4. To start the game, press Soft Key 1 1) Keypad Configuration - Menu Screen RD2230...
  • Page 70 Use to choose the setting between Game Volume and Game Backlight. Note If backlight is turned on and the phone is kept inactive in the Games menu, battery will drain. Help ( Menu You can get more information about this menu. RD2230...

  • Page 71: Menu Tree

    Desert Fox Clock Archive Game Settings Wallpaper Drafts Help Screensaver Templates Menu Style Erase Msgs Backlight Message Contrast Settings Help Help Call History Settings Missed My Menu Received Call Dialled Phone In Call Memo Security Call Duration Erase History Help RD2230...

  • Page 72: Functions Used During A Call

    1) Repeat the procedure. Earpiece Volume During a Call : Menu You may adjust the earpiece volume during a call. 1. Press the Soft Key 1 during the call. 2. Press the key Earpiece Volume. Adjust earpiece volume with RD2230...
  • Page 73 Voice Privacy On/Off During a Call : MENU Set the privacy feature for CDMA calls as Enhanced or Standard. CDMA offers inherent voice privacy. check with your service provider for availability of the enhanced voice privacy mode. RD2230...

  • Page 74: Accessories

    Connects to your phone, allowing hands- free operation. Includes earpiece, microphone, and integrated call answer /termination button. Serial Data Cable Connect your phone to your PC’s serial port. (LG-DC300DJ) USB Convertor Cable Connect your phone to your PC’s USB port. (LG-USBC1000) RD2230...

  • Page 75: Frequently Asked Questions

    Erase Old Select Yes Press Soft Key 1 Select Q : How many Speed Dial numbers can I store? A : Total of 99 numbers. Q : How do I send a text message ? A : Press Write RD2230...
  • Page 76 Groups and 2. After pressing Soft Key 1 Options, select Edit Title. Q : Is Group SMS is possible ? A : The selection of Group is not available and you can select each group member up to 10. RD2230...
  • Page 77 When usage time of If time for use of battery is short, it may battery becomes be due to the user environment, or large shorter volume of calls, or weak signals. RD2230...
  • Page 78 Called "Echo Phenomenon," it occurs When it echoes while if connection volume is too high or connection is made with caused by special properties(semielec- a certain telephone in a tronic telephone exchange) of the certain area. machine on the other end. RD2230...

  • Page 79: Safety

    The design of your phone complies with the FCC guidelines (and those standards). Antenna Care Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could dam- age the phone and may violate FCC regulations. RD2230...
  • Page 80 Electronic Devices Most modern electronic equipment is shielded from RF signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Pacemakers The Health Industry Manufacturers Association recommends that RD2230...
  • Page 81 Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to exter- nal RF energy. RD2230...
  • Page 82 (such as propane or butane); areas where the air contains chemi- cals or particles (such as grain, dust, or metal powders); and any other area where you would normally be advised to turn off your vehicle engine. RD2230...

  • Page 83: Fda Consumer Update

    In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results. 2. What is FDA's role concerning the safety of wireless phones? Under the law, FDA does not review the safety of radiation- RD2230...
  • Page 84 • National Institute for Occupational Safety and Health • Environmental Protection Agency • Occupational Safety and Health Administration • National Telecommunications and Information Administration The National Institutes of Health participates in some intera- gency working group activities, as well. RD2230...
  • Page 85 The so-called "cordless phones," which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF expo- sures far below the FCC safety limits. RD2230...
  • Page 86 However, none of the studies can answer questions about long- term exposures, since the average period of phone use in these studies was around three years. 5. What research is needed to decide whether RF exposure from wireless phones poses a health risk? RD2230...
  • Page 87 Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The Project has also RD2230...
  • Page 88 Manufacturers of wireless phones must report the RF exposure level for each RD2230...
  • Page 89 (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a RD2230...
  • Page 90 December 2000.They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evi- dence that any health hazard exists. RD2230...
  • Page 91 Should harmful interference be found to occur, FDA will conduct testing to assess the interference and work to resolve the problem. 12. Where can I find additional information? For additional information, please refer to the following resources: RD2230...
  • Page 92 • FDA wed page on wireless phones (http://www.fda.gov/cdrh/phones/index.html • Federal Communications Commission(FCC)RF Safety Program (http://www.fcc.gov/oet/rfsafety) • International Commission on Non-lonizing Radiation Protection (http://www.icnirp.de) • World Health Organization(WHO) International EMF Project (http://www.who.int/emf) • National Radiological Protection Board(UK) (http://www.nrpb.org.uk/) RD2230...

  • Page 93: Consumer Information On Sar

    FCC that it does not exceed the limit established by the government-adopted requirement for safe expo- sure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. RD2230...
  • Page 94 You can call our Customer Contact Centre using One Unique Number. You can call between 9 a.m. and 9 p.m. seven days. Your call will be attended immediately. RD2230...

  • Page 95: Limited Warranty Statement

    2.During the warranty period, LG ELECTRONICS Inc. or its authorised service network will repair or replace, at LG ELECTRONICS Inc. 's option, the PROD- UCT or any relevant parts thereof in the event that the PRODUCT is found to be defective.
  • Page 96 (d) The PRODUCT has been used with or connected to an accessory (i) not supplied by LG ELECTRONICS Inc. or its affiliates, (ii) not fit for use with the PRODUCT or (iii) used otherwise than in the manner intended.
