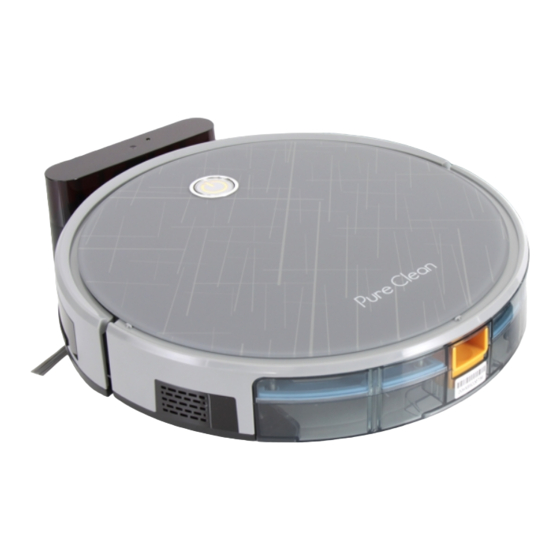

- Page 1 PUCRC660 Smart Robot Vacuum Cleaner Robot Cleaning Vacuum with App Control and Remote Control...
- Page 2 3. Connect your PUCRC660 to the APP After you get weback ID, please enter weback interface, and start from ADD DEVICE; Scan the QR code of PUCRC660 [Fig. 6] or from bottom of PUCRC660. Follow APP instructions step by step until your device is successfully connected.
- Page 3 Tap DIRECTION KEY [Fig. 11] to enter Direction Control Panel [Fig. 12] 5. Share your EXVAC660 You may share your PUCRC660 with your family members. Please be sure that they have registered weback ID already. Tap MANAGE DEVICE MEMBERS [Fig. 13], add your family member's ID/Cellphone number [Fig.
-
Page 4: Product Maintenance
A. Tap ME [Fig. 15] on your weback APP, and choose Third-party Connection [Fig.15] B. Enter the interface of adding third-party APPs/programs [Fig. 16] C. Follow instructions step by step to connect your PUCRC660 with Amazon Echo/Siri. [Fig. 17] Important Notes:... - Page 5 Before using this product, please read the safety instructions below and follow all the routine safety precautions. Please read the Instructions carefully and keep them for future reference. Any operation that does not conform to the Instructions may cause damage to the product.
- Page 6 6. Please clean the product after charging. 7. Please turn o the power switch on the side of the robot when the product is out of service for a long time. 8. Please check carefully to see if the power adapter is connected to the socket prior to use, to avoid damage to the robot.
- Page 7 2. Do not use the rechargeable battery on other devices. This battery is only suitable for PUCRC660 sweeping robots. 3. If the battery's outer box is found to be deformed and expanded, or leakage of electrolytes is found, do not charge or continue to use to avoid danger.
- Page 8 1. Take out two screws on the battery cover with a screw driver. 2. Take out the battery cover. 3. Take out the battery and unplug the electric wires to remove the battery. Names of Parts While the accessories provided for some models are slightly di erent, they are subject to the actual product.
- Page 9 Main Body 1. Bumper 2. Control Button Main Body 1. Universal wheel 2. Charging shrapnel 3. Side brush 4. Battery cover 5. Cincture 6. Rolling brush components 7. Dust box Main Body 1. DC power jack 2. Power switch 3. Dust box release button www.PyleUSA.com...
-
Page 10: Product Characteristics
Dust Box 1. Pre- lter 2. High-e ective lter 3.Filter sponge 4.Dust box 5. Dust box cover Charging Base 1. Charging indicator 2. DC power jack 3. Charging terminal Product Characteristics Humanized Design It is simple to operate. You can control the robot only by pressing the Control button! Follow the prompt tone to operate the robot! www.PyleUSA.com... -
Page 11: Remote Control Instructions
Dust box can be washed with water The dust box and the pre- lter can be directly ushed with water without too much labor, which can avoid secondary pollution caused by dust ying! Remote Control Instructions Mop function only available with purchase of Mopping Attachment Kit -- Pure Clean Model: PRTPUCRC6605 (Sold Separately) PRTPUCRC6605 model only (Sold Separately) - Page 12 When the robot is in the vicinity of the charging base and the virtual protection wall, it may not be able to distinguish the instructions issued by the remote control. If you do not use the remote control for a long time, please remove the battery.
- Page 13 Single Room Cleaning Button Press this button to enter the Single Room Cleaning Model. Preset Button In the standby mode, press this button to enter the presetting mode, and the display ashes icon In the preset mode, press this button to save the data and exit the preset mode, and the display will always display the icon In the preset mode, press the preset button for 3S to cancel the preset function, and the displayed icon...
-
Page 14: Charging Mode
Switch on the robot, which makes the Control button green, and enter the Select mode. If the robot is not activated within 3 minutes, the robot will enter Sleep mode. Charging Mode In any mode, select the Return for Auto Charging button on the remote control to make the robot return for charging. -
Page 15: Switching Modes
Switching Modes Startup 1. Make sure the power switch on the side of the robot is turned ON. 2. Press the Control button or the Cleaning mode on the remote control to start the robot. Pause The pause function is to switch the robot from the operating mode to the selected mode, and the robot can be paused by the following operations: 1. -
Page 16: Charging Instructions
Charging Instructions 1. The battery should be repaired and replaced by the aftersales department. 2. For the very rst operation,please let the robot run out of power. 3. When the robot is charged, the Control button will ash a green lamp in a circular manner. -
Page 17: Cleaning Modes
Press the "Preset" button to set the robot's scheduled cleaning time. (e.g. Set the robot to 6:30am in the standby mode, the machine will start cleaning at 6:30 am every day). • At the preset cleaning mode, all operations will be prompted to con rm. 1. - Page 18 Single Room Cleaning The Robot will perform Zigzag Cleaning according to the room environment. It will go back to the starting point and cover all to-be-cleaned areas. Side Brush Cleaning and Replacement Check the side brush's condition frequently to see if it has been damaged or entangled with other objects.
- Page 19 Dump all debris from the dust box into the garbage. Remove the pre- lter Open the high-e cient net cover, and remove the high-e cient lter and lter sponge. It is not recommended to wash the high-e cient lter with water. Please pat o the debris carefully.
- Page 20 Wash the dust box and Pre- lter 1. Dry the dust box and lter components. Keep them dry to ensure a longer service life. 2. After the pre- lter is used for 15-30 days, it should be washed once. 3. The maximum service life of the high-e cient lter is 3 months 1.
- Page 21 Cover the dust box and attach it to the main body. Maintenance of Rolling Brush Components Open the rolling brush components. Remove the rolling brush shaft and clean o any debris and hair. www.PyleUSA.com...
-
Page 22: Maintenance Of Other Components
Maintenance of Other Components Use the cleaning tools or a dry soft cloth to periodically clean the charging plate of robot chassis and the sensor window. Use a cleaning tool or soft cloth to clean the charging base terminal. www.PyleUSA.com... - Page 23 Water Tank / Mopping Feature Operation Mop function only available with purchase of Mopping Attachment Kit -- Pure Clean Model: PRTPUCRC6605 (Sold Separately) Cover the dust box and attach it to the main body Exchange water tank with dust box Take out mopping cloth and stick it properly on water tank bottom.
-
Page 24: Replaceable Modules
Replaceable Modules Range of Application: The product is suitable for cleaning houses, hotel rooms, and small o ces and provides good cleaning for various carpets (with carpet wool length less than 0.8 inch), wooden oors, hard oors, oor tiles, etc. www.PyleUSA.com... -
Page 25: Common Faults
Common Faults FAULTS POSSIBLE REASONS SOLUTIONS 1. The electrodes between the 1. Make sure that the electrodes The robot between the main body and main body and the charging cannot be the charging base are properly charged. base are not contacted properly. contacted. - Page 26 The ‘Weback’ App: • Available in Today’s Android and iOS Devices • Connects to Smart Vacuum Cleaner via QR Code • Operate and Navigate PUCRC660 vi APP • Choose Cleaning Modes and Check Status • E ciently Schedule Cleaning Plans www.PyleUSA.com...
- Page 27 What’s in the Box: • Smart Robot Vacuum • Dock Charging Base • Removable Dust Bin • (4) Sweep Brushes • (2) HEPA Filters • Remote Control • Cleaning Brush Technical Specs: • Cleaning Area Coverage: 120-180 Sq. Meter • Water Tank: 350 mL •...
