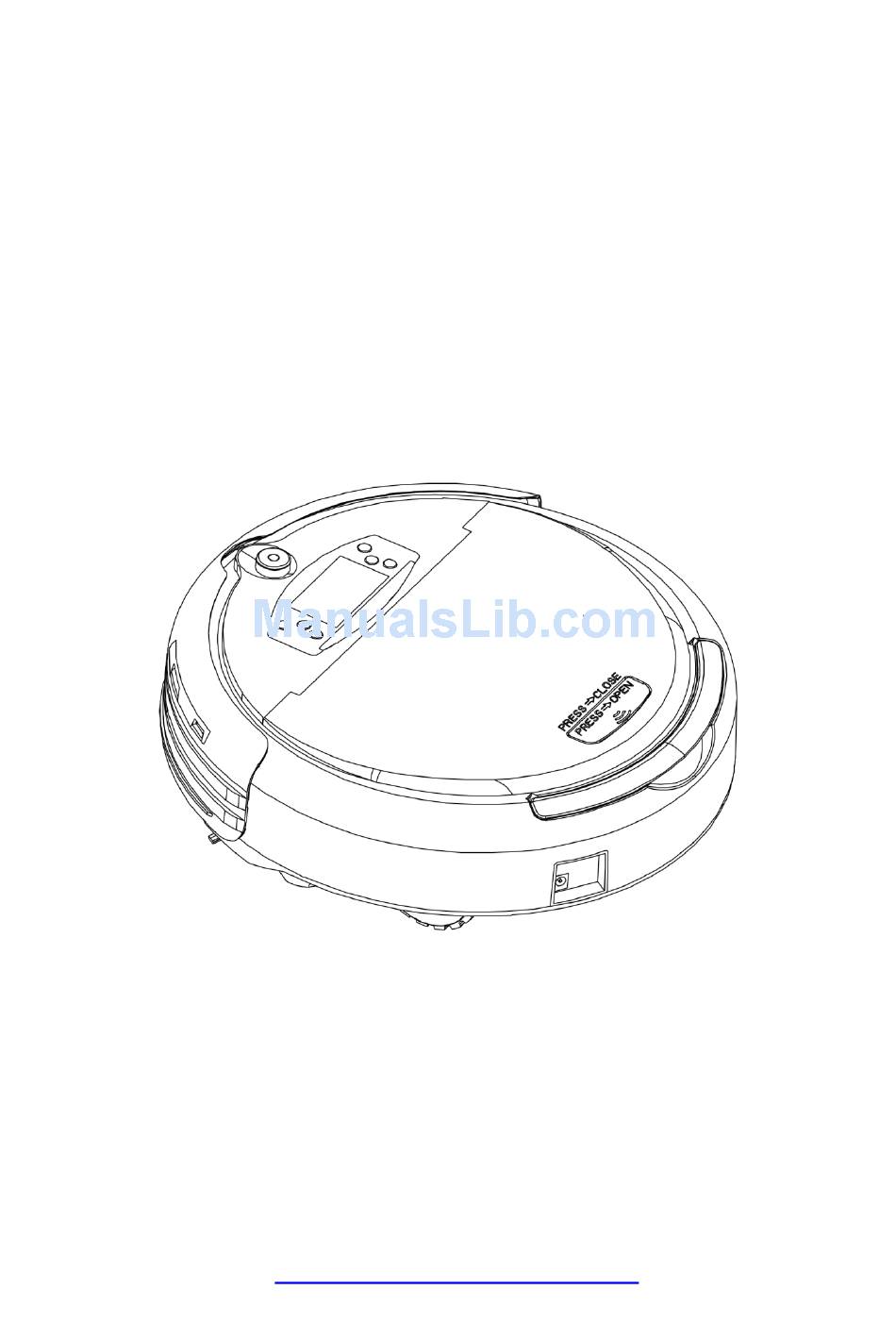

- Page 1 PURECLEAN PUCRC45 ROBOTIC VACUUM CLEANER USER MANUAL Check us out online to see tutorial videos and get support! www.Purecleanhome.com...
- Page 2 Components of the cleaner: Robot Adaptor Charging Dock Cleaning brush Manual Parts:...
-
Page 3: First Use
1. Power LED 2. Signal transmitting 3. Charging positive electrode 4. Charging negative electrode 5. Power DC socket FIRST USE Install the Docking Station 1. Install the Docking Station on flat ground firmly and against a vertical wall (fixed on the wall with the Docking Station sticker). - Page 4 First Charge *IMPORTANT* Before putting your robot on the charger for the first time – check if the battery is completely depleted by running the robot. (Make sure the hard power switch on the side is set to the on position) Once you have verified the battery is depleted allow the robot to charge undisturbed 5-6 hours before using.
- Page 5 Note: The robot is in military time and has no 12 hour mode Turn on the robot and short press “ ” about 1 second to enter the time setting status Press “ ” or “ ” to set the numbers Press ”...
- Page 6 Note about the power button The power switch will reset all the robot settings save the current time when pressed. Make sure to leave the robot power on while on the charger (or if backed off the charger) if you want any schedule settings to activate.
- Page 7 If you try the bot after the short run time - and it requires an additional charge to run again - the battery may be defective. You can submit a parts request on our website www.pyleusa.com for a replacement battery. Other Troubleshooting: Problem Solution...
- Page 8 of the robot, or it may cause personal injury. with combustible materials such as gasoline. Attention The cleaner will require regular cleaning and Store your unit on the charging base while in maintenance for proper function. For best regular use to ensure the battery is fully results, check the wheels, brushes and moving charged.
- Page 9 Answer: 1. Check the dustbin to see whether there is too much dirt in it. Clear the dustbin. (If there is too much dirt on the floor, there is no alarm even if there is a lot of dirt in the dustbin. 2. Check the main brush to see if there is too much hair and dust on it.
- Page 10 Answer: No. The electrode’s maximum DC output is 20V, which is safe voltage. ISSUES? QUESTIONS? NEED HELP? Don’t fret! Reach out to customer support at www.PyleUSA.com Technical Specifications: Model PUCRC45 Rated Voltage 14.4V Battery Rechargeable battery (the charging time is about 4-6 hours)
- Page 11 Rated Power <35W Operating Temperature Range -10℃ ~ 45℃ ≦85RH Operating Humidity Range Input Voltage/Current 20V / 900mA Wireless Remote Infrared 38KHZ φ320 x 90mm (including the wheel height) Specification Weight Battery Capacity 1500mAh Technical Specifications of Docking Station Models Parameters Remark Specification...
