Industrial Unmanaged Fast Ethernet Switch
Operating and Installation Instructions
Copyright by Wachendorff Prozesstechnik GmbH & Co KG, Industriestraße 7, D-65366 Geisenheim, Germany, Tel.: +49-6722/9965-20,
Fax: -78 All information is subject to change without notice, errors excepted.
ETHSW50K
24.05.2019
Wachendorff Prozesstechnik GmbH & Co. KG
Industriestr. 7, D-65366 Geisenheim, Germany
Phone: 0 67 22 / 99 65 -20
Fax: 0 67 22 / 99 65 -78
E-Mail: wp@wachendorff.de
www.wachendorff-prozesstechnik.de
Advertisement
Table of Contents
Summary of Contents for Wachendorff ETHSW50K

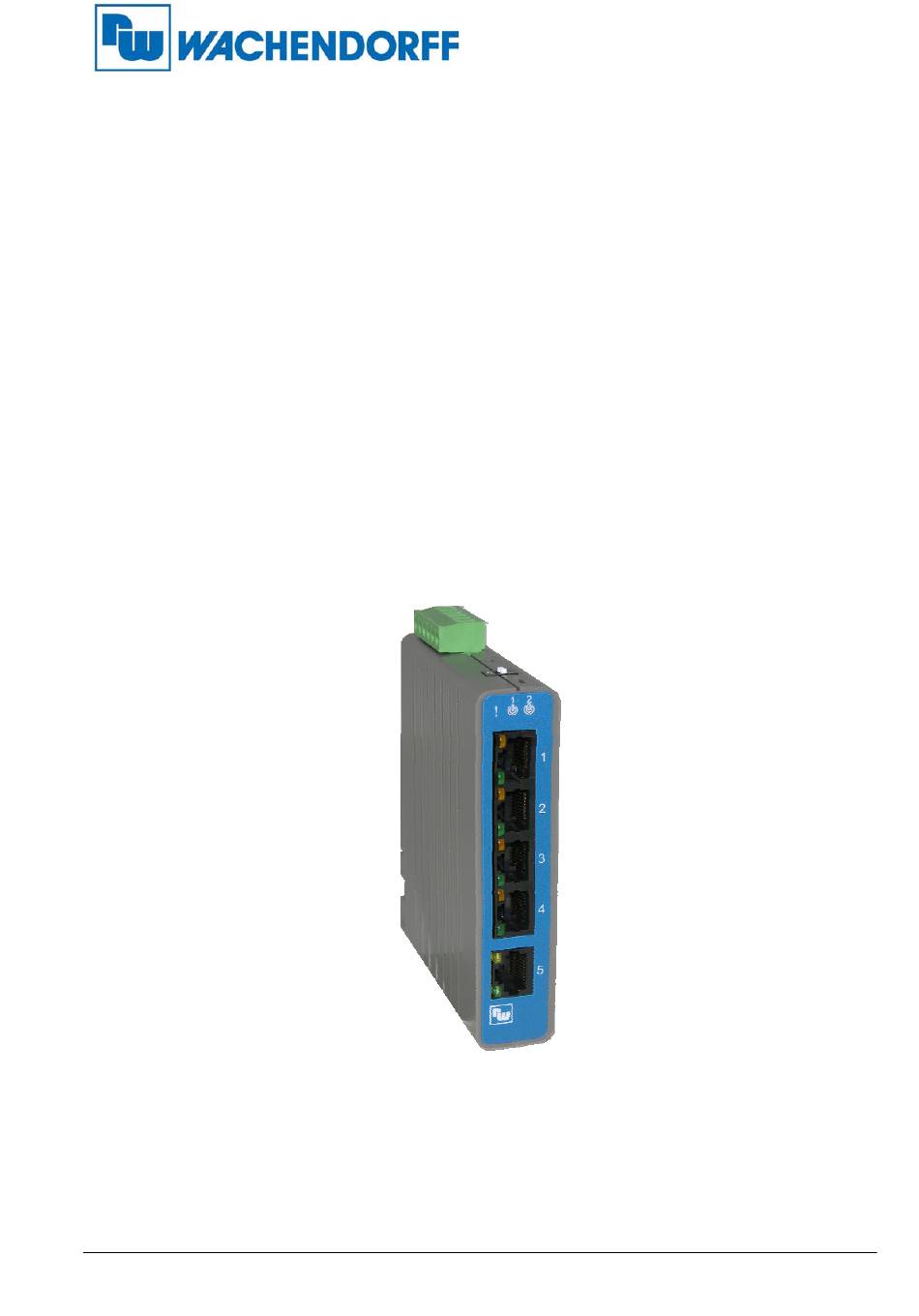

- Page 1 E-Mail: wp@wachendorff.de www.wachendorff-prozesstechnik.de ETHSW50K Industrial Unmanaged Fast Ethernet Switch Operating and Installation Instructions 24.05.2019 Copyright by Wachendorff Prozesstechnik GmbH & Co KG, Industriestraße 7, D-65366 Geisenheim, Germany, Tel.: +49-6722/9965-20, Fax: -78 All information is subject to change without notice, errors excepted.
-
Page 2: Table Of Contents
7.1 Setting the DIP switches ...................... 9 8. PIN assignment of the network connection ................. 10 9. Dimensions of the ETHSW50K series (in mm) ..............11 10. Copyright ..........................12 11. Exclusion of liability ....................... 12 ... -
Page 3: Foreword
Residual hazards The ETHSW50K corresponds to the state of the art and is safe to operate. The unit may present residual hazards if used and operated improperly by untrained personnel. This manual refers to residual hazards with the following symbol:... -
Page 4: Device Description
Operating and Installation Instructions Device description ETHSW50K 5 x 10/100BaseT(X) Unmanaged / Plug and Play IEEE 802.3, IEEE 802.3u, IEEE 802.3x IEEE 802.3az: EEE (Energy Efficient Ethernet) Broadcast- und Multicast-Flooding Storm Control Redundant voltage input / fault signal relay Output ... -
Page 5: Contents Of The Packaging
135 g Assembly DIN rail Contents of the packaging - Wachendorff ETHSW50K Industrial Fast Ethernet Switch unmanaged (1x) - Terminal plug for external power supply (1x) - Wachendorff Operating and Installation Instructions (1x) - Device warranty card (1x) - 5 -... -
Page 6: Installation
Mechanical Installation 5.1.1 Mounting on the DIN rail The ETHSW50K is equipped with a DIN rail holder on the rear side. Please follow the steps below for proper mounting on the DIN rail: 1. Tilt the module backwards with the top and press it onto the DIN rail. Align the module straight. -
Page 7: Electrical Installation
Electrical Installation 5.2.1 Connecting the power supply The ETHSW50K has a redundant voltage input. This ensures trouble-free operation in the event of a power supply failure or a voltage supply failure. Please follow the steps below for proper connection: ... -
Page 8: Connection Of The Fail Safe Relay
5.2.3 Connecting the network devices The ETHSW50K has 5 x 10/100 Mbit/s ports with RJ45 connectors. At each port there are 2 LEDs for signalling the operating mode (see chapter "6. LED status indicators"). Proceed as follows to ensure proper functioning: ... -
Page 9: Led Status Indicators
Broad or Multicast data frames. In addition, the ETHSW50K has a redundant voltage input and a fault relay for signalling the fault of a power supply unit or a power supply. -
Page 10: Pin Assignment Of The Network Connection
Operating and Installation Instructions PIN assignment of the network connection RJ-45 to RJ-45, straight-through cable Signal Tx + RJ-45, cross-over cable Signal Tx + - 10 - Stand: 24.05.2019... -
Page 11: Dimensions Of The Ethsw50K Series (In Mm)
Operating and Installation Instructions Dimensions of the ETHSW50K series (in mm) 90,05 25,00 7,33 113,00 4,50 97,38 - 11 - Stand: 24.05.2019... -
Page 12: Copyright
Wachendorff Prozesstechnik is not liable for any accidental loss resulting from the use or non-use of this product, such as loss of business profits.
