IM10095

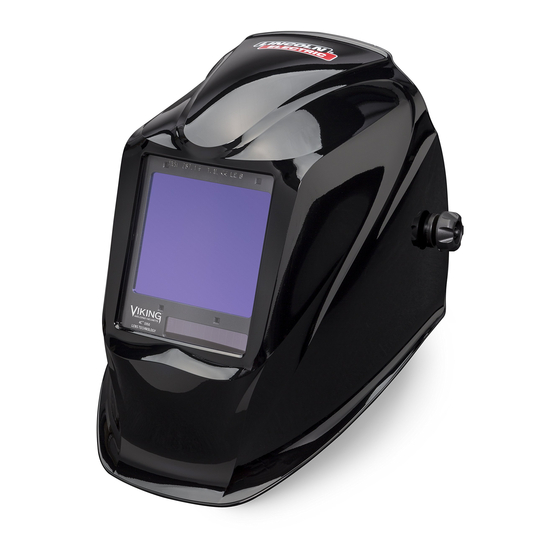

VIKING™ 3350 SERIES AUTO-DARKENING
May, 2011
HELMETS
4.50 x 5.25 STANDARD REPLACEMENT LENS
GRAPHICS MAY VARY
OPERATOR'S MANUAL
Copyright © Lincoln Global Inc.
• World's Leader in Welding and Cutting Products •
• Sales and Service through Subsidiaries and Distributors Worldwide •
Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIKING 3350 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Lincoln Electric VIKING 3350 Series

Summary of Contents for Lincoln Electric VIKING 3350 Series

  • Page 1 IM10095 VIKING™ 3350 SERIES AUTO-DARKENING May, 2011 HELMETS 4.50 x 5.25 STANDARD REPLACEMENT LENS GRAPHICS MAY VARY OPERATOR’S MANUAL Copyright © Lincoln Global Inc. • World's Leader in Welding and Cutting Products • • Sales and Service through Subsidiaries and Distributors Worldwide • Cleveland, Ohio 44117-1199 U.S.A.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page SAFETY WARNINGS – READ BEFORE USING HELMET INFORMATION SPECIFICATIONS OPERATING INSTRUCTIONS CARTRIDGE OPERATIONS/FEATURES HELMET CARE AND MAINTENANCE SHADE GUIDE SETTINGS CARTRIDGE AND LENS REPLACEMENT TROUBLESHOOTING WARRANTY INFORMATION REPLACEMENT PARTS, OPTIONAL ACCESSORIES...

  • Page 3: Safety Warnings - Read Before Using

    SAFETY WARNINGS – READ BEFORE USING WARNING ARC Rays can injure eyes and burn skin • Before welding, always inspect helmet and filter lens to be sure they are fitted properly, in good condition and not damaged. • Check to see that the clear lens is clean and securely attached to the helmet. •...

  • Page 4: Helmet Information

    HELMET INFORMATION This Auto-Darkening Welding Helmet will automatically change from a light state (shade 3.5) to a dark state (Shade 6-13) when arc welding starts. The filter automatically returns to a light state when the arc stops. Match your welding application to the shade indicated on the shade chart. (See Page 6) •...

  • Page 5: Specifications

    SPECIFICATIONS LCD Viewing Area 95 x 85mm (3.74 x 3.34in.) Cartridge size 114 x 133mm (4.50 x 5.25in.) UV/IR Protection Up to Shade DIN 16 at all times Arc Sensors Light State Shade DIN 3.5 Variable Welding Shades DIN 6 to 13 Shade Control Dial knob - full adjustment Power Supply...

  • Page 6: Operating Instructions

    OPERATING INSTRUCTIONS Headgear Adjustment Crown Adjustment Ratchet Knob Tilt Adjustment Fore-Aft Adjustment HEAD SIZE ADJUSTMENT: HEADGEAR TIGHTNESS is adjusted by push- ing in the Ratchet Knob and turning to adjust for the desired head size. This knob is located at the back of the helmet. HEADGEAR CROWN ADJUST- MENT is made by adjusting for comfort and snapping the pin into the hole to lock securely in place.

  • Page 7: Cartridge Operations/Features

    CARTRIDGE OPERATION/FEATURES Variable Shade Control The shade can be adjusted from shade 6 to 9 and 9 to 13 based upon welding process or application (refer to shade selection chart on page 6). Shade is adjusted by setting the shade range switch to the proper range, then use the shade dual scale dial to set the desired shade.

  • Page 8: Helmet Care And Maintenance

    HELMET CARE AND MAINTENANCE Cleaning: Clean helmet by wiping with a soft cloth. Clean cartridge surfaces regularly. Do not use strong cleaning solutions. Clean sensors and solar cells with soapy water solution and a clean cloth and wipe dry with a lint-free cloth. Do NOT submerge shade cartridge in water or other solution.

  • Page 9: Cartridge And Lens Replacement

    CARTRIDGE AND LENS REPLACEMENT Replacing Front Clear Cover Lens: Replace the front cover lens if it is dam- aged. Remove ADF holder assembly per Figure 1. Remove front cover lens from helmet assembly. Carefully remove gasket from cover lens. Install new cover lens into gasket and assemble to helmet shell.

  • Page 10: Troubleshooting

    TROUBLESHOOTING GUIDE Test your shade cartridge prior to welding by directing the front of the cartridge toward a bright source of light. Then, using your fingers, rapidly cover and uncov- er the sensors. The cartridge should darken momentarily as the sensor is exposed.

  • Page 11: Warranty Information

    WARRANTY INFORMATION WARRANTY INFORMATION: Reference IMWS1 included in Literature. SPATTER DAMAGE IS NOT COVERED BY WARRANTY: Do not use this product without the correct protective clear lenses installed properly on both sides of the Auto-Darkening Filter cartridge (ADF). The clear lenses supplied with this helmet are properly sized to work with this product and substitutions from other suppliers should be avoided.
  • Page 12 • World's Leader in Welding and Cutting Products • • Sales and Service through Subsidiaries and Distributors Worldwide • Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com...
