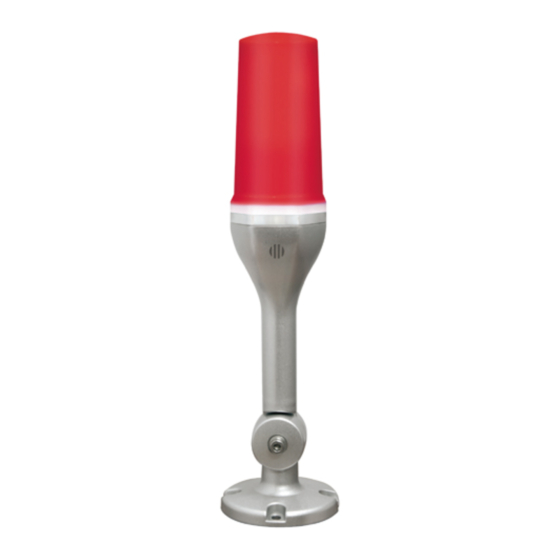

Multiple Color LED Steady Tower Lights
QT56MCL
30
60
23
44
Thank you for purchasing Qlight's products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. During wiring or maintenance, please completely turn off the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a fire to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to fire, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to fire, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, fire, electric shock and loss of life.)
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the
product that would void the warranty.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn off the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product's specification.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
Ordering Specifications
QT56MCL
-
[Model number]
|
• QT56MCL
• QT56MCL-BZ
Please scan the QR code for
more detailed product information.
QT56MCL
www.qlight.com
90dB
24
[Voltage]
|
• 24 - DC24V
Product Specifications
Model number
Voltage
QT56MCL
Steady
DC24V
MAX. 0.042A
QT56MCL-BZ
Steady
/w built-in buzzer
Signal/ Audible line current(Per each layer)
•
Model number
QT56MCL
• Protection rating : IP44 (QT56MCL)
IP23 (QT56MCL-BZ)
• Ambient operating temperature : -30°C to +60°C
1
Current
Certificate
Weight
-
0.45kg
0.48kg
Current
DC24V
Signal line current
0.042A
Audible line current
0.032A
Color
7 Colors
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Qlight QT56MCL
Summary of Contents for Qlight QT56MCL
-

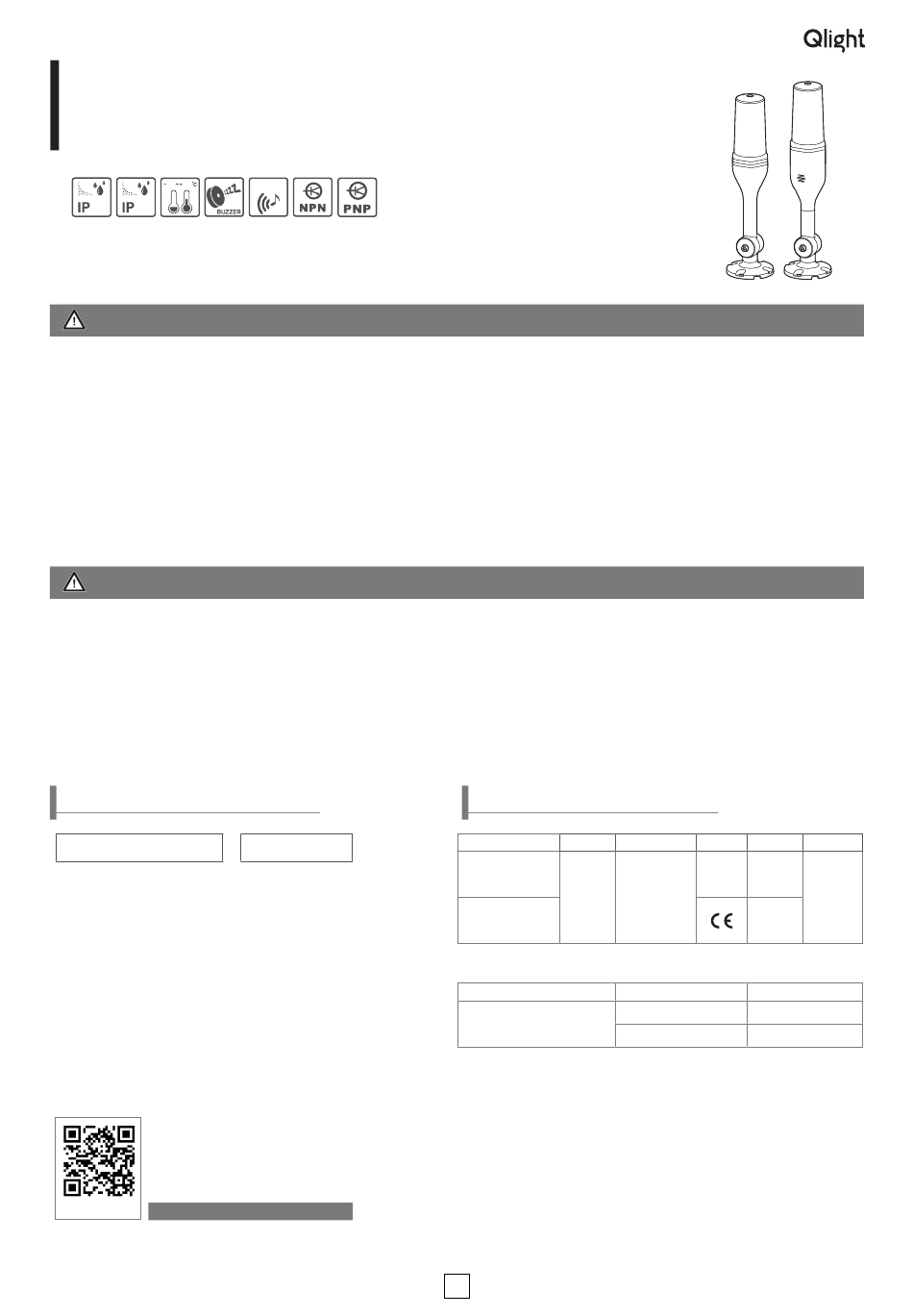

Page 1: Product Specifications
