System XS
XS MSG2-AP Motor Control Unit
XS 1B-D Control Unit
XS 2B Double Control Unit
Installation and Operation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XS MSG2-AP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elsner XS MSG2-AP

Summary of Contents for Elsner XS MSG2-AP

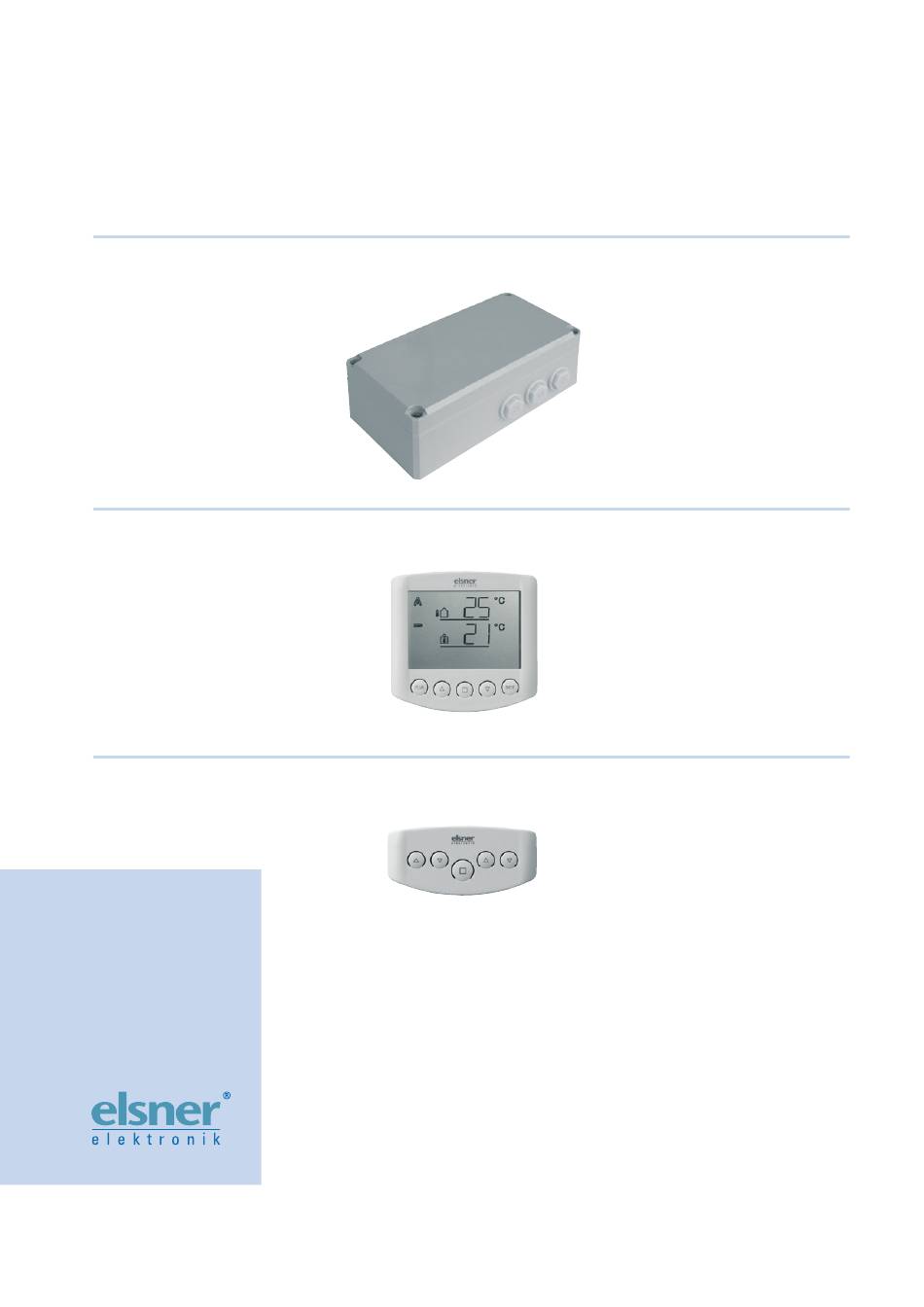

  • Page 1 System XS XS MSG2-AP Motor Control Unit XS 1B-D Control Unit XS 2B Double Control Unit Installation and Operation...

  • Page 2: Table Of Contents

    ....................3 Connection and combination possibilities for the XS system ........4 A: Manual operation of drives using the XS MSG2-AP wireless motor control unit ....4 B: Central control systems with Solexa/Arexa................5 C: Individual automatic control using Solexa/Arexa ..............7 D: Combinations of central automation and individual automation ..........
  • Page 3 XS 2B technical specifications...................... 62 XS 1B-D technical specifications ....................62 XS system: XS MSG2-AP motor control unit, XS 2B double control unit, XS 1B-D control unit. From software versions XS MSG2-AP 1.0, XS 2B 1.0, XS 1B-D 1.0 onward, • Issued: 01.03.2010.

  • Page 4: The Xs System: Connectivity, Installation, Commissioning And Basic Settings

    The XS system: Connectivity, installation, commissioning and basic settings...

  • Page 5: Connection And Combination Possibilities For The Xs System

    The control units work on batteries, while shades and windows are moved using conventional, wired motors which are directly connected to the XS motor control units. A: Manual operation of drives using the XS MSG2-AP wireless motor control unit XS MSG2-AP motor...

  • Page 6: B: Central Control Systems With Solexa/Arexa

    Required equipment: • XS MSG2-AP motor control unit (with 2 drive connections) • XS 2B double control unit • Further XS 2B double control unit may be used for operation from elsewhere in the room Procedure: • Installation of the motor control unit and connection to the drives •...
  • Page 7 Procedure: • Installation of Solexa or Arexa (control unit and weather station), see Solexa/Arexa manual • Installation of the motor control unit and connection to the drives • Installation of the XS 2B control unit • Commissioning of Solexa/Arexa including configuration of wireless connections between controls and weather station and basic setting of the drives connected to the Solexa/Arexa systems using the Solexa/Arexa control unit (see Solexa/Arexa manual)

  • Page 8: C: Individual Automatic Control Using Solexa/Arexa

    For each drive which shall be independently controlled, 1 XS 1B-D control unit with display (maximum of two for XS MSG2-AP). Parallel operation for both drives with XS MSG2-AP as a group is also possible (with one XS 1B- D control unit only).

  • Page 9: D: Combinations Of Central Automation And Individual Automation

    Procedure: • Installation of Solexa or Arexa (control unit and weather station), see Solexa/Arexa manual • Installation of the motor control unit and connection to the drives • Installation of the control unit • Commissioning of Solexa/Arexa including configuration of wireless connections between controls and weather station and basic setting of the drives connected to the Solexa/Arexa systems using the Solexa/Arexa control unit (see Solexa/Arexa manual)

  • Page 10: Installation

    The XS system devices may only be operated as a fixed installation, meaning in built-in condition and following the completion of all installation and commissioning work, and only in the intended environment. Elsner Elektronik shall not be liable for any changes to norms or standards after the publication of these operating instructions.

  • Page 11: Notes On Radio Devices

    Notes on radio devices When performing the layout, ensure that there is sufficient radio range. The range of wireless control systems is limited by the statutory regulations governing wireless devices, and by site conditions (if the radio signal must penetrate walls and ceilings). A minimum distance of 30 cm must be maintained between wireless transmitters in order not to compromise the quality of reception.
  • Page 12 Should cleaning or maintenance work be performed in proximity to the shades or windows, the control system (weather stations and motor control units) must be without voltage by tripping the fuse fitted on site, and secured against re- activation. This is to ensure that the switched-off drives cannot operate. A certain amount of time may pass before falling rain is recognised by the weather station, depending on the rain amount and outdoor temperature.

  • Page 13: Xs System Solexa/Arexa Connection Overview

    XS system Solexa/Arexa connection overview 230V AC mains power supply 230V AC mains power supply...

  • Page 14: Fitting Of The Xs Msg2-Ap Motor Control Unit And Connection To The Drives

    "Motor Left" PE/N/!/" drive connection "Motor Right" PE/N/!/" drive connection The XS MSG2-AP motor control unit is fitted with two connection points for drives ("Left" and "Right" connections). Parallel switching of further drives from a single connection point is possible. Check whether a group control relay is required by the motor manufacturer.
  • Page 15 We offer appropriate power adaptors for direct current drives. Where required, we will need you to indicate the motor types, the manufacturer and – if available – the technical specifications. Run the power supply and drive connection cable through the grommets and connect the voltage (L1/N/PE) and "Left"...

  • Page 16: Examples Of Multiple Drives Connected As A Group To A Single Connection

    Examples of multiple drives connected as a group to a single connection...

  • Page 17: Installing The Xs 2B Double Control Unit

    Installing the XS 2B double control unit The control unit is battery-powered and communicates wirelessly with the motor control unit. No connection cables are therefore required. The control unit must only be installed and used in dry, interior spaces. Relative air humidity must not exceed 80%. Avoid condensation.

  • Page 18: Installation Of The Xs 1B-D Control Unit

    Check that the polarity of the batteries is correct. Two commercially available AA type (Mignon/ LR6) batteries (1.5 rechargeable batteries (1.2 V) are required. Close the housing by lowering the forward part of the housing (with the PCB) from above over the rear panel. The latch mechanism on the underside must engage with a clear "click".

  • Page 19: Rear View And Drill Sketch

    Rear view and drill sketch All values in mm, may vary due to technical requirements. Dimensions in mm...

  • Page 20: Inserting The Batteries

    Inserting the batteries The battery compartment is located inside the housing. Open the control unit by releasing the catch on the bottom of the housing. To do this, press a screwdriver directly into the slot. Check that the polarity of the batteries is correct.

  • Page 21: Initial Start-Up

    (motor control unit, weather station) and the operation buttons (control unit). In order to configure a wireless connection, the XS MSG2-AP motor control unit (and if necessary the Solexa/Arexa weather station) must be installed, supplied with voltage, and the housing opened.

  • Page 22: Wireless Connection Between Motor Control Unit And Weather Station

    LED within the weather station. Activate the motor control unit configure/delete mode for the weather station: XS MSG2-AP motor control unit configure/delete button Press briefly once. Both LEDs on the motor control unit are now on, and the weather station configure/delete mode is activated.

  • Page 23: Wireless Connection Between Motor Control Unit And Double Control Unit

    XS 2B Activate the motor control unit configure/delete mode for the double control units: XS MSG2-AP motor control unit configure/delete button Press briefly twice. Both LEDs now flash, and the configure/delete mode for the double control unit is activated. Configuring a double control unit:...

  • Page 24: Wireless Connection Between Left-Hand Channel Motor Control Unit And Control Unit With Display

    Activate the motor control unit configure/delete mode for a control unit on the left channel: XS MSG2-AP motor control unit configure/delete button Press briefly three times. The left-hand LED is now on, and the mode for configuring/ deleting an XS 1B-D control unit on the left channel is activated.
  • Page 25 You are in Automatic settings when the screen indicates: Control unit set-up button: Press for min. 3 secs. You are in Basic settings when the screen indicates: Control unit manual/automatic button: Press briefly once The screen indicates: Control unit set-up button: Press briefly once The control unit is now configured for the left channel, and the LED on the...

  • Page 26: Wireless Connection Between Right-Hand Channel Of Motor Control Unit And Control Unit With Display

    (for motors fitted to the "Left" or "Right" connections). Activate the motor control unit configure/delete mode for a control unit on the right channel: XS MSG2-AP motor control unit configure/delete button Briefly press four times. right-hand mode configuring/deleting an XS 1B-D control unit on the right channel is activated.
  • Page 27 Deleting an already configured display (Control unit basic control unit: settings menu): During initial commissioning, the XS MSG2-AP configure/delete screen indicates that no wireless button: Press for longer than connection has been configured: 6 secs. The LED on the motor control unit...
  • Page 28 Control unit manual/automatic button: Press briefly once The screen indicates: Control unit set-up button Press briefly once The control unit is now configured for the right channel, and the LED on the motor control unit is off. After configuring the wireless connection, you can proceed with setting the basic settings for the drives.

  • Page 29: Basic Settings (Drive With Xs 1B-D Control Unit)

    Basic settings (drive with XS 1B-D control unit) Drives of motor control units whose automatic settings are obtained from an XS 1B-D control unit are normally configured after setting up the wireless connection between the motor control unit and control unit. Changes can be subsequently made to the basic settings, such as to the operating position.

  • Page 30: Assigning Buttons And General Notes On Basic Settings

    Assigning buttons and general notes on basic settings You are now in Basic settings Change Quit Confirm/ Continue You can exit Basic settings at any time by pressing the button. The changes which have been made will not then be saved. If no button is pressed in Basic settings for 5 minutes, the screen will automatically switch to display the temperature.

  • Page 31: Wireless Connection Between Control Unit And Motor Control Unit

    1. Wireless connection between control unit and motor control unit The first step of the basic settings allows you to configure a wireless connection to a motor control unit. The screen indicates: = Continue To configure a wireless connection, please follow the implementations in the chapter "Wireless connection, left/right-hand channel of motor control unit –...

  • Page 32: Single Or Parallel Operation Of The Drives (For Left-Hand Channel Only)

    (Solexa, shades) when connected to an awning or blind. (Arexa, window) when connected to a window. (Unknown) when you do not know what type of drive is connected. In this case, no automatic settings can be made. Confirm your selection using the button, and you will be taken to the next settings step.

  • Page 33: Operating Position

    If you make any changes here (switching from individual automation to parallel control, or vice-versa), please skip the following step, "4. Operating position" using and then save your settings as shown in „5. Saving your basic settings". To set an operating position, you should once again enter the basic settings area and configure the operating position.

  • Page 34: Retracted/Closed Position

    4.1. Retracted/closed position After confirmation your (Configure) command, the prompt (Open) will appear in the case of a shade, and (Close) in the event of a window. Shading: Window: First, fully retract the awning or blind First, fully close the window using the using the button, so that no shade button.

  • Page 35: Slat Angle

    4.3. Slat angle The prompt (Reversing) will only appear in the event of a shade. Shading: With venetian blinds, use to open the slats to the desired angle. With awnings or if the slats should not be opened, the shade should not be operated.
  • Page 36 If no weather station is configured in the system, no outdoor temperature, wind or brightness values are displayed. The control unit cannot be switched to Automatic mode ( ). Manual operation is still however possible.

  • Page 38: Setting The Automatic (Xs 1B-D Control Unit) And Manual Operation Of The Drives

    Setting the automatic (XS 1B-D control unit) and manual operation of the drives...

  • Page 39: Automatic

    Automatic Introduction Automatic settings can only be applied when Solexa or Arexa control systems are used with the weather station. Under central control, the automatic control proceeds through the Solexa or Arexa control system (see also the "Connection and combination options for the XS system"...
  • Page 40 be without voltage by tripping the fuse fitted on site, and secured against re- activation. This is to ensure that the switched-off drives cannot operate. A certain amount of time may pass before falling rain is recognised by the weather station, depending on the rain amount and outdoor temperature. Please also bear in mind that in the event of a power failure and rainfall, external awnings will not be automatically retracted if no emergency generator is installed.

  • Page 41: Accessing The Automatic Settings For Shades (Xs 1B-D Control Unit)

    Accessing the automatic settings for shades (XS 1B- D control unit) You can access the automatic settings in the following way: Press the button on the weather data screen for a minimum of 3 seconds to access the automatic settings. You have reached the automatic settings as soon as the two symbols are shown on the left of the screen.

  • Page 42: Automatic Functions For Shades

    Automatic functions for shades To ensure that the awning or blind provides optimal shade, values for automatic operation must be adjusted to local conditions. The following settings will need to be completed in succession: A. Brightness for shade B. Extension delay C.

  • Page 43: Extension Delay

    B. Extension delay After completing the setting for brightness, you now need to provide a delay time after which the shades are extended. This delay ensures that the shades do not continuously retract and extend in rapidly changing light conditions. The default setting for extension is 1 minute.

  • Page 44: Indoor Temperature Guard

    D. Indoor temperature guard After setting the retraction delay, you now need to select an indoor temperature, below which the shade operation is stopped. You can use the warmth of the sun with the help of the indoor temperature guard to obtain the desired room temperature (such as in winter).

  • Page 45: Wind Alarm

    The outdoor and indoor temperature guards only operate in automatic mode. Manual operation is still possible. When manually closing or opening the shades, you must pay attention to potential icing. The default setting for the outdoor temperature guard is 5°C. Adjust the value by pressing (higher) and (lower), or select...

  • Page 46: Rain Alarm

    You can set the value by pressing (higher) and (lower), or select (Off) to switch off this function. You can reach the settings by pressing once again when "1 m/s" is displayed. Then, press to proceed to set the next parameter. G.

  • Page 47: Accessing The Automatic Settings For Windows (Xs 1B-D Control Unit)

    Accessing the automatic settings for windows (XS 1B-D control unit) You can access the automatic settings in the following way: Press the button on the weather data screen for a minimum of 3 seconds to access the automatic settings. You have reached the automatic setting when the two symbols are shown on the left of the screen.

  • Page 48: Automatic Functions For Windows

    Automatic functions for windows To ensure optimal ventilation, values for automatic operation must be adjusted to local conditions. The following settings will need to be completed in succession: A. Indoor temperature for opening B. Outdoor temperature guard C. Wind alarm D.

  • Page 49: Outdoor Temperature Guard

    B. Outdoor temperature guard After setting the indoor temperature, you now need to select an outdoor temperature, below which the window shall remain closed. The outdoor temperature guard keeps the window closed when below the selected temperature. This means that in automatic mode, an opened window is closed and is then re-opened...

  • Page 50: Rain Alarm

    The wind alarm remains active for 5 minutes. If the set wind value is once again exceeded in these 5 minutes, the alarm time will be restarted. The default setting for closure due to wind is 4 m/s. You can set the value by pressing (higher) and (lower), or select (Off) to...
  • Page 51 Press the button to save your entries and return to the weather data screen. Press to exit without saving any of your automatic settings.

  • Page 52: Personal Setting Data For Automatic Functions

    Personal setting data for automatic functions Shade A: Shading when brightness exceeds kLux Extension time delay Min. Retraction time delay Min. Shade when indoor temperature exceeds °C Outdoor temperature guard below °C Wind alarm from Rain alarm (Yes/No) Shade B: Shading when brightness exceeds kLux Extension time delay...

  • Page 53: Manual Operation

    Manual operation The XS 2B double control unit Stop Down The drives connected to the motor control unit can be manually operated using the left-hand pair of buttons (for a drive connected to the "Left" terminal) and right-hand pair (for a drive connected to the "Right" terminal). The arrow buttons are equipped with an automatic timer.

  • Page 54: The Xs 1B-D Control Unit With Display

    The XS 1B-D control unit with display Assigning buttons and weather data screen display icons Outdoor Automatic temperature Manual Indoor Battery temperature Rain alarm Wind alarm Manual/ Stop Down Setting automatic In its initial position, the control system's control unit displays the current outdoor temperature (upper row) and indoor temperature (lower row), as well as the function mode (automatic or manual), battery status and current alarm messages for rain or wind.

  • Page 55: Brightness And Wind Speed Displays

    Manual mode active. The connected drive was manually actuated (using the arrow buttons) or the button was pressed. The automatic functions are therefore switched off, meaning that there is no control based on brightness or temperature. The rain alarm and wind alarm safety functions remain active. The control system remains in manual mode until the button is used to switch to automatic mode.

  • Page 56: Using The Buttons

    Using the buttons Manual control as well as the default settings for automatic functions and basic settings for the connected shades is achieved using the buttons on the control unit. Stop Down The connected awnings or blinds can be manually operated using the buttons.

  • Page 57: Simultaneous Use Of Multiple Control Units

    Simultaneous use of multiple control units When a drive can be manually actuated using multiple control units, it is the last received command that is always being performed. This means that the operating command of a control unit is interrupted when a button is pressed on another control unit.

  • Page 58: Service

    Service...

  • Page 59: Maintenance And Care

    Maintenance and care The housing and screens of the control units shall be cleaned as required using a dry cloth. Abbreviations kLux: Kilolux (= 1000 Lux), unit of brightness m/s: Metre per second, unit of wind strength Error Off, switched off On, switched on Save, Save the applied settings Table: Wind speed...

  • Page 60: Error Messages Xs 1B-D Control Unit

    • Wind alarm from 4 m/s • Rain alarm switched on Window: • Open from indoor temperature > 25°C • Guard for outdoor temperature > 5°C • Wind alarm from 4 m/s • Rain alarm switched on Error messages XS 1B-D control unit Instead of temperature, brightness and wind speed values, error messages can be displayed onscreen in the weather data display.

  • Page 61: Wireless Fault

    WIRELESS fault and the wireless icon are displayed on the screen. Cause: No wireless connection between control unit and motor control unit. The motor control unit is out of order (such as, it has no voltage) or the wireless connection has been interrupted or has not been configured. Procedure: The configuration of the wireless connection between the weather station and the control unit is described in chapter "Basic settings: 1.

  • Page 62: Technical Specifications

    Troubleshooting should only be performed by trained specialist personnel. You shall therefore please contact your installer. instead of brightness or instead of wind speed Cause: The brightness sensor and/or wind sensor of the weather station is/are faulty. Procedure: The relevant sensor must be checked. Troubleshooting should only be performed by trained specialist personnel.

  • Page 63: Xs Msg2-Ap Technical Specifications

    XS MSG2-AP technical specifications Operating voltage 230 V AC / 50 Hz Dimensions approx. W=160 mm, H=80 mm, D=57 mm Ambient temperature -20…+50°C Protection class IP 44 XS 2B technical specifications Operating voltage 2 x 1.5 V (2 AA/Mignon/LR6 batteries) or 2 x 1.2 V (2 AA/Mignon/LR6 rechargeable...
  • Page 64 Elsner Elektronik GmbH Steuerungs- und Automatisierungstechnik Herdweg 7 D-75391 Gechingen Germany Phone: +49 (0) 70 56/93 97-0 Fax: +49 (0) 70 56/93 97-20 info@elsner-elektronik.de http://www.elsner-elektronik.de...
