2. Assuming that the Cyclone is connected to the COM1 serial port of the PC, switch from
"Ethernet Port" to "Serial Port", at which point the second drop-down box will display
COM1. Click "Open" to get a dialog box similar to the following:
3. The Cyclone now needs to be programmed with IP numbers for the network on which it
will operate. The Cyclone IP Number field must contain a unique IP number.
User Manual For CYCLONE Programmers

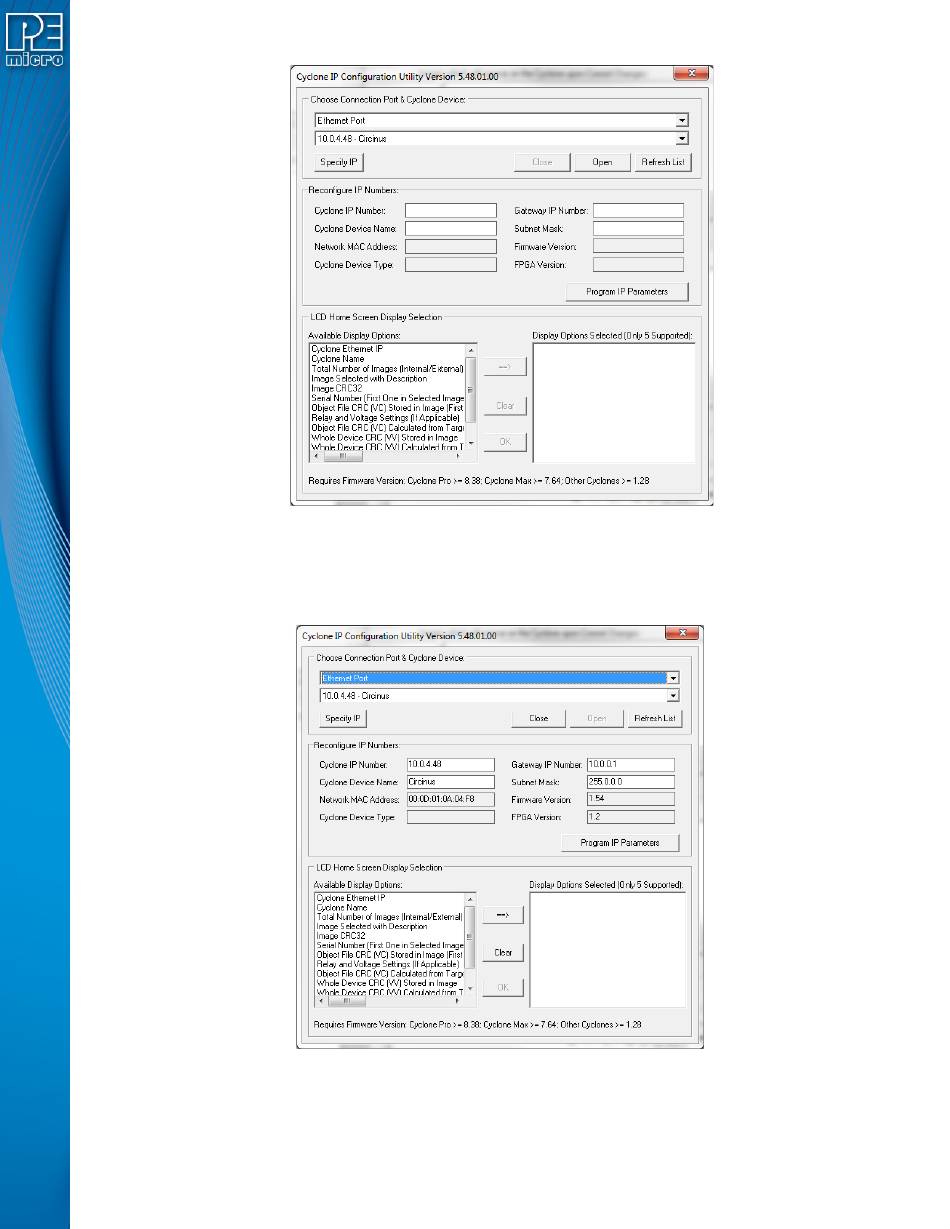

Figure 9-3: Cyclone IP Configuration Utility - Initial Screen
Figure 9-4: Cyclone IP Setup Utility - Continue Setup
