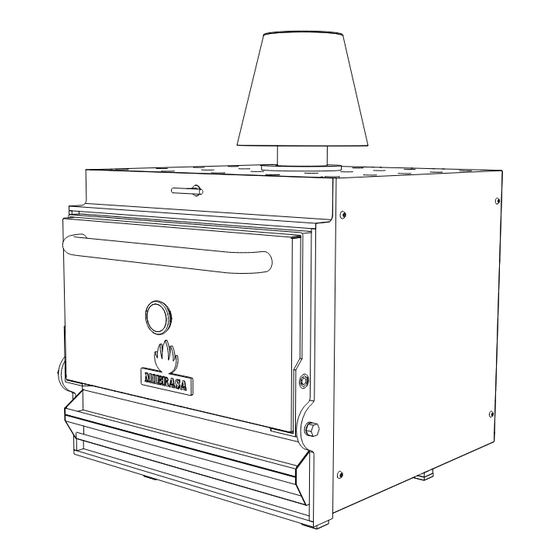

Mibrasa HMB 75 User Manual

Mibrasa HMB 75 User Manual

Hide thumbs Also See for HMB 75:

Advertisement

MIBRASA
OVEN
®
USER MANUAL
Read all instructions before installing and using the appliance.
Save these instructions.
www.mibrasa.com
Feeding the Senses!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMB 75 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mibrasa HMB 75

  • Page 1 MIBRASA OVEN ® USER MANUAL Read all instructions before installing and using the appliance. Save these instructions. www.mibrasa.com Feeding the Senses!
  • Page 3 Mibrasa, the Masters of fire! We are fascinated by fire and invite you to experience grill cooking for yourselves. Cook and create in a way that awakens your taste buds and reminds us of the beauty in simplicity.
  • Page 5: Table Of Contents

    Contents 1. Introduction 2. Mibrasa oven description ® 3. Models 4. Installation instructions 4.1. Requirements for oven surroundings 4.2. Installation and assembly instructions 4.3. Smoke extraction 5. Instructions of use 5.1. Loading the charcoal 5.2. Lighting the charcoal 5.3. Prior to cooking 5.4.
  • Page 6: Introduction

    1. Introduction Mibrasa charcoal ovens are robust and solid, an essential piece of equipment for any ® kitchen, giving a unique and delicious flavor to all your ingredients. Mibrasa charcoal ovens comply to the strict standards & regulations set by internationally ®...
  • Page 7 ® The versatility of Mibrasa ovens We have a wide range of models and accessories allowing you to completely personalize your Mibrasa oven and adapt it to your needs. ® The advantages of Mibrasa ovens: ® The MIBRASA HMB AB SB has a heating rack with an average temperature of 40ºC, perfect for ®...
  • Page 8: Mibrasa Oven Description

    Grill sizes and approximate diners per service: Model Grill dimensions (mm) Diners per service HMB MINI 540 x 345 35-45 HMB MINI PLUS 540 x 395 45-65 HMB 75 540 x 595 75-95 HMB 110 760 x 595 110-130 HMB 160 760 x 795 160-190...
  • Page 9 Included accessories: Mibrasa tongs Ash shovel Grill brush ® Grill Ember poker Mibrasa Ecofire firelighters ® Optional accessories: Extra grill Dissipating filter Firebreak Kitchenware (consult online catalog at www.mibrasa.com)
  • Page 10: Models

    3. Models Dimensions in mm HMB Worktop models Models HMB MINI HMB MINI PLUS 230 1025 HMB 75 1075 1025 HMB 110 1160 1115 HMB 160 1010 1360 1115 HMB SB Worktop model with heating rack Models HMB SB 75...
  • Page 11 HMB AB with cupboard below Models HMB AB 75 1075 1390 1700 HMB AB 110 1160 1430 1740 HMB AB 160 1010 1360 1430 1740 * Adjustable leg height: 135-195 mm HMB AB SB with cupboard below and heating rack Models HMB AB SB 75 1075...
  • Page 12 HMB AC 160 1015 1365 1900 1070 Measurements are subject to technical changes. Workspace for the chef and recommended height of the worktop models Models HMB MINI 1100 HMB MINI PLUS 1100 HMB 75 1100 HMB 110 1100 HMB 160 1100...
  • Page 13: Installation Instructions

    4. Installation instructions 4.1. Requirements for oven surroundings The installer should contact the local building or fire officials concerning any installation restrictions or need for inspection of the oven installation. The minimum hearth extension areas to be covered with relationship to the door opening of the oven for combustible floors should be the following: 762 mm to each side of the door opening 914 mm in front of the door opening...
  • Page 14 4 Place the oven on the 5 Place back the ash collector countertop Lifting by hand (not recommended) Open the door 2 Remove the grills 3 Remove the charcoal grids 4 Remove the charcoal grids 5 Remove the ash collector, dis- 6 If lifting by hand use the two support sipating filter and firebreak...
  • Page 15 10 Place back the charcoal 11 Place back the grills grids Side with narrower slits facing up Models with heating rack: - HMB SB 75, 110, 160 - HMB AB SB 75, 110, 160 Unscrew the two screws on 2 Position the heating rack in 3 Align the screws with their the roof of the oven place...
  • Page 16 Models with cupboard below: - HMB AB 75, 110, 160 - HMB AB SB 75, 110, 160 - HMB AC 75, 110, 160 Install the legs/wheels of the cupboard 2 Remove the ash collector 3 Insert the forks of a lifting Lift the oven device in the ash collector space...
  • Page 17 Models with full cupboard: - HMB AC 75, 110, 160 Assemble the oven with cupboard below Follow the steps for models with cupboard below 2 Open the door 3 Remove the frontal panel 4 Remove the grill 5 Place oven with cupboard 6 Place back the grill 7 Place back the frontal panel below in position...
  • Page 18: Smoke Extraction

    6.3 on cleaning and special care. It is recommended that the ductwork is installed with a vent cap in order to improve the removal of smoke. MIBRASA Protective components ® Firebreak: Is installed where the smoke leaves the oven.
  • Page 19 (mm) - (width, depth) floor (mm) HMB MINI 2500 1000 x 1000 2000 HMB MINI PLUS 2500 1000 x 1000 2000 HMB 75 2800 1300 x 1300 2000 HMB 110 3200 1500 x 1300 2000 HMB 160 3500 1500 x 1500...
  • Page 20 2) Oven installed under exhaust hood with other cooking appliances. General ventilation ductwork It is necessary to install the oven with the firebreak and dissipating filter. This will prevent sparks and flames from escaping the oven. The smoke will be filtered reducing the flow and cooling its temperature down prior to contact with the ventilation system.
  • Page 21: Instructions Of Use

    It is compulsory that a member of the kitchen staff is present for the entire lighting up process. During the fire- up, the door must remain closed. This will ensure the most effective light up while minimizing any risk of accidents. It is very important to respect the maximum charcoal load in every Mibrasa oven.
  • Page 22: Prior To Cooking

    5.3. Prior to cooking Wait until the charcoal has 2 Open the door 3 Place back the grills turned into embers 40 MIN 4 Close the door 5 Turn the upper damper 6 Close the ash collector/ to 45º lower damper 5.4.
  • Page 23: After Service

    5.5. After service Close the upper damper Check the ash collector/ lower damper is closed 5.6. Reutilizing charcoal from the previous service 2 Remove the grills 3 Move the charcoal around Open the door so the ash falls into the ash collector It is necessary to use heat- proof gloves when removing...
  • Page 24: Maintenance And Safety Standards

    Do not use chemical products or water to clean the inside of the oven. Grills: Clean using the grill brush before and after each use. Ash collector: Open the ash collector, use the ash shovel by Mibrasa to remove the ash ®...
  • Page 25: Safety Standards

    • Do not use alcohol, oil or other liquids similar to ignite or rekindle hot coals. Use only Mibrasa ecofire firelighters. ® • In the case of installing the oven in an outdoor setting, do not cover the Mibrasa oven ® with any type of protective cover or inflammable material when it is in operation or hot.
  • Page 26: General Conditions

    Mibrasa ® (III) those defects not immediately notified within the warranty period stated above, (IV) those defects or damage due to negligence not attributable to Mibrasa , or an ® accident, misuse, improper installation, mishandling or abnormal conditions of...
  • Page 28 Feeding the Senses! Factory, head office and showroom: C/ Joan Rovira i Bastons, 26 17230 Palamós (Girona) Spain +34 972 601 942 www.mibrasa.com mibrasa@mibrasa.com Version 1.5...
