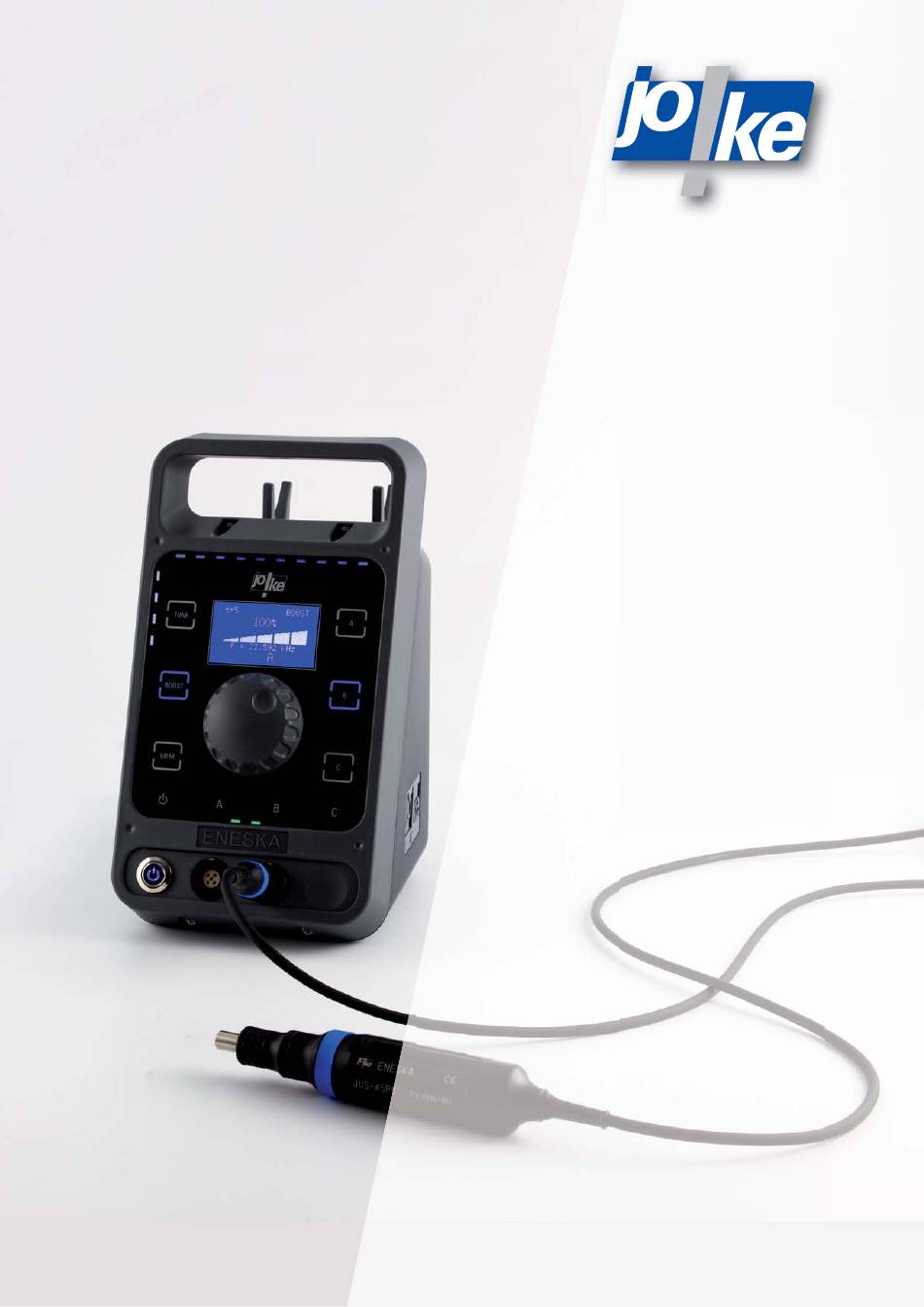

- Page 1 Operating instructions ENESKAsonic...
-
Page 3: Table Of Contents
3 Parts supplied for an ENESKAsonic ultrasonic system....4 4 Technical data for ENESKAsonic control unit......5 5 Safety. -
Page 4: Notes About These Instructions
• 1 x tool holder hole dia. 3 mm, thread M6 x 0.9 (order no. 0 006 306-E) • 1 x tool holder slit width 1 mm, thread M6 x 0.9 (order no. 0 006 310-E) • 1 x ENESKAsonic, starter set ceramic fi bre fi le NEW Super Stone, 3 items in a box (order no. 0 012 007) -
Page 5: Technical Data For Eneskasonic Control Unit
• Only use ENESKAsonic systems in technically perfect condition. • Always place the ENESKAsonic system control unit on a safe, non-slip surface and protect it from contact with liquids. • When working with the ENESKAsonic system, always wear safety glasses, gloves and hearing protection. -
Page 6: Controls And Indicators
• Immediately rectify faults in the ENESKAsonic system yourself or have them rectifi ed in ac- cordance with these instructions. • Do not make any changes, additions or modifi cations to the individual components of the ENE- SKAsonic system. • Never immerse the individual components of the ENESKAsonic system in water or other liquids. -
Page 7: The Function Of The Signal Sounds
The function of the signal sounds • After TUNE process: Device is ready to use • Settings accepted e.g. after saving 2 brief sounds • Device error or faulty operation Troubleshooting or device restart required 1 long sound Functions of the LED display strips Fig. -
Page 8: Function Of The Ventilation
Function of the ventilation Fig. 4 The ventilation serves to prevent overheating. Fresh air is supplied through the front slots. Heated air is discharged from the top of the control unit. An integrated carbon fi lter retains the moisture. Always keep the unit's ventilation slots clear to prevent damage from overheating. Calling up the menu and navigating = ESC = MENU = -----------------------------------... -
Page 9: Start Up
Start up Replace the fuse (if necessary) The control unit is factory set to 230 V and equipped with two 2 A fuses. One of these two is intended to be a spare. Two 4 A fuses are also included. Caution! Only use the following fuses: •... -
Page 10: Mounting/Changing The Tool Holder And Tool
Mounting/changing the tool holder and tool Warning! To avoid injuries caused by the tool vibrating unintentionally, only connect or change tools when the control unit is switched off . Warning! To avoid injury from tools coming loose, always tighten the tools carefully and regularly check the fi... -
Page 11: Switching The Unit On
Switching the unit on Fig. 13 Setting the language (if necessary) Step 1 Step 2 Step 3 Step 4 Call up the main menu Select “Sprache/Lan- Choose the language Back to the standard guage” and save your choice display = ESC = MENU = = ESC = Sprache = ----------------------------------- -----------------------------------... -
Page 12: Operation
Operation While you are working, the system automatically determines the required power and adjusts it accordingly. If an adapter is used, power may be lost. Switching the unit on Fig. 15 Selecting a handpiece Several handpieces can be connected to the control unit at the same time, but only one hand- piece can be used at a time. -
Page 13: Choosing The Power, Boost Function
Choosing the power, BOOST function Caution! To avoid damage to tools or the workpiece: • always start with a low power setting (1%) and then adjust the power as required, and • for high power settings (> 50%), only use tools designed for this purpose! –... -
Page 14: Stopping The Handpiece
» Immerse the tip of the protective pin briefl y in water to wet it. » Turn the power up to 100% with the rotary control knob: At about 80%, the water drop should atomise as a cloud. » If this test is not successful, the handpiece is faulty. Contact JOKE service 14 14... -
Page 15: Setting The Timer
Setting the timer As soon as a handpiece runs without load, a timer will count down and the left LED bar will show a drop-down eff ect. The handpiece will switch off as soon as the set time has elapsed. The fac- tory setting is fi... -
Page 16: Setting The Signal Tone And Leds
Setting the signal tone and LEDs Step 1 Step 2 Step 3 Step 4 Call up the main menu Select “Buzzer + LED” Make your settings Back to the standard display = ESC = MENU = = ESC = Summer+LED = ----------------------------------- ----------------------------------- - Sprache/Language... -
Page 17: Possible Errors During A Fi Rmware Update
3 / E USB stick not recognized or data error • If the update still fails, contact JOKE service. Data on the USB stick is invalid or unreadable. Update not possible (e.g. due to wrong software version) 17 17... -
Page 18: Maintenance, Care And Disposal
Maintenance, care and disposal The control unit should be serviced once a year by JOKE Service. The handpiece requires no service. All components should only be cleaned with a dry, soft cloth. Dispose of all components properly and do not put them into household waste under any circum- stances. - Page 19 • The fuse in the control unit is faulty. • Replace the fuse. • Control unit, cables, connections, • Send unit and accessories to contacts, mains switch or sockets are JOKE service for inspection or faulty. repair. Handpiece doesn’t • Contacts are faulty.
